The lens series HR Digaron-W with an image circle from 90 mm to 125 mm is the first choice for large sensors from 37x49mm up to 36x56mm or 40x54mm and for technical cameras.

HR Digaron-W special features:

  • Resolution up to 100 line pairs/mm, pixel size up to 5 μm.
  • The open aperture is free of vignetting and can be used as a working aperture.
  • Excellent imaging performance at working apertures from 5.6 to 8.
  • To avoid blurring and color fringing caused by the sensor protection glass, the calculation of the optical design includes a 2mm thick sensor glass.
  • Perfect symmetric reproduction due to a special adjustment of the optical elements.
  • Thanks to the retro focus design of the wide-angle lenses there is no additional Rodenstock HR Digaron-W Lenseslight fall-off and no color fringing on the sensors with micro lenses due to extremely oblique light incidence.
  • Enough space left for camera movement between lens and sensor even with short focal lengths.


Focal Length Aperture Image Circle for scale Recommended working f-stop Recommended scale range
32mm f/4 90mm 5.6-8 ∞ – 1/20
40mm f/4 90mm 5.6-8 ∞ – 1/10
50mm f/4 90mm 5.6-8 ∞ – 1/10
70mm f/5.6 100mm 5.6-8 ∞ – 1/10

Please click the image below for image circles and movement ranges:
Rodenstock HR Digaron-W Lenses image circle

Comparison of focal lengths:

Lens Sensor Types and sensor sizes
P40+ P45+ P65+
IQ 140 IQ 160, IQ 180
IQ 250 IQ 260, IQ 280
33x44mm 37x49mm 40x54mm
HR Digaron-S 32mm 26mm 25mm 21mm
HR Digaron-S 40mm 33mm 31mm 28mm
HR Digaron-S 50mm 41mm 39mm 33mm
HR Digaron-S 70mm 57mm 54mm 47mm

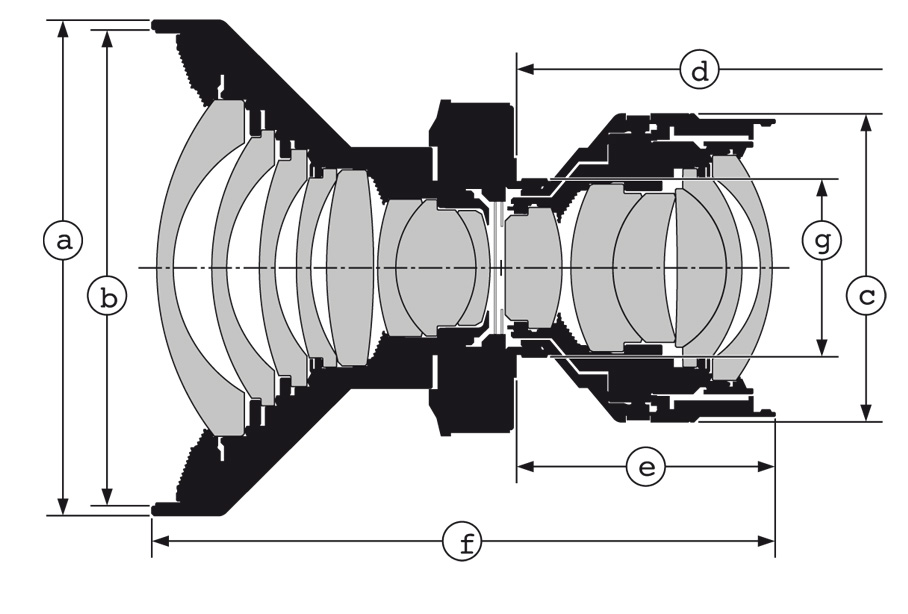

Rodenstock HR Digaron-W Lenses drawing

Focal Length Aperture Shutter Size Dimensions (mm) Weight
a b c d e f
32mm f/4 0 90 E86 56.0 69.2 46.9 113 795g
40mm f/4 0 70 E67 56.0 69.5 44.4 96.4 530g
50mm f/4 0 70 E67 51.0 76.0 44.3 98.4 550g
70mm f/5.6 0 60 E58 48.0 72.7 23.6 72.8 340g
