Cambo Actus RF
Added to basket!
Description:

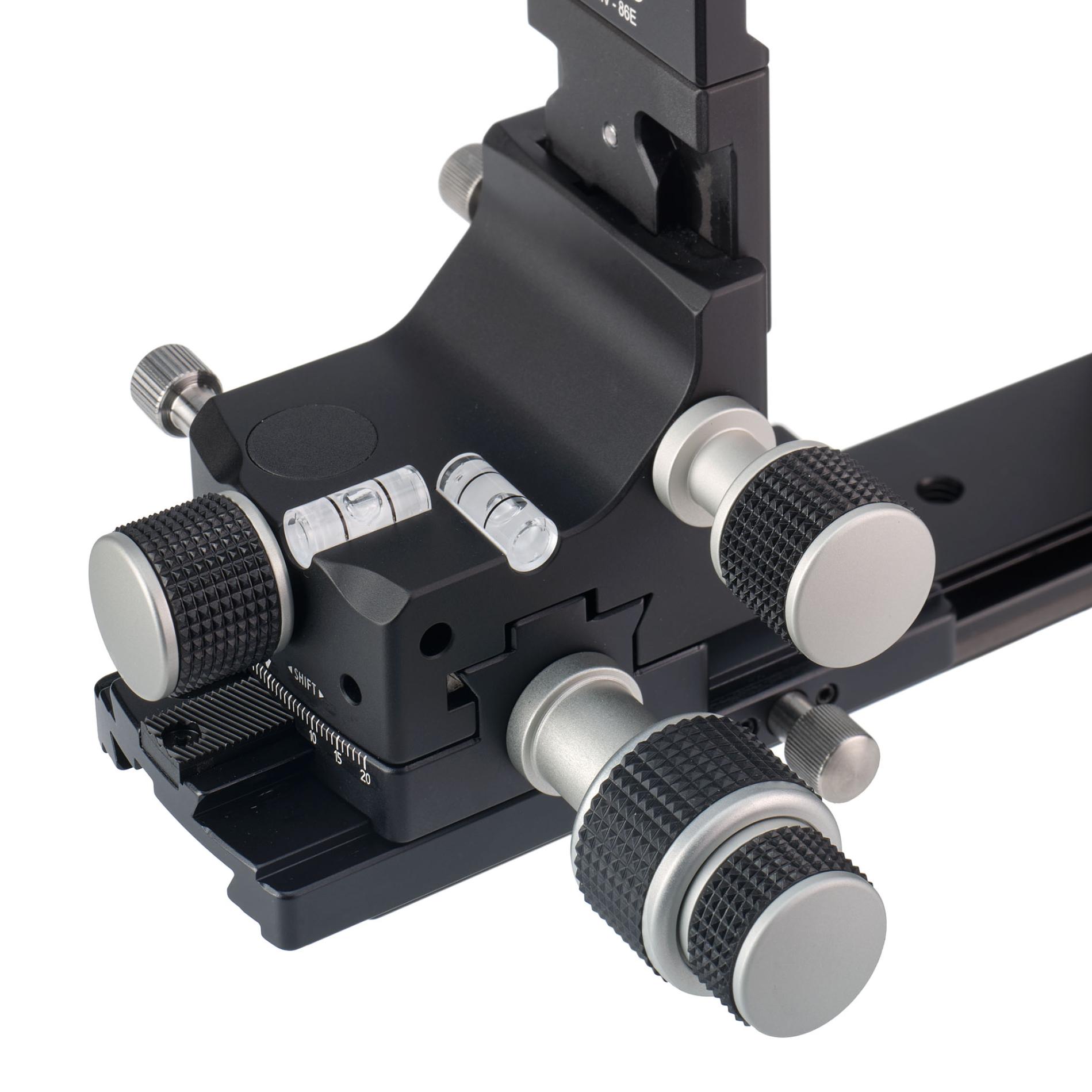

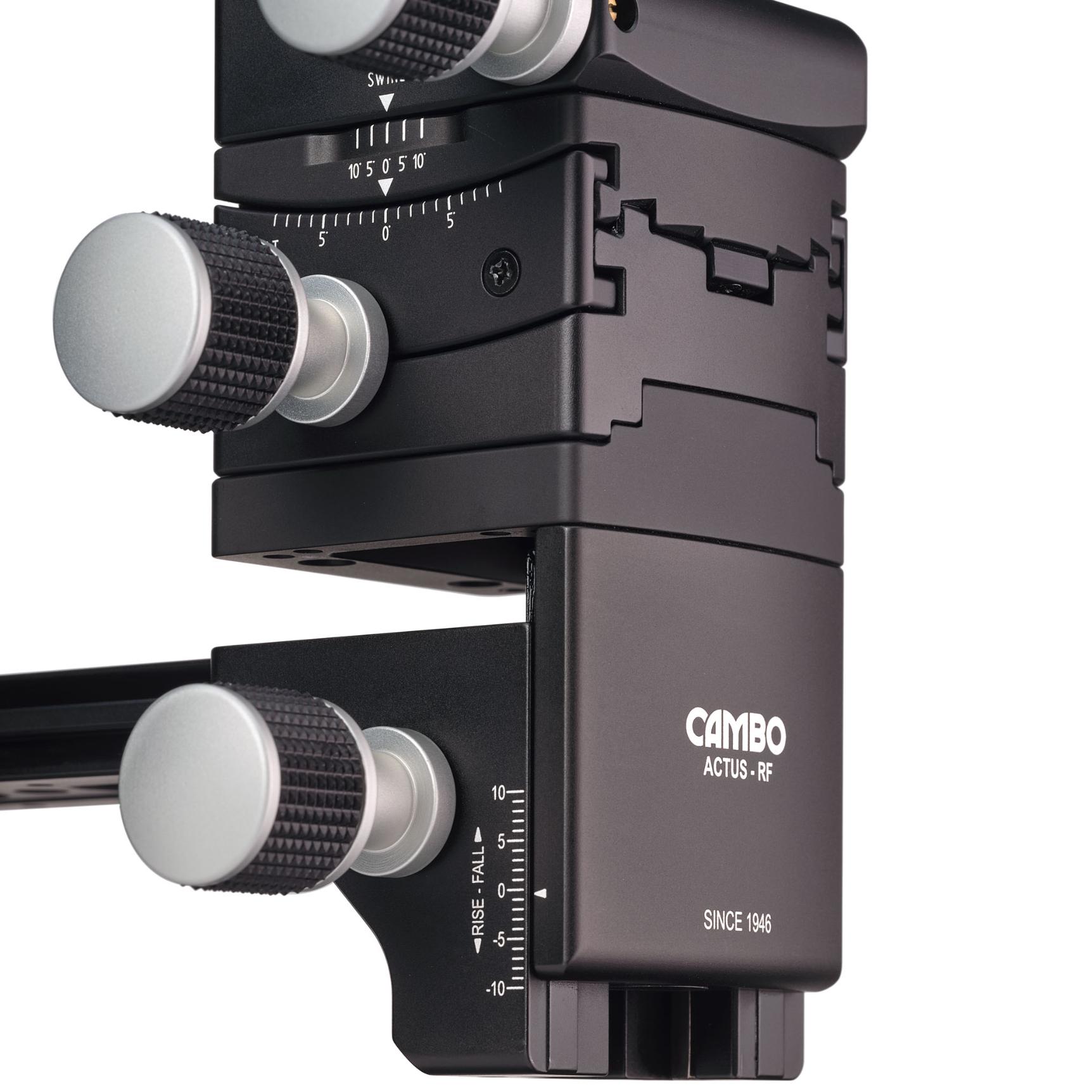

Every Cambo Actus offers Tilt and Swing in the front standard whereas Rise/Fall and Shift are at the rear. The new Actus-RF introduces front Rise/Fall. All within the same compact factor and light weight design.
Product Code:
CAMACTRF
Cambo Actus RF
Options:


The additional movements not only make it the perfect tool when a large amount of Rise/Fall is needed in the field, but also an attractive option for photographers who combine studio and on-location work. Applying parallel movement at the front and rear add up to a maximum amount of 25mm of Rise or 22mm of Fall. Very convenient when shooting still-life, whereas the camera is still small enough to pack for a job outside of the studio.

Compared to the Actus-B and -G the new Actus-RF has a slightly higher front standard. It therefore requires Actus-MV (ACMV designation) bayonet holders

Available for the following:

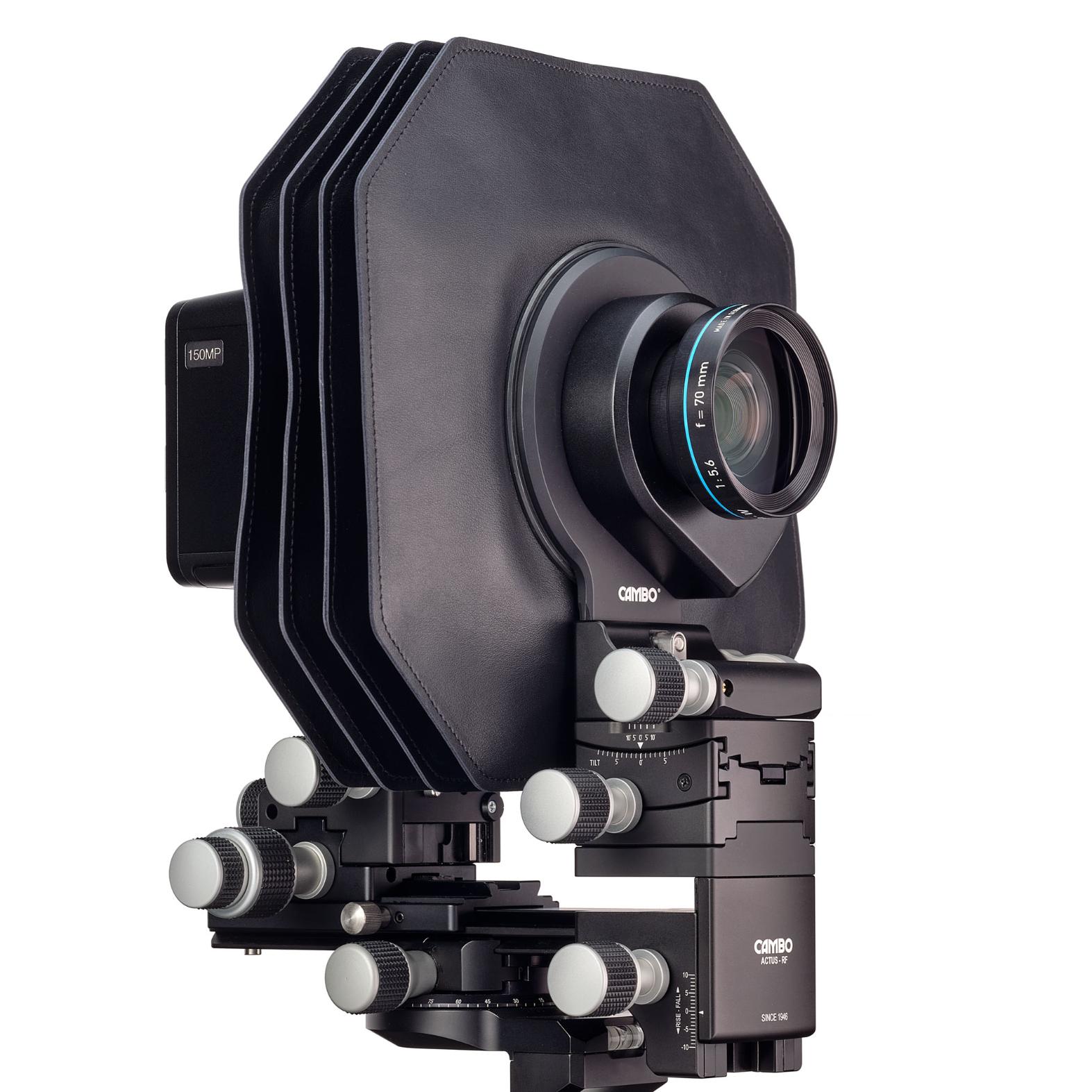

Phase One (ACDB-250 Bellows and Phase One ACDB-990 rotating rear adapter included)

Hasselblad V (ACDB-250 Bellows and Phase One ACDB-991 rotating rear adapter included)

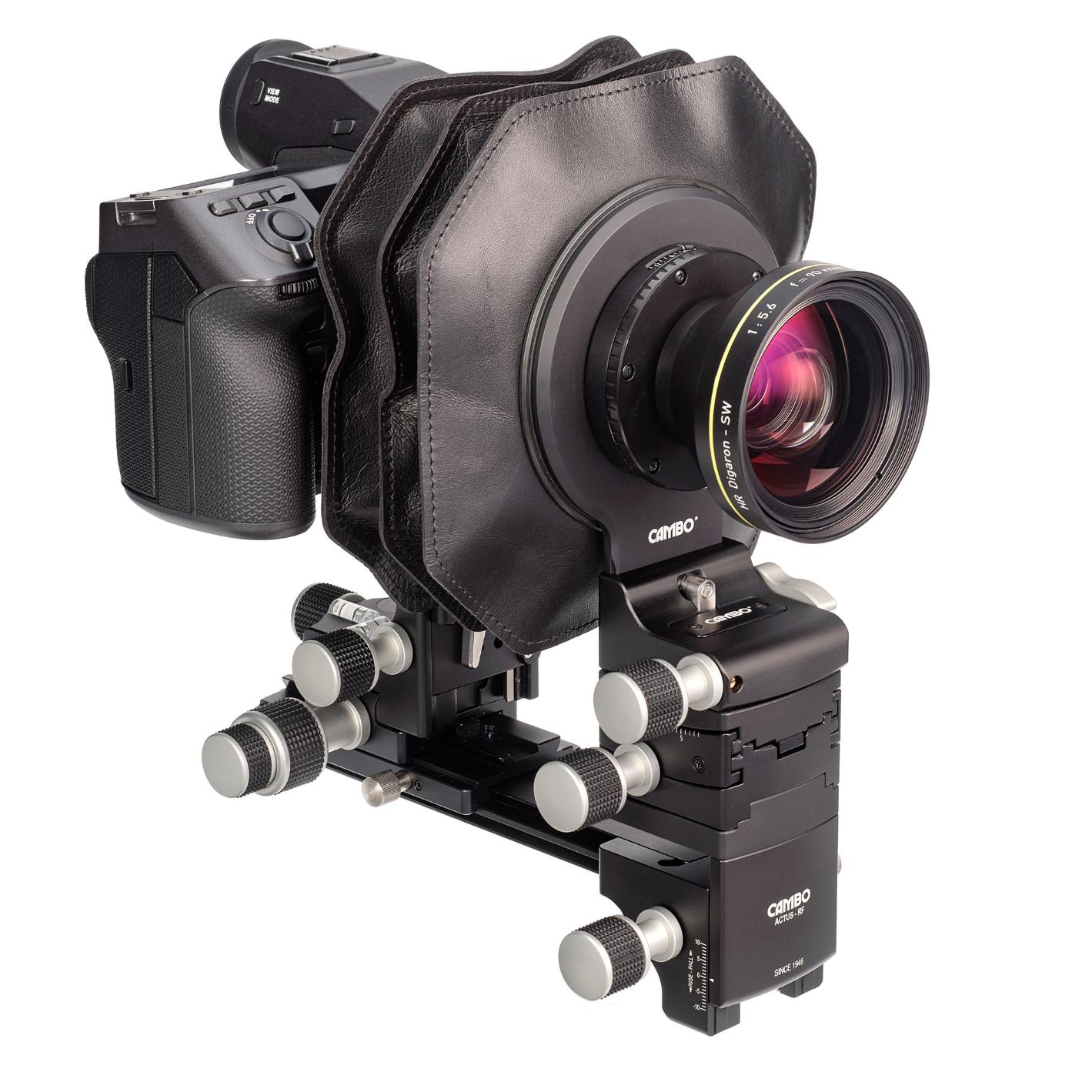

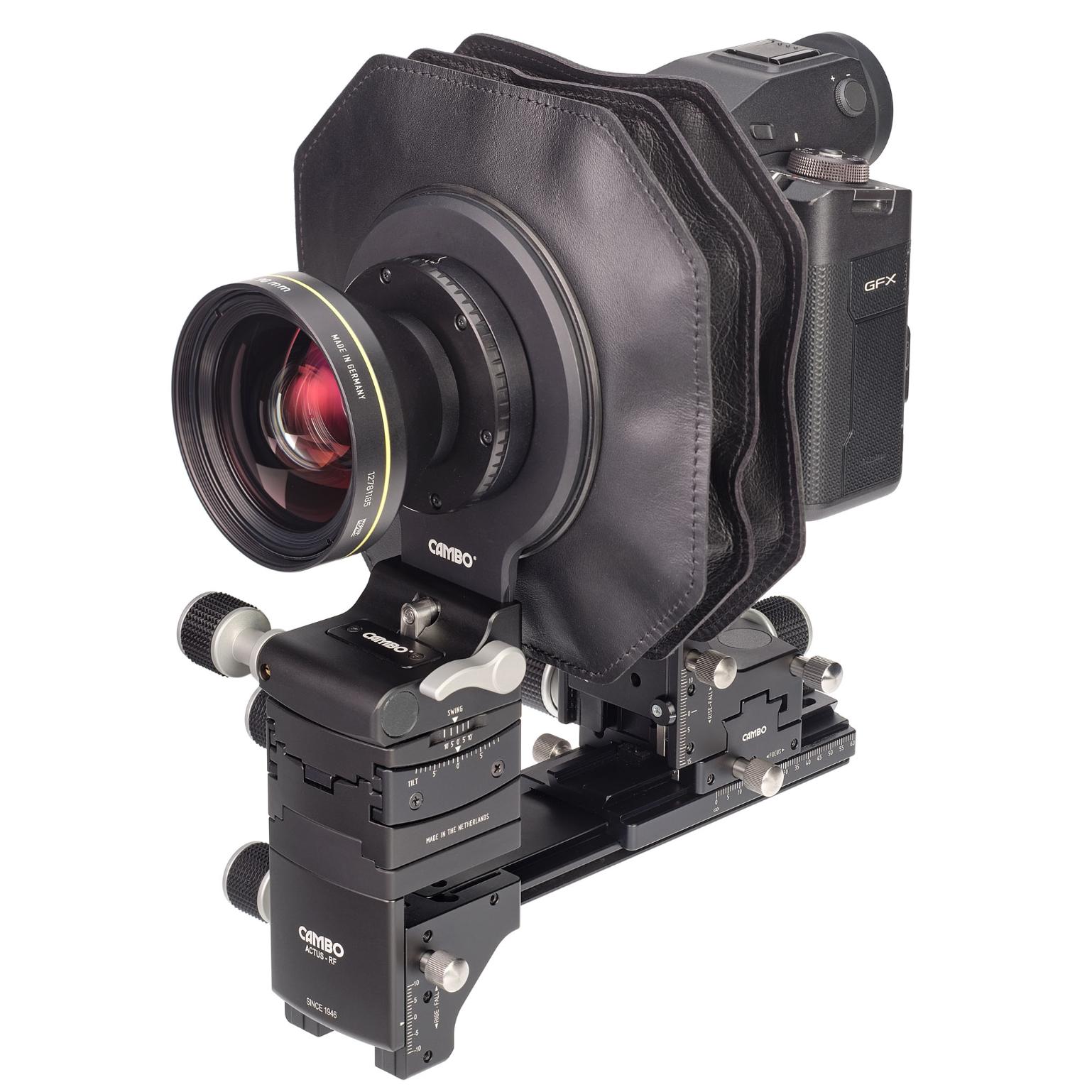

GFX (ACDB-210 Bellows and ACMV-862 rear adapter included)

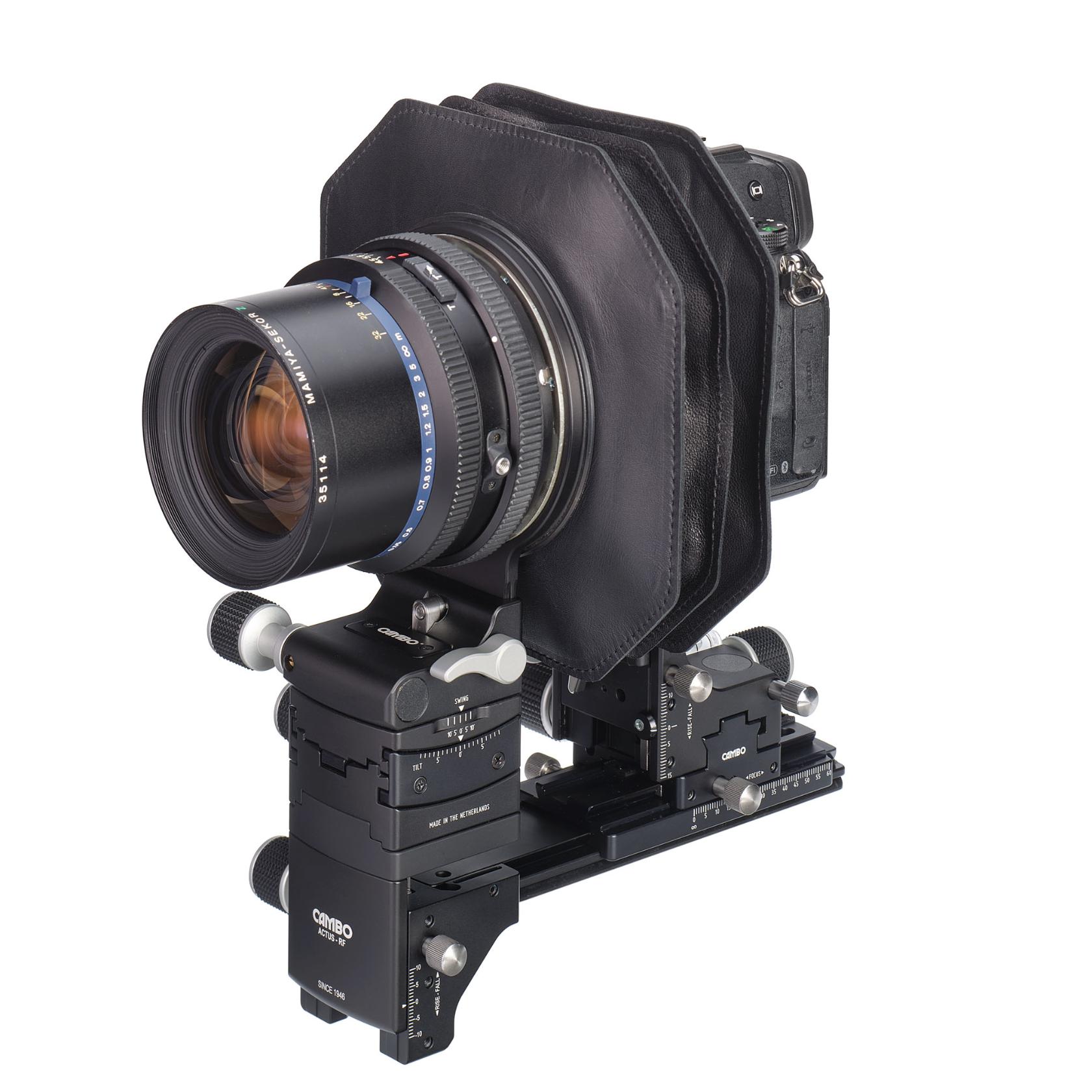

Mirrorless (ACDB-210 Bellows and ACMV-86E rear adapter included, bayonet not included)




Specs:

Dimensions: 152 x 115x194mm

Weight: 1350 grams

Front Swing: 360°

Front Tilt: 19° (+10/-9)

Rear Vertical Shift: 24 mm (12/15)

Front Vertical Shift: 20 mm (10/10)

Focus Travel (GFX Sensor): 174mm

Colour: Black
