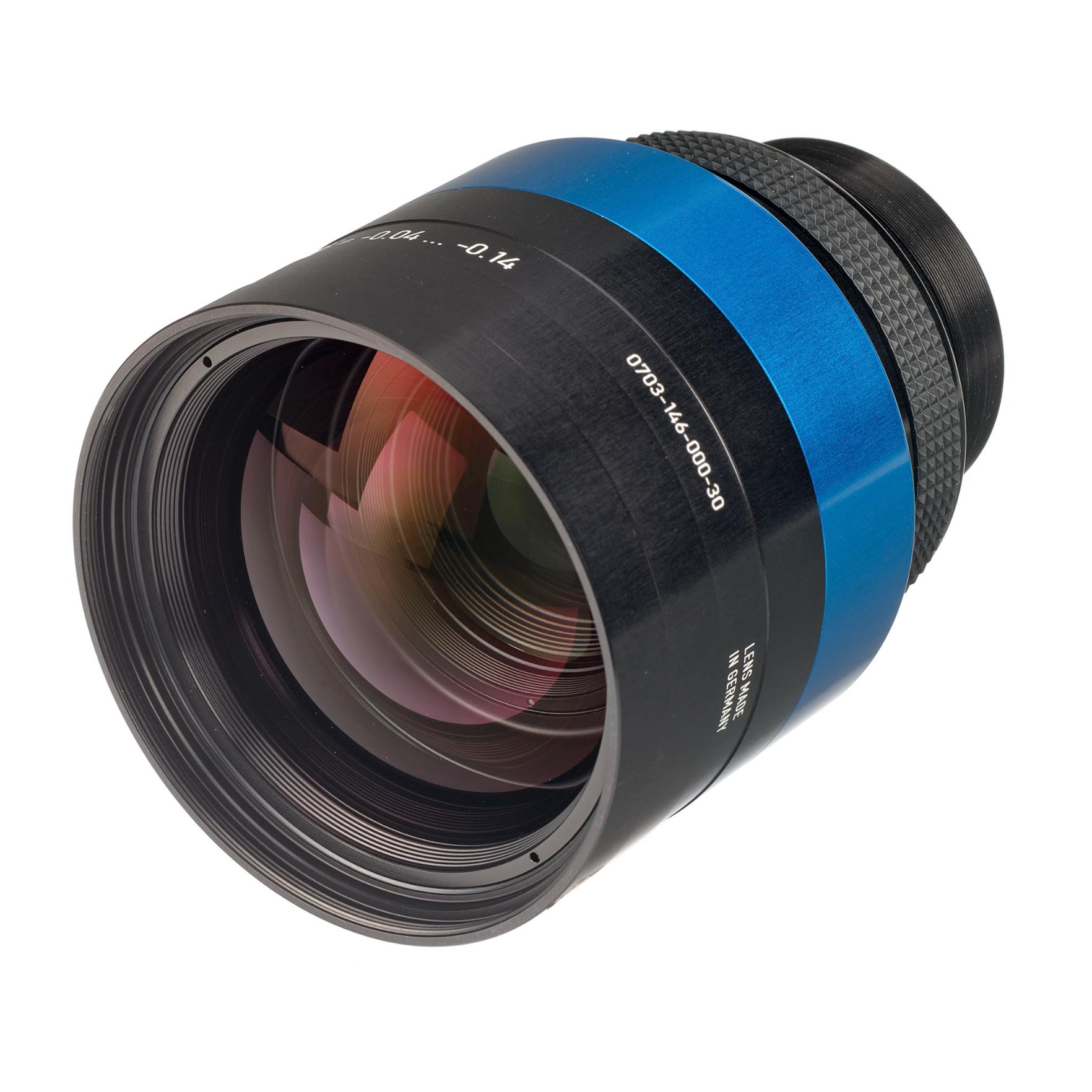

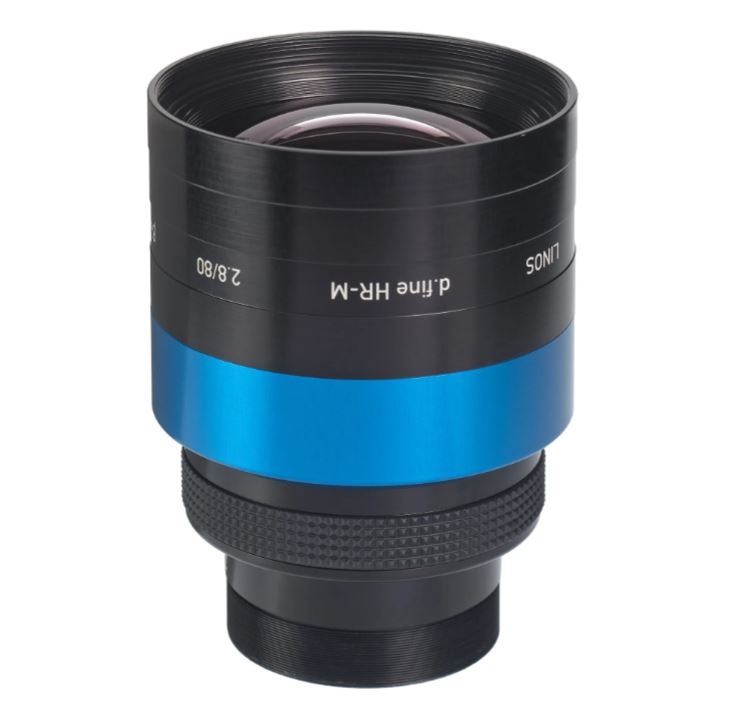

Linos DFine HR-M 2.8/80mm
Added to basket!
Description:
The Linos dFine 2.8/80 is available in two versions. Each optimised for its own magnification range. The dFine lenses have already been designed to meet the requirements of sensors with a pixel size as small as 2.5 um.
The 0.2 version is a lens that enables Fadgi* digitisation of large film formats (4x5" - 8x10"). The 0.09 version is the lens of choice for larger originals.
Product Code:
Linos DFine HR-M 2.8/80mm
Options:


* Fadgi compliant, for more information click here: - Federal Agencies Digital Guidelines Initiative.

Available in 2 versions and will require a WHF-6 Lens Plate to fit Cambo RBC 400 & 410 series Repro Camera as well as the RPM Helical Focusing mounts.

Specifications:

dFine 2.8/80-0.09 optimised for 47-160cm diagonals

dFine 2.8/80-0.2 optimised for 15-27cm diagonals

M52 Lens Mount - Cambo WHF-6

Filter thread M77

Weight 800g

Image circle 62.4mm
