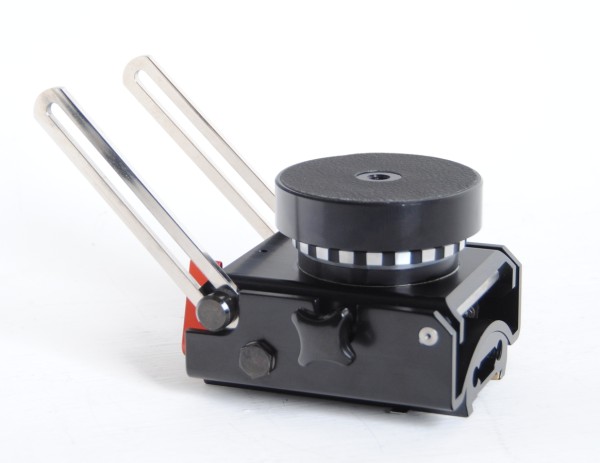

Linhof Levelling Pan / Tilt Head Kardan Rail Fit
Added to basket!
Linhof Levelling Pan / Tilt Head has a unique fitting that allows the rail of the Kardan series cameras to slide on and lock. This eliminates the camera being held by one thread.
Top plates are available with threads 3/8th or 1/4 for use of other cameras on this head.
Product Code:
Linhof Levelling Pan / Tilt Head Kardan Rail Fit
Base dia. 77 mm
Height 75 mm
Weight 1400 g
Base dia. 90 mm
Height 90 mm
Weight 1490 g

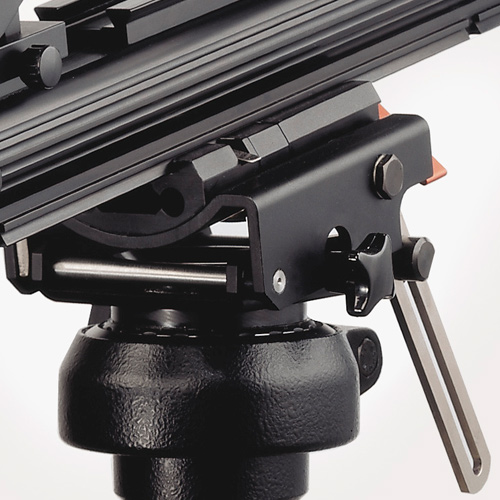

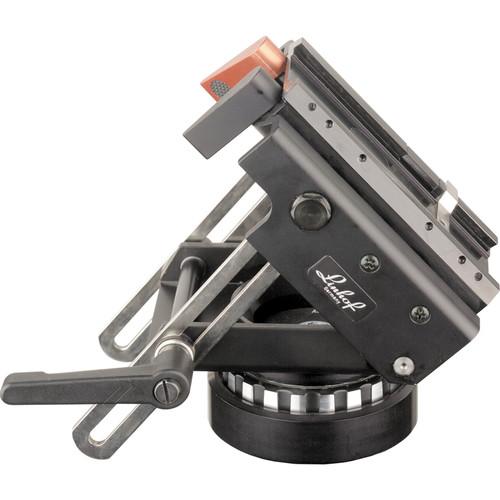

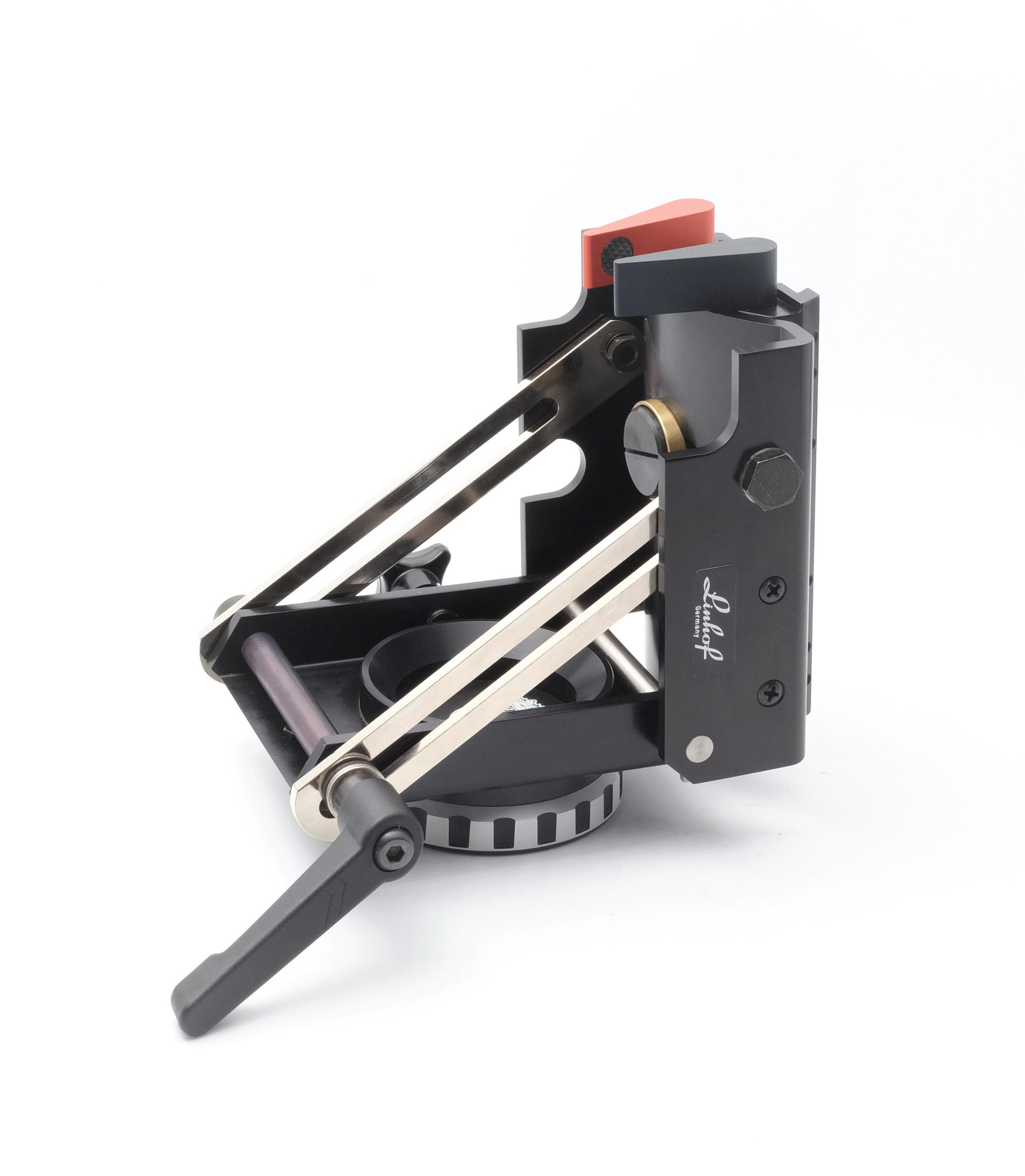

Highly compact and extremely sturdy levelling pan/tilt head with
integrated dovetail quick-lock base permitting direct insertion
of Linhof Kardan cameras which slide back and forth to control

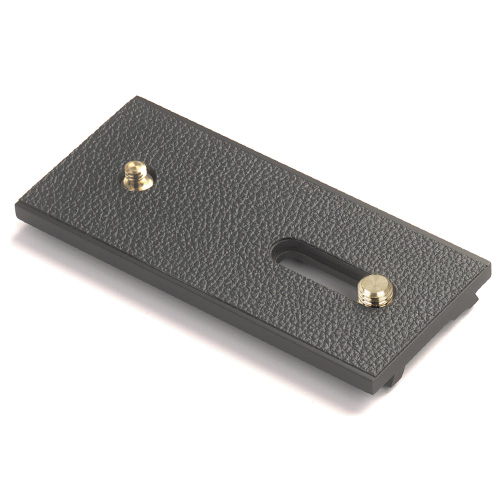

taking ratio without moving the tripod. For other equipment, a
quick-change plate is available. Dual locking struts anchor the
camera positively at any angle from 0 to over 90°. Oversized
locking elements for lateral levelling (15° to either side) and pan
rotation. 3/8“ tripod thread.

Available with a 77mm base for the Linhof Standard Tripod Top plate    or with a 90mm base for the Linhof Vintage and Heavy Duty Pro Tripod  which clamps the complete diameter of the base for secure holding.
