WRA 105mm HR Float Macro Lens | Cambo PLEASE ENQUIRE
Added to basket!
Description:

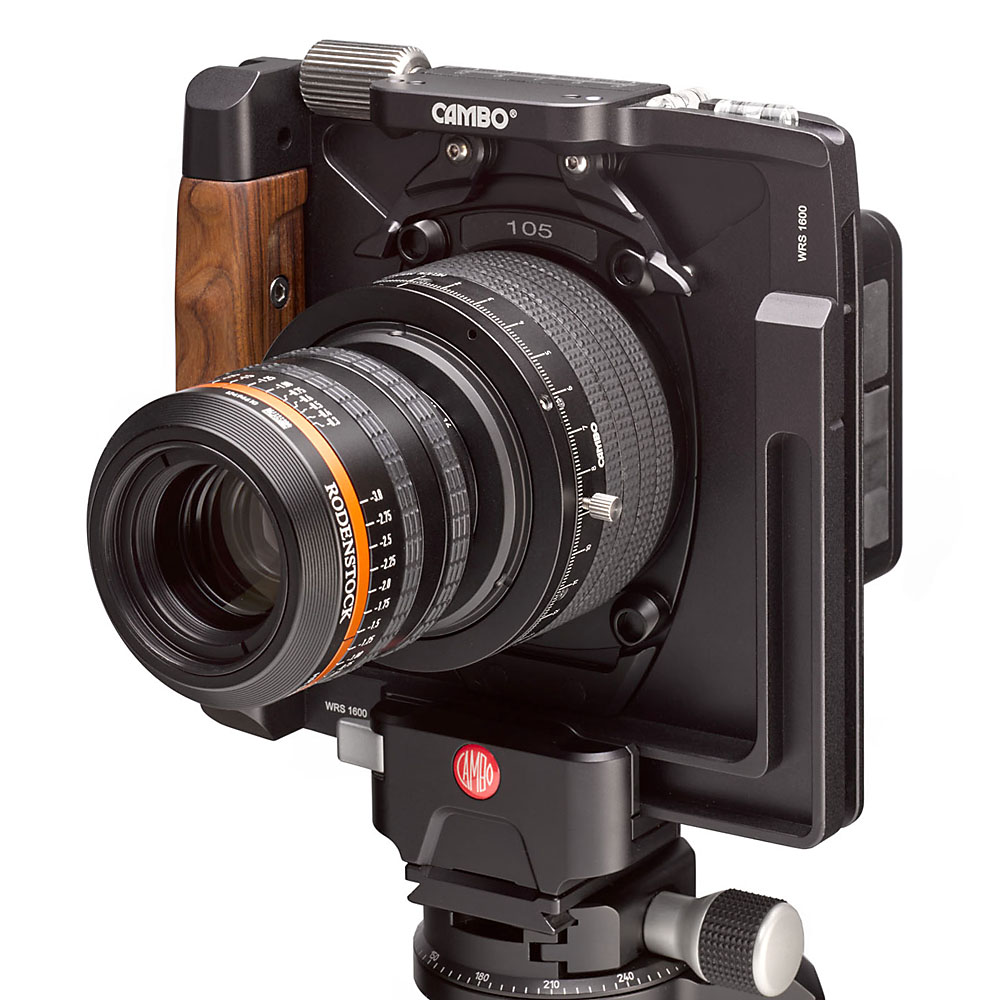

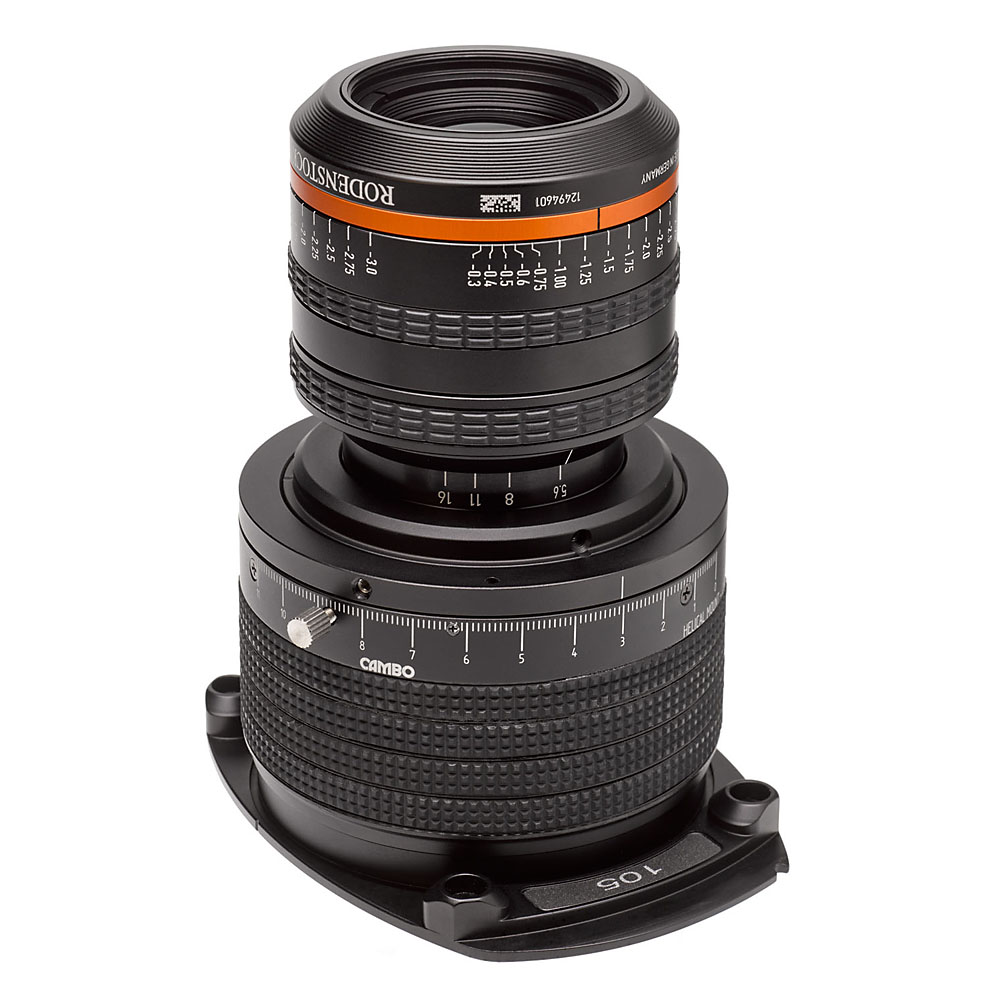

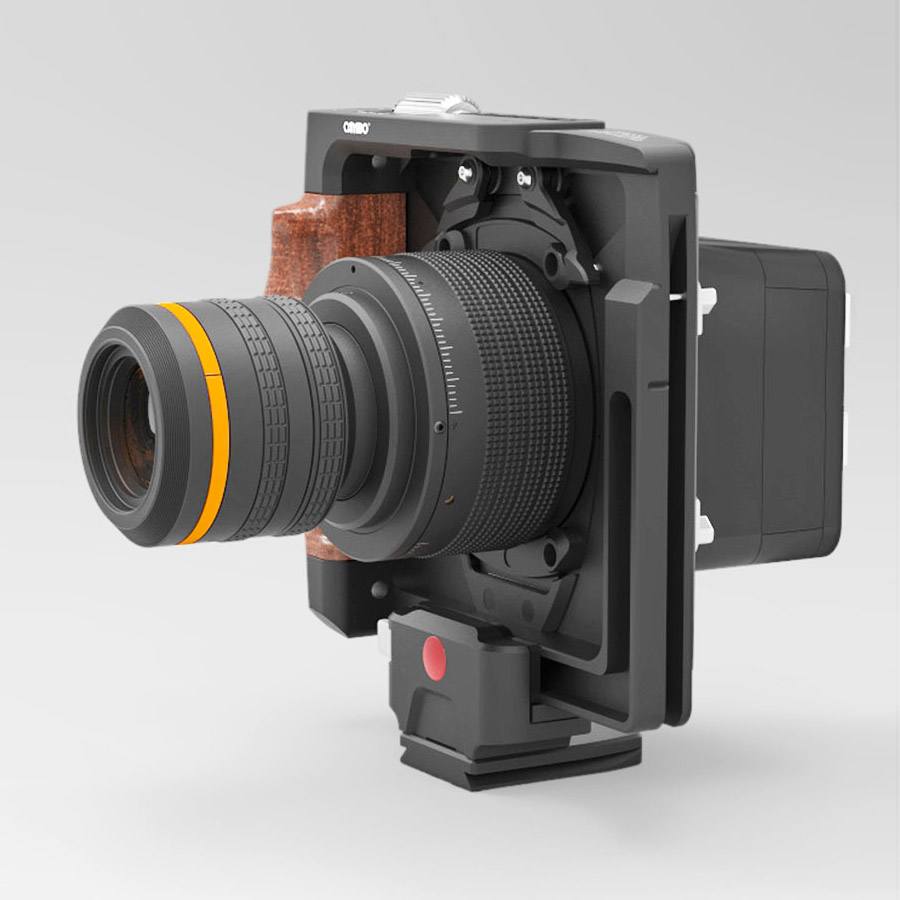

The WRA-5105 is a lens dedicated to the Cambo WRS/WRC in combination with a digital back with built-in Electronic Shutter. This lens is permanently attached to a WRS lens panel and has a focal length of 105 mm. This makes it an ideal companion for dedicated studio and primarily macro photography.
Cambo WRA-5105 is based on the Rodenstock HR-Macro lens with a focal length of 105mm. It is optimised for magnifications between 1:4 and 4:1, with a floating element for the best performance at the set magnification.
The design of this lens is built of 8 elements in 4 groups.
Product Code:
CAMWRA5105
WRA 105mm HR Float Macro Lens | Cambo PLEASE ENQUIRE



Please note that the aperture is manual and there are no electronical connections available nor needed. This lens has no shutter.

 The default focusing range is 25mm from infinity which results in a ratio upto 1:4

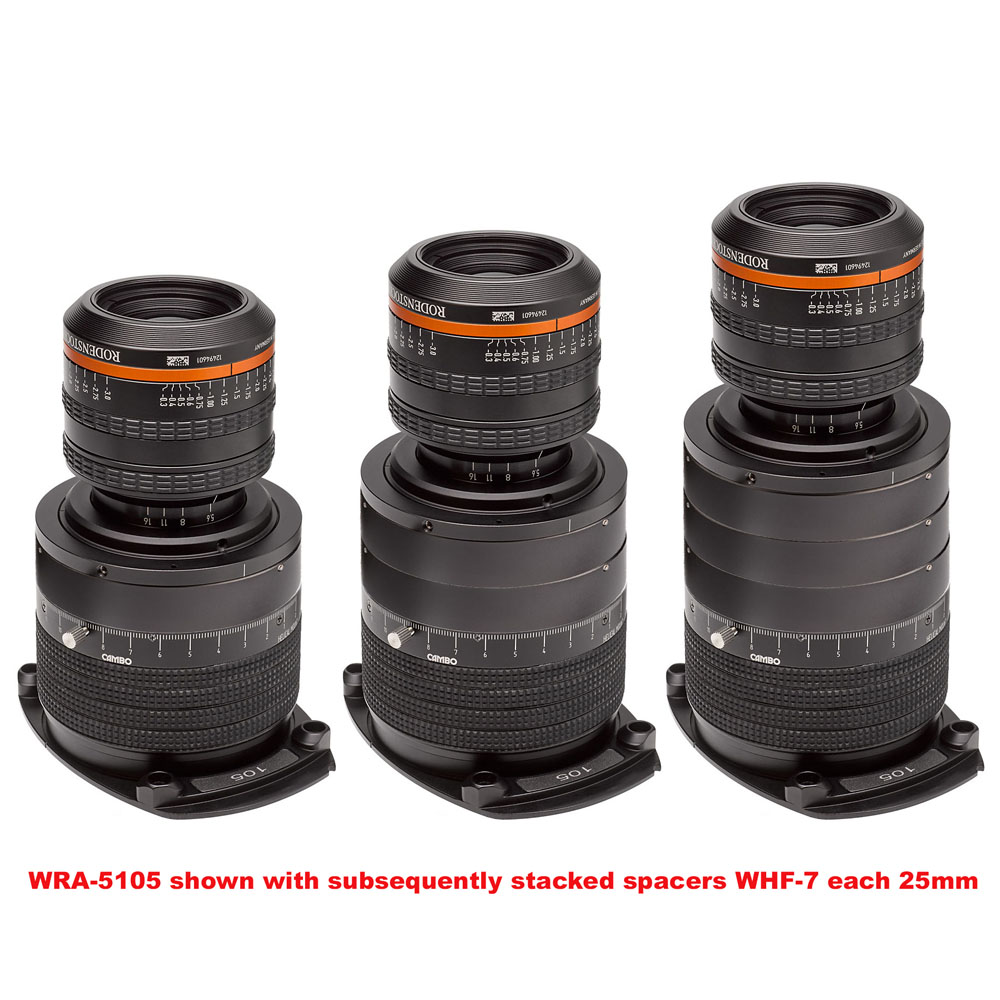

  • with an added extension of 25mm, the focus range is between 1:4 up to 1:2
  • with an added extension of 50mm, the focus range is between 1:2 up to 1:1,14
  • with an added extension of 75mm, the focus range is between 1:1,14 up to 1:1



focal length: 105mm

aperture range: f 5.6-16 (manual)

lens construction: 8 elements/ 4 groups - 1 floating group

coating: multi coating

front filter thread: m40.5

size L x W H: 125 x 80 x 107 (includes WRE-panel)

weight: 780g

image circle: 82mm

build for: Cambo WRC / WRS

works in combination with: Digital Backs with built-in E-Shutter
