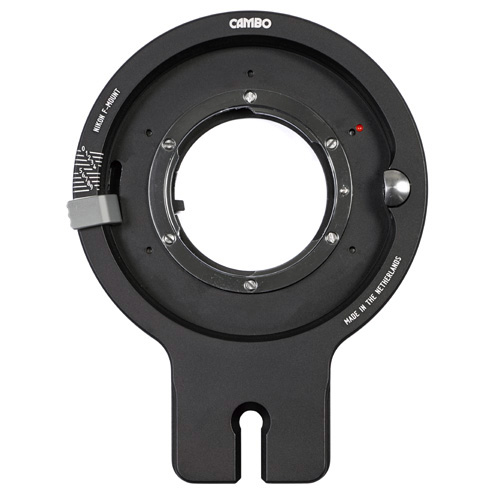

Nikon F Front Lens Plate ACB-NF | Cambo
Added to basket!

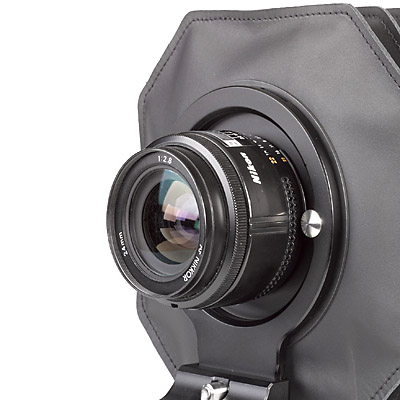

This lensplate allows you to mount lenses fitted with a Nikon F bayonet, in combination with the ACTUS view camera.
The PC-19 cannot be used on the ACB-NF Nikon F lens plate. Although the plate has a lever to open and close the aperture on lenses that don’t have an aperture ring, it is not suitable for more recent Nikon lenses. The mechanism engages with a small lever at the back of (older) Nikon lenses that used to be there to close the aperture for depth-of-field control. On lenses like the PC-19 this is controlled electronically.
Product Code:
Nikon F Front Lens Plate ACB-NF | Cambo

Please note: The Cambo ACB-NF only works with mirrorless camera bodies for setting at infinity (and closer).


  • Total height: 130mm
  • Width: 97mm
  • Weight: 120g
  • Aperture Control: Manual on adapter for lens with d.o.f lever
