Cambo Actus MV Body Only
Added to basket!
Description:
Maximum Versatility. The Cambo Actus-MV is a fully adjustable view camera that is still compact enough to be your companion for use in the field. It works equally well with digital backs, mirrorless camera bodies and DSLRs.
Bellows and mount not included.
Product Code:
CAMMV
Cambo Actus MV Body Only

Product details:

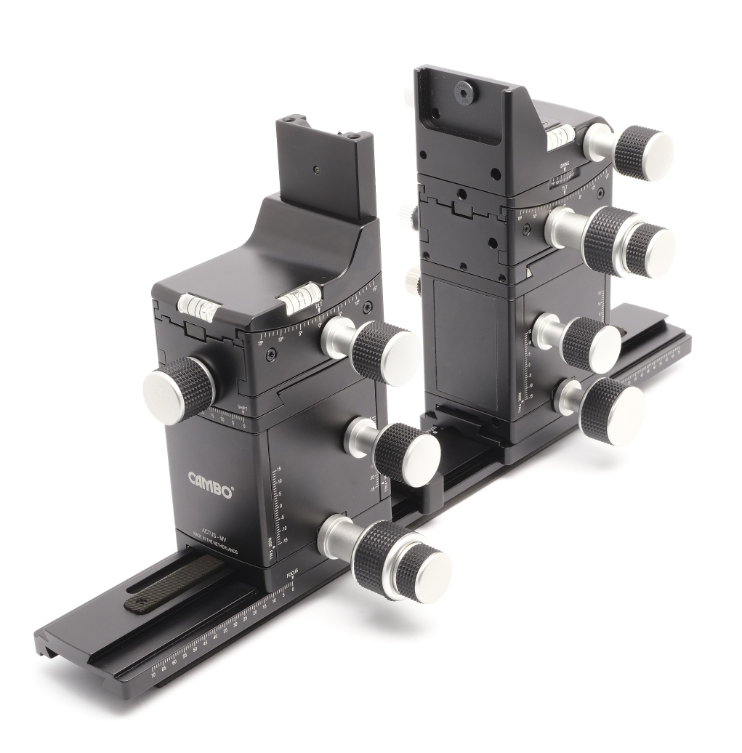

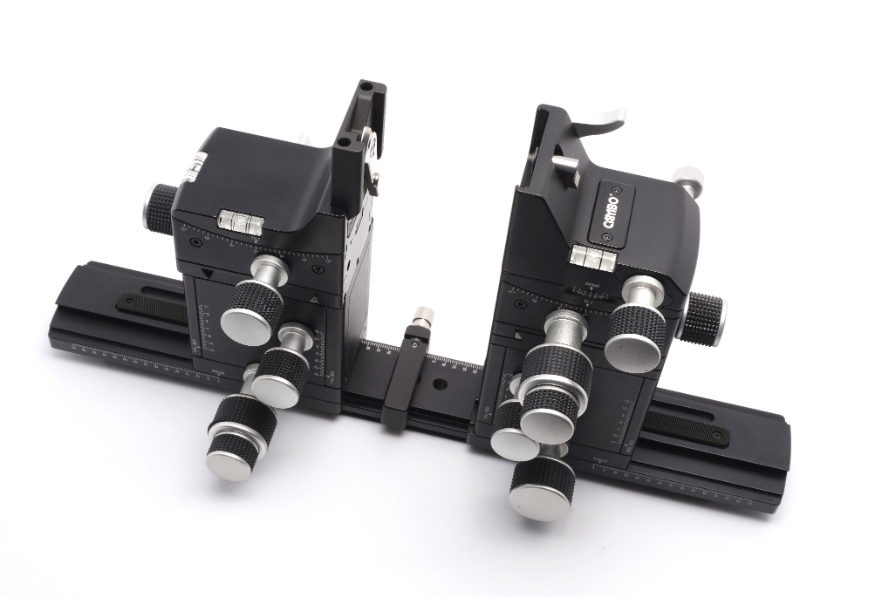

A solid foundation in which all camera movements are integrated. To facilitate packing, front and rear standard can be separated from the optical bench without requiring tools.

The rear standard can be completed with a choice of adapters for virtually every digital back available. To enable the use of a camera body as your digital back, Cambo offer bayonets for most DSLR and Mirrorless cameras on the market.

At the front standard the Actus-MV accepts all lens plates from the vast Actus range. Including medium format adapters, lens plates for X-Shutter lenses and (legacy) leaf shutter lenses. Furthermore, Cambo offer the steadily expanding range of Actar lenses.

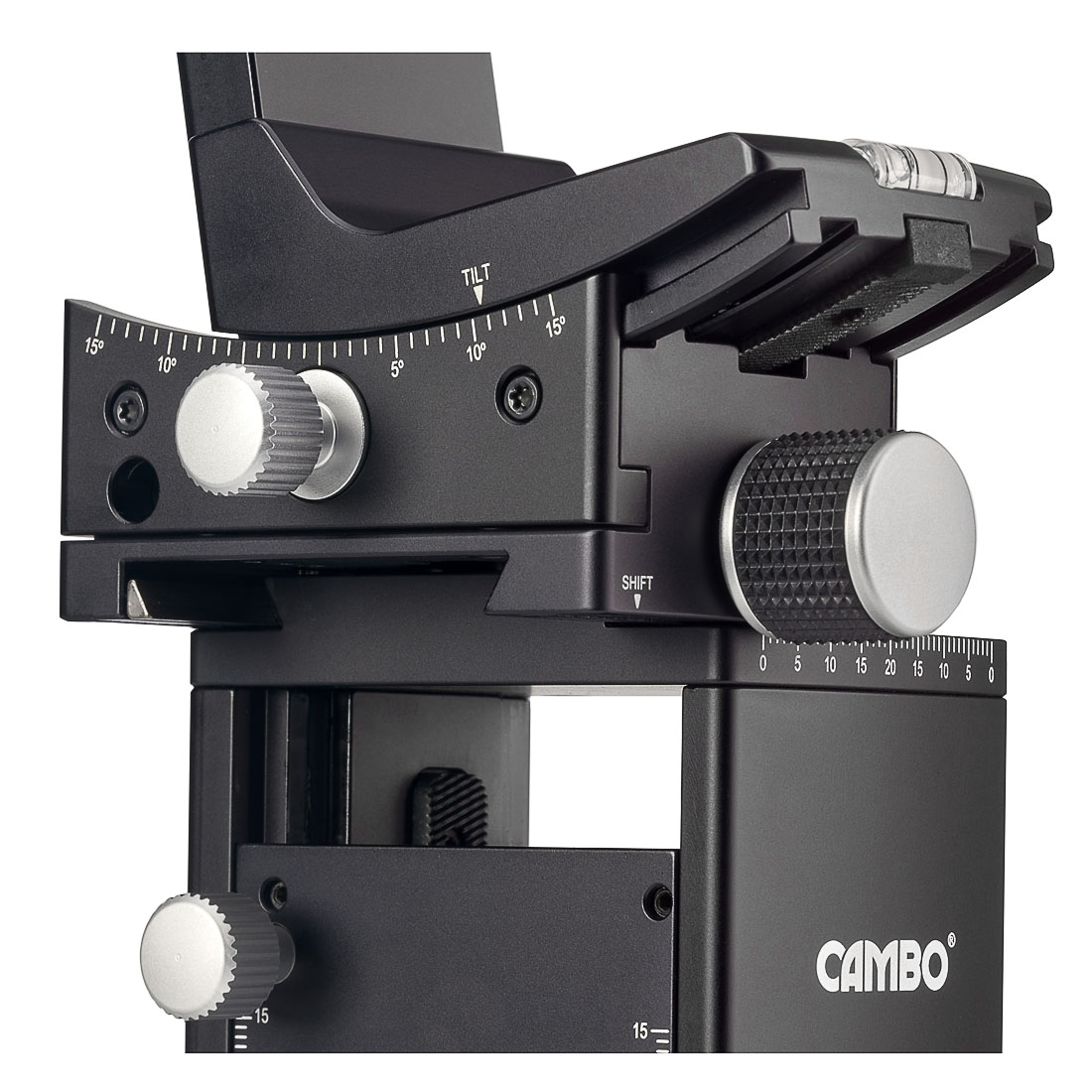

Geared camera movements

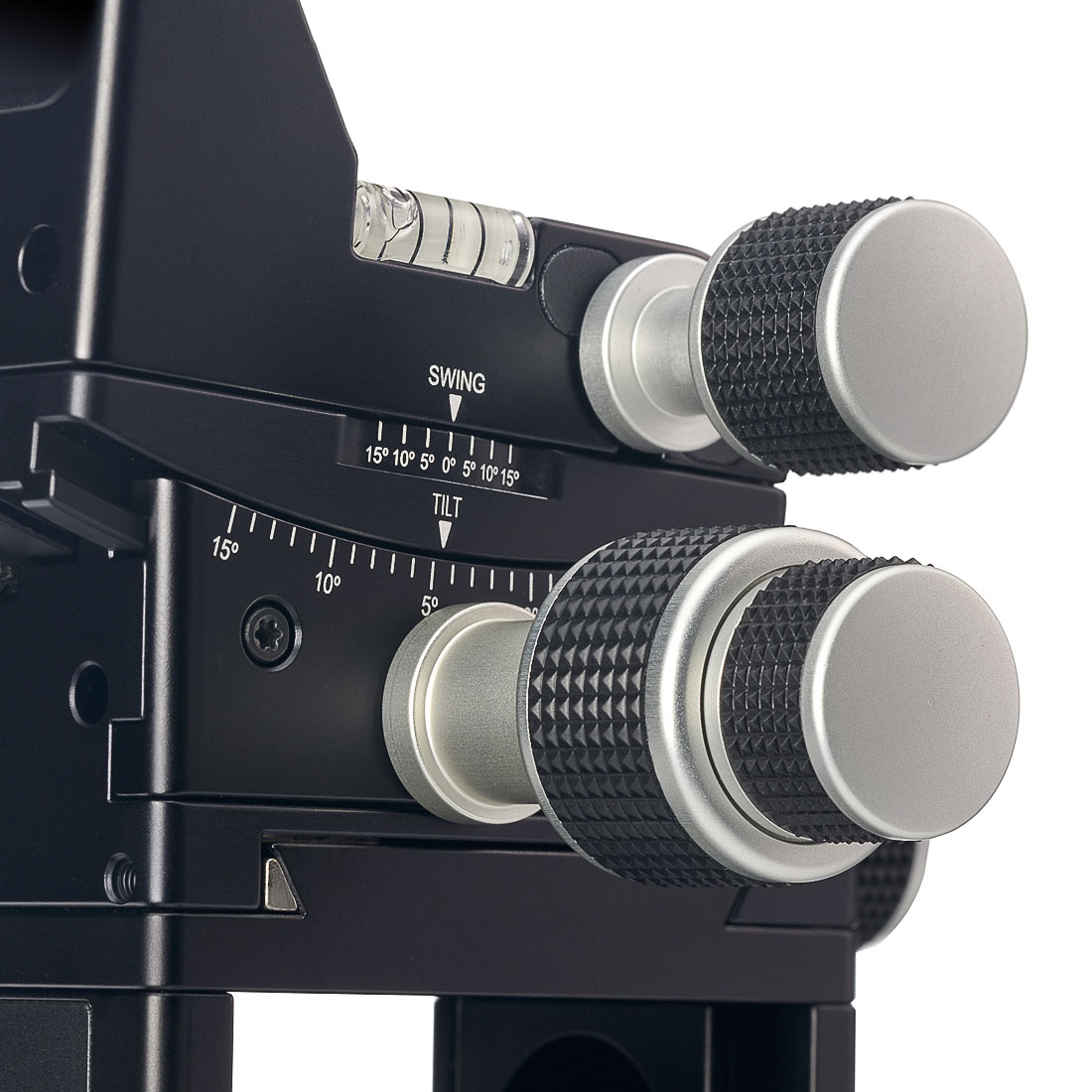

Front standard tilt 15º/15º (dual ratio gear)

Rear standard tilt 15º/15º

Front standard swing 30º/30º

Front and Rear Standard Horizontal shift 20mm/20mm

Rear Standard Rise/Fall 15mm/15mm

Front Standard  Rise/Fall 15mm/15mm

Weight Compensation on Rise/Fall (front & rear)

Friction knobs on camera movements

Dual ratio gear for fine focussing



Cambo ACTUS-MV Specifications:

Tilt: 15º / 15º  front and rear

Swing: 30º / 30º  front

Rise/Fall: 15mm/15mm front and rear

Side Shift: 20mm/20mm front and rear

Weight : 2.8 kg (frames included)

Max. extension (standard rail and bellows): 298mm (2x 70mm geared / 158mm telescopic)

Note: Max. extension is measured from lens mount to bayonet mount.

Note: The distance from Bayonet to Sensor is different for each camera model series and can be added to the max. extension
