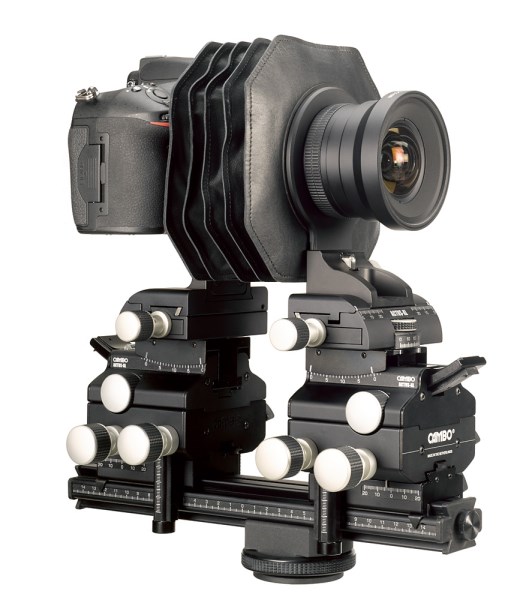

Cambo Actus-XL Technical Camera (Digital)
Added to basket!
Description:
Cambo Actus-XL Technical Camera (Digital) includes ACTUS-XL base and 35-Kit (Bayonet Frame with AC-214)
Product Code:
CAMACXL35
Cambo Actus-XL Technical Camera (Digital)

The default 300mm monorail is suitable for short, medium and long focal length lenses. A separate focus slider and fine focusing racks make it not only quick but very easy and precise to focus.

The compatibility with the Actus Mini platform allows the use of a variety of lens adaptors in combination with several camera bodies. These system bodies are mounted with their bayonets to the upright holder, which can rotate between landscape and portrait position within a second. This can be done without having to remove the camera body or bellows.

A basic configuration of a Cambo ACTUS-XL-35 consists of a 300 mm monorail, front assembly without lensplate, a rear frame for an optional camera bayonet and 250mm long bellows.

          Cambo ACTUS-XL-35 Specifications

  • Size L / W / H: 31 x 14.5 x 34 cm
  • Weight: 4800 grams
  • Swing: +20/-20 degrees both front and rear
  • Tilt: +20/-20 degrees both front and rear
  • Shift Vertical: 40mm (20/20) both front and rear
  • Shift Horizontal: 50mm (25/25) both front and rear
  • Max. Extension (lensplate to sensor): up to 185mm (Sony E Mount)
  •                                                       up to 205mm (Nikon F Mount)
  •                                                       up to 201mm (Canon EOS Mount)
