Focus Stacking Rail | Cambo
Added to basket!
Description:

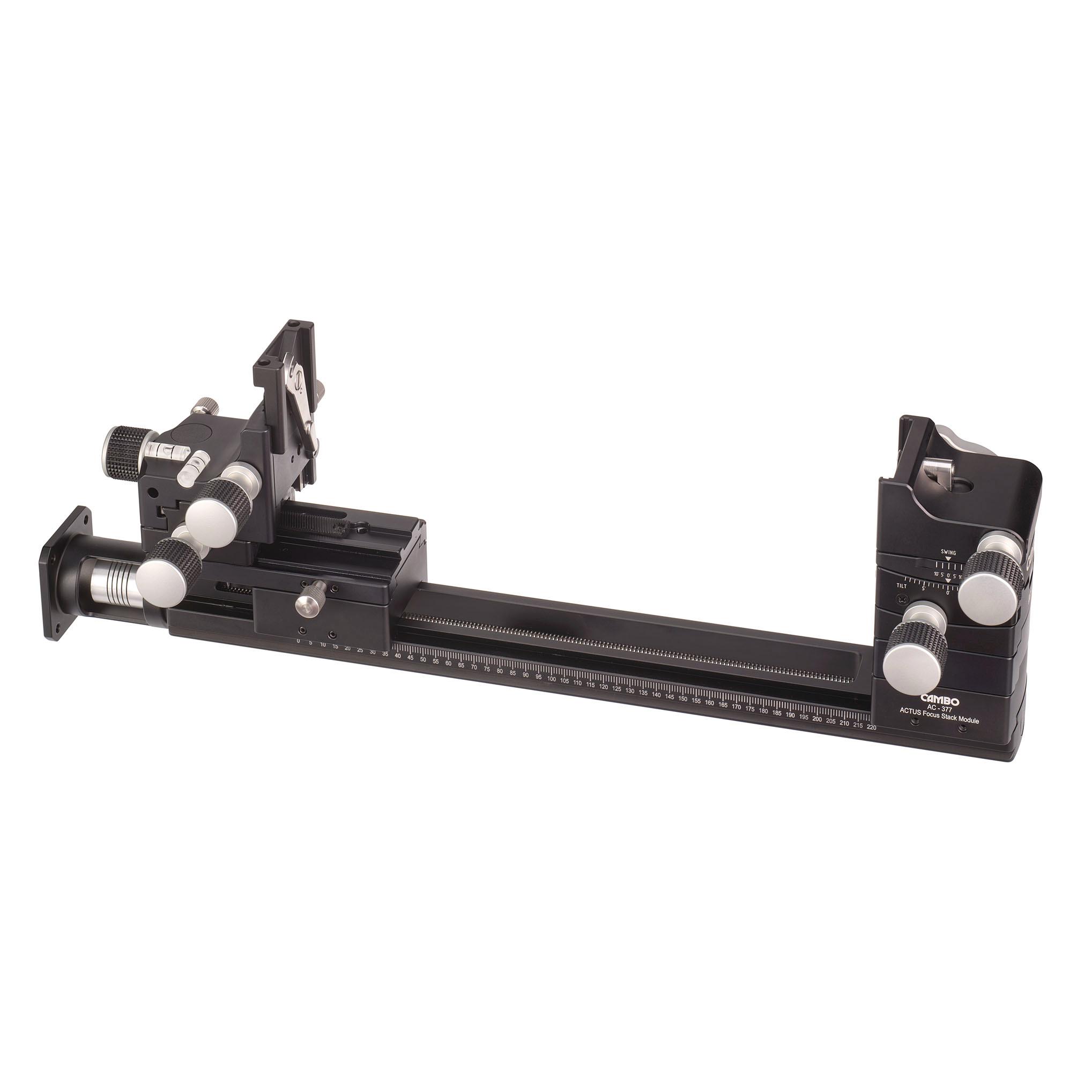

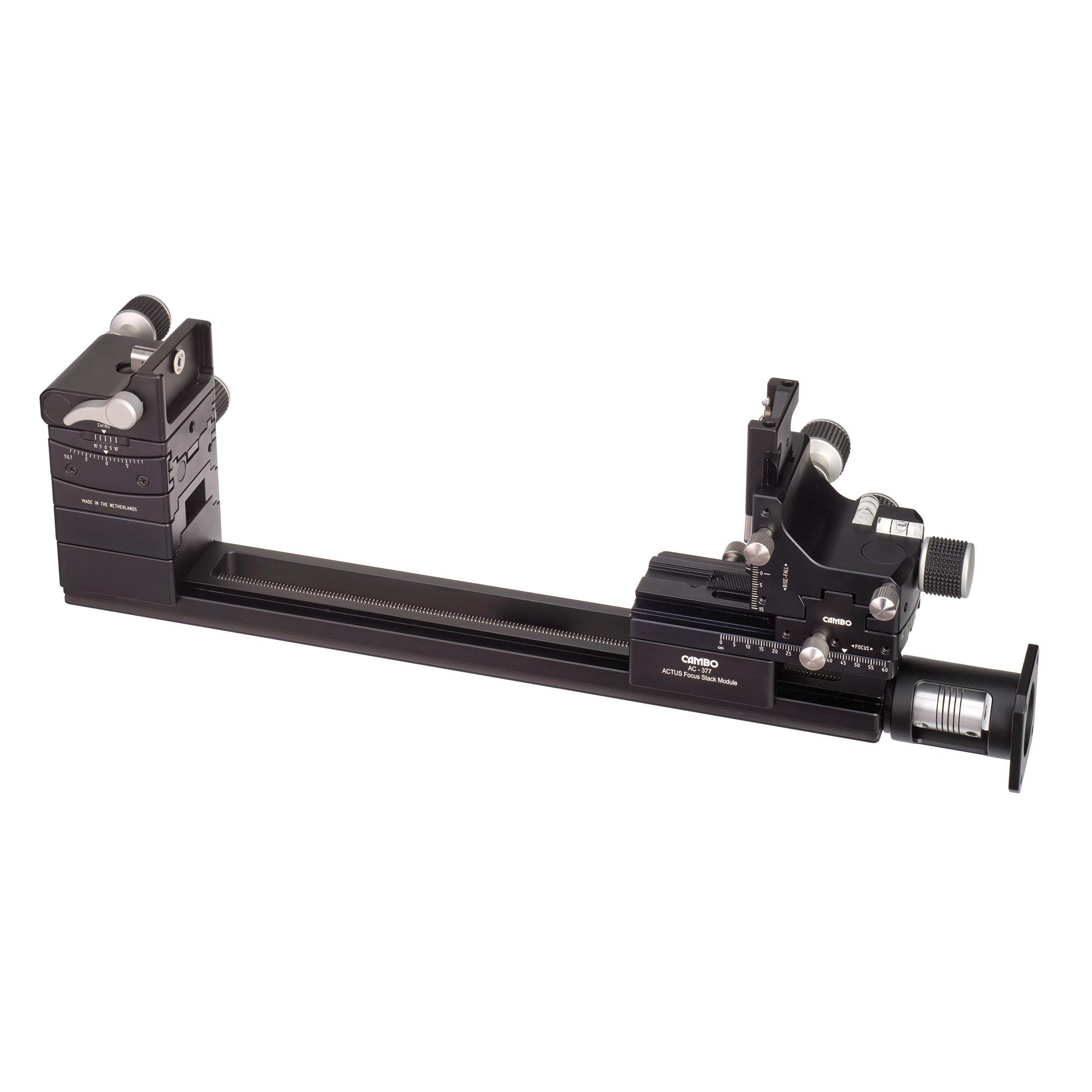

Make a motorised stacking camera out of your Cambo Actus. This focus rail enables the use of a Cognisys or similar stepper motor (not included) to use the Actus for focus stacking.
Compatible with Actus-B, Actus-G and Actus-DB2
Product Code:
CAMAC377
Focus Stacking Rail | Cambo


More Info:

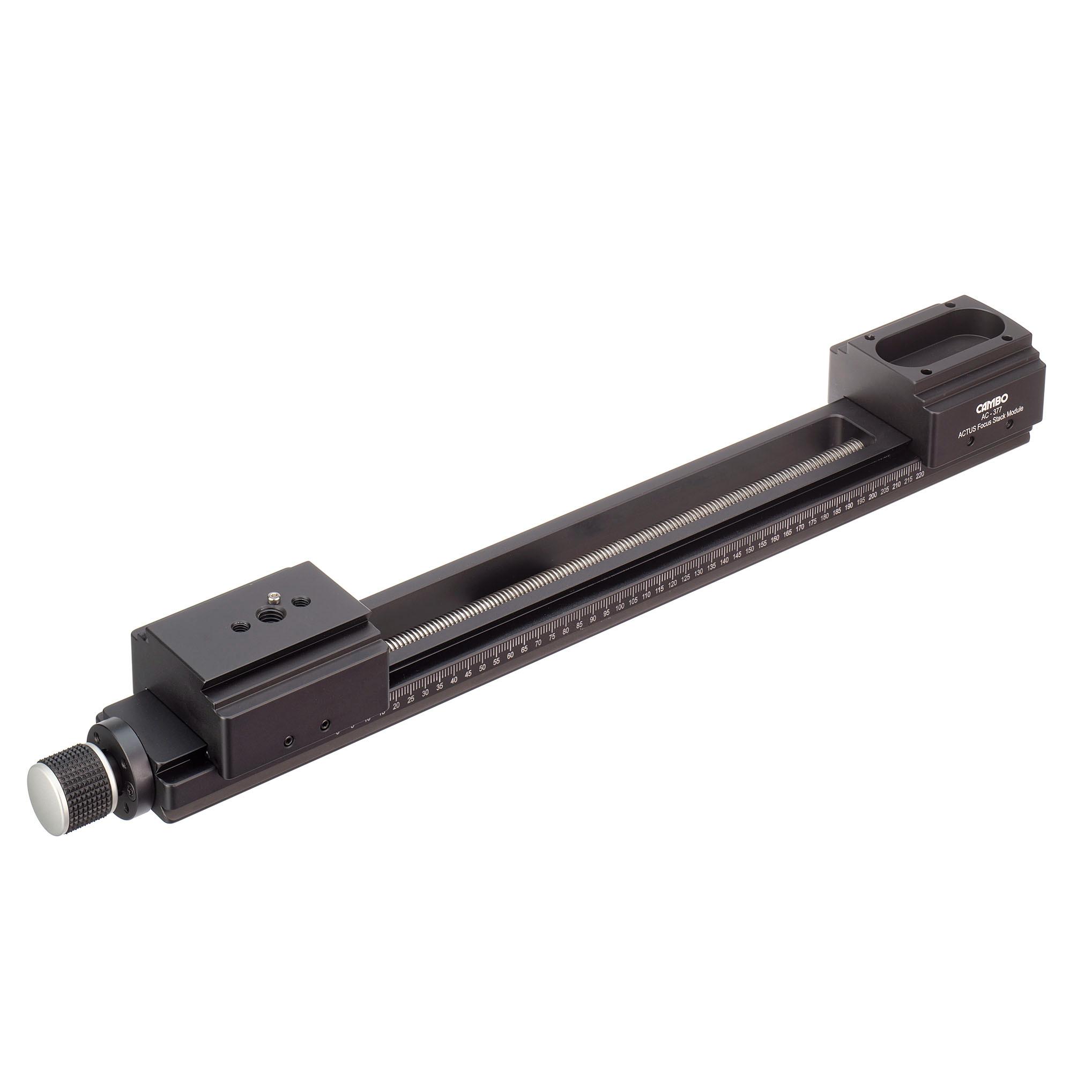

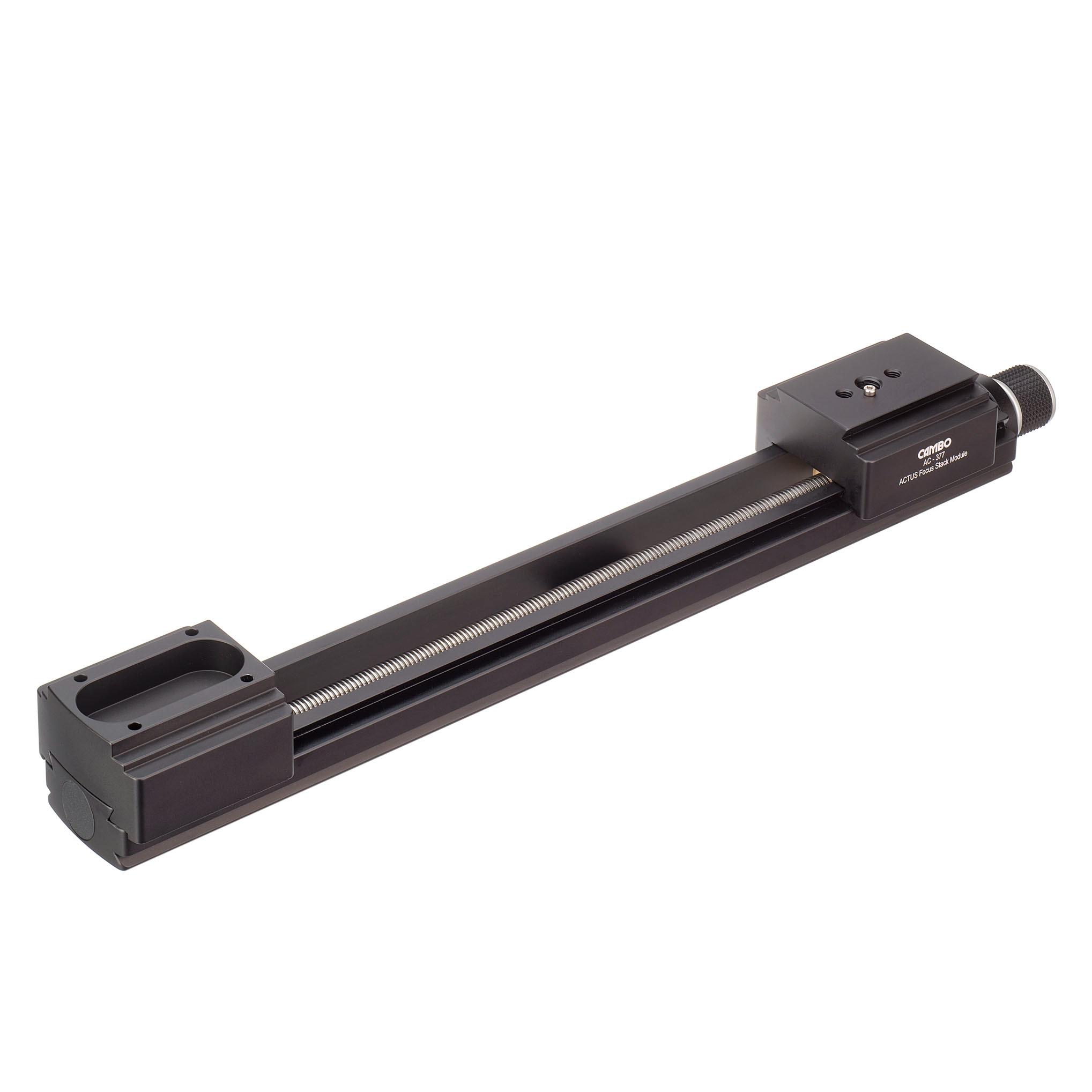

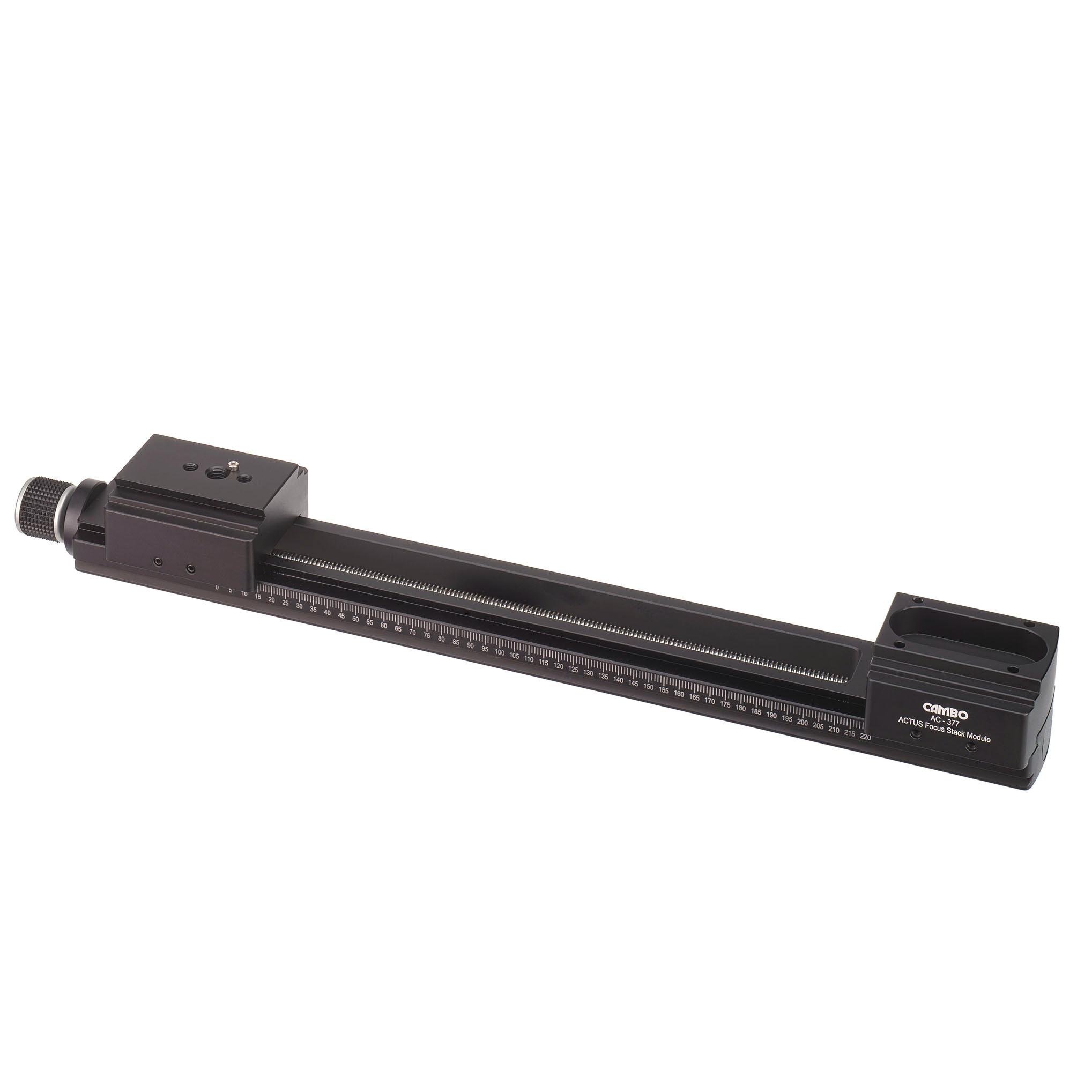

Create images that are sharp from front to back, regardless of the size of the object. The perfect way to explore the world of macro photography.  The Cambo Focus stacking rail AC-377 has a precise micrometric rail. Combined with a stepper motor this enables the photographer to focus the camera in extremely small increments. Repeatable and dependable.

The AC-377 is easily combined with the Actus mini view camera you already own. The conversion is reversible at any time.

Note: The stepper motor is a 3rd party's product and is not included.

Specifications

Length 419mm

Focus travel 220mm

Weight 800g

One spindle revolution equals 1,5mm of travel

Laser engraved scale on rail

Compatible with Actus-B, Actus-G and Actus-DB2

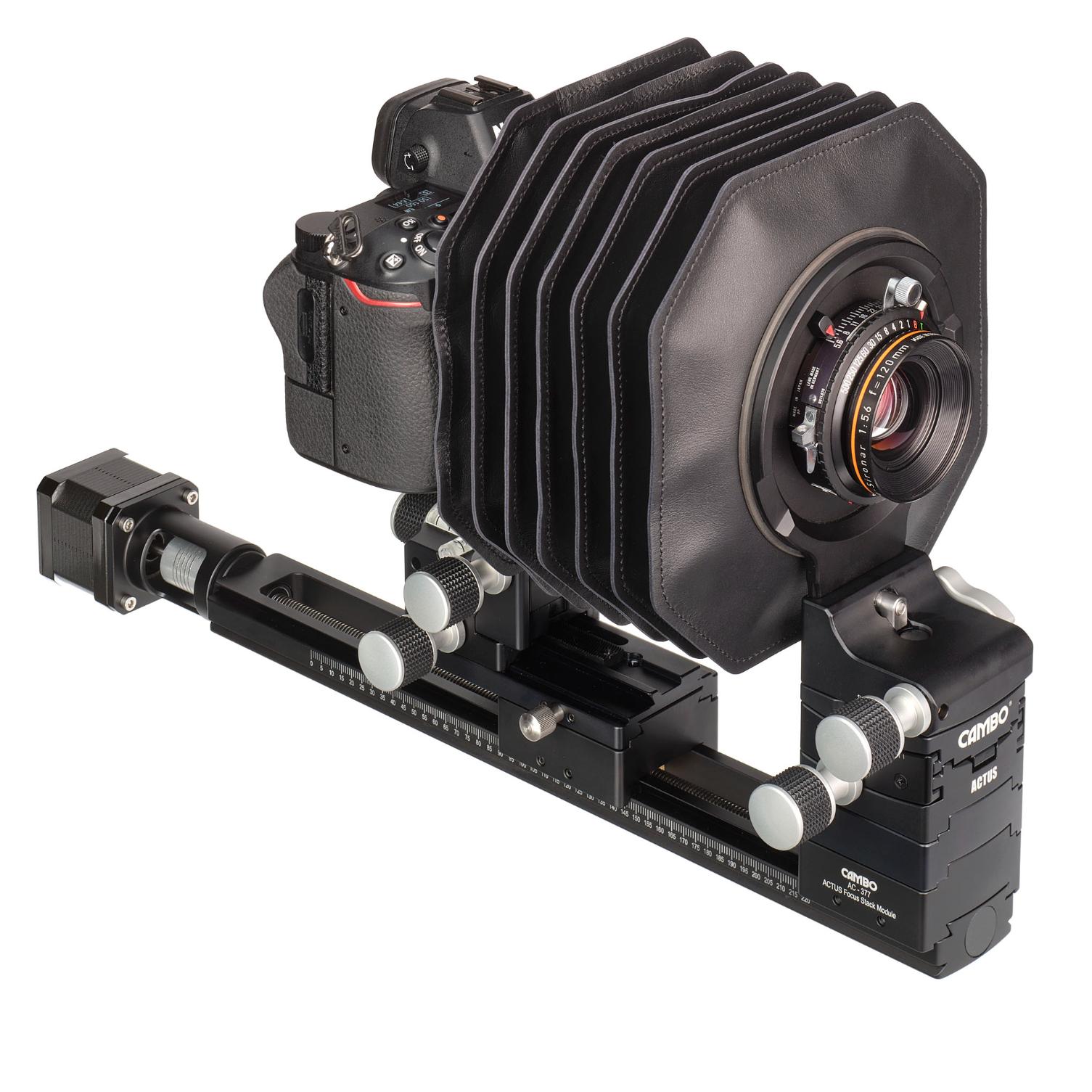

Stepper motor, controller and trigger cable required. Photos show Cognisys components

Rail compatible with Arca type quick releases
