Alpa GON Pano Plate Module
Added to basket!
Description:

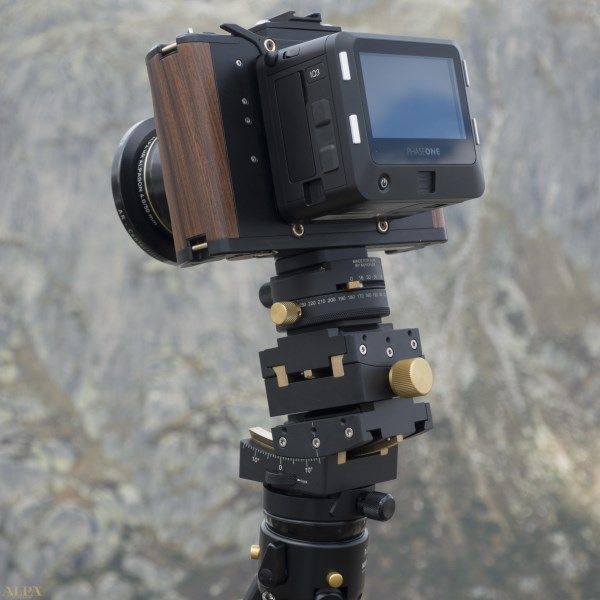

The Alpa Pano Plate is the upper part of the Alpa GON system. The base has 3/8th or 1/4 fixing and is secured to the Alpa Goniometer modules via the QPL tripod Mount. Connections are made via the industry standard Q plate dovetail system therefore accepting many 3rd party accessories with this system so as to tailor this head to your specific requirement.
Product Code:
A410300110

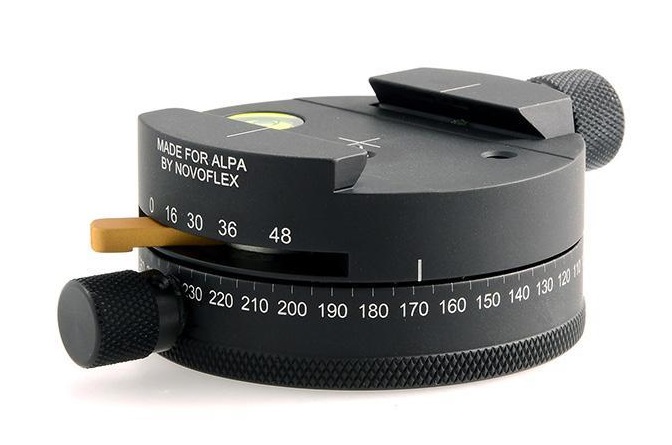

Alpa GON Pano Plate Module

The Alpa Pano Plate features a ball-bearing which guarantees a neat and free of play operation,

a 360°-laser engraved scaling with 5° increments, a bubble level for exact horizontal levelling,

an immersible anti-twist pin, 3/8”-1/4” tripod connection and an integrated quick release unit (type Q=MOUNT).

In addition it comes with built-in click stops with increments at (16)22.5°/(30)12°/(36)10°/(48)7.5° as well as stepless rotation.

Specification:
Scaling: 360° in 5° increments
Click stops: 360° = stepless, 22.5° = 16 clicks, 12° = 30 clicks, 10° = 36 clicks, 7.5° = 48 clicks
QR unit: Yes, Q=MOUNT - ARCA-compatible
Circular Spirit Level: Yes
Dimensions: 62x87mm (2.4"x3.4")
Height: 31mm (1.2")
Weight: 240g (8.5oz)
Tripod Connection: 1/4” resp. 3/8”
Camera Connection: QR plate
