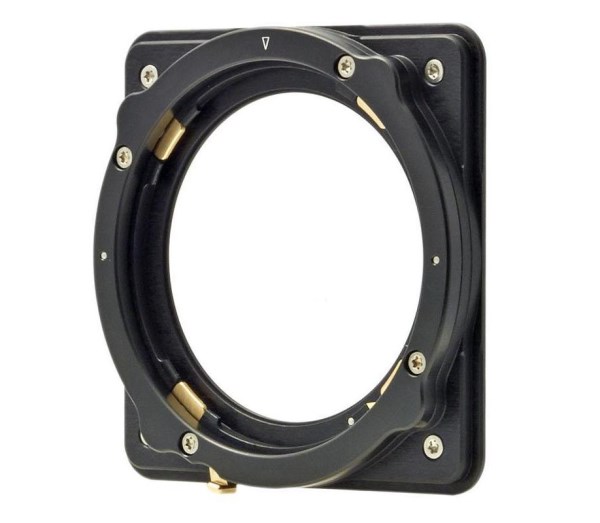

HCF Manual Lens Module | ALPA
Added to basket!
Description:

Lens Module HCF Manual , for CF/CFi/CFE/F/FE/ZV Classic lenses in Hasselblad V mount.
NOTE: The built-in Compur leaf shutter cannot be used.
The correct focal flange distance is reached with the corresponding combination of adapters and/or ALPA 12 camera bodies.
see below
Product Code:
A180888710
HCF Manual Lens Module | ALPA

FOR USE WITH ALPA 12 CAMERAS

HCF Module requires 45mm of Extension tubes when used on the Alpa 12 series of cameras.

This can be achieved by :

2 x 17mm spacers and 1 x 11mm spacer

1 x 34mm spacer and 1 x 11mm spacer

or any Alpa combination of extension tubes / spacers totalling 45mm

The 17mm or 34mm Spacers are also available with Tilt/ Swing facility

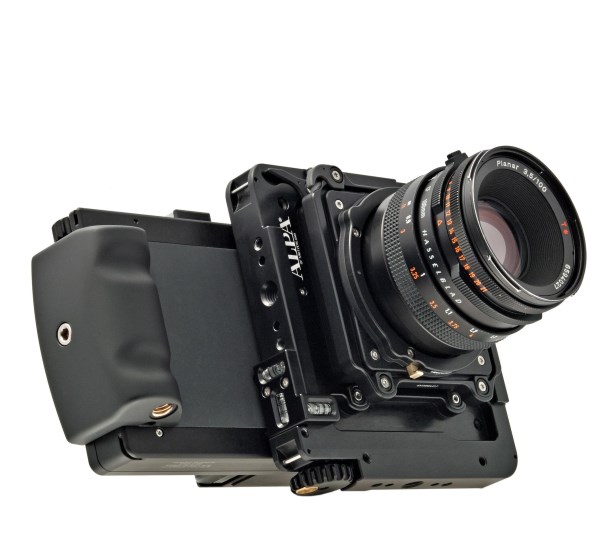

FOR USE WITH ALPA FPS

HCF Module requires 28mm of Extension tubes when used on the Alpa FPS Camera

1x 17mm spacer and 1 x 11mm spacer

or any Alpa combination of extension tubes / spacers totalling 28mm

The 17mm spacer are also available with Tilt/ Swing facility
