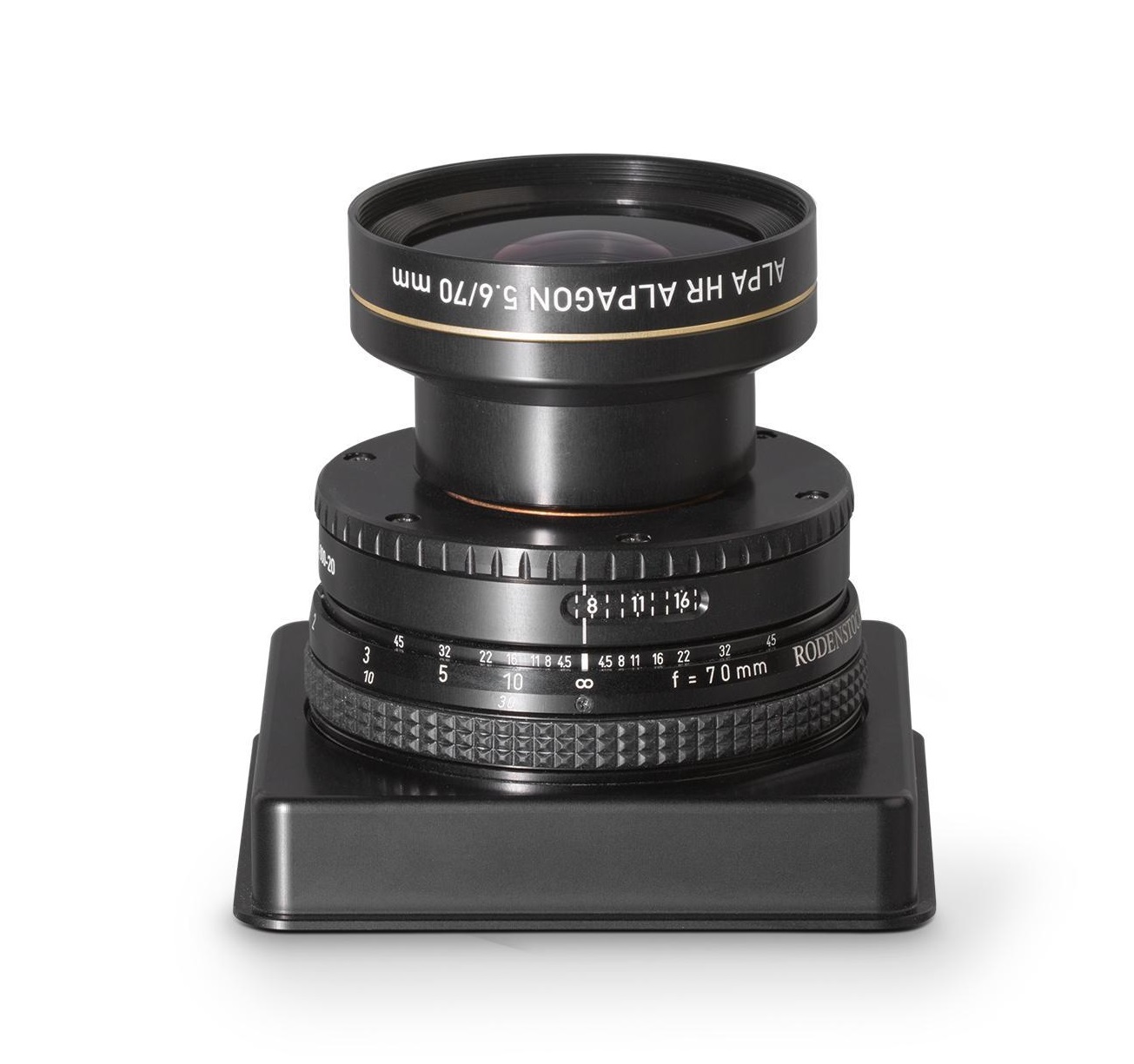

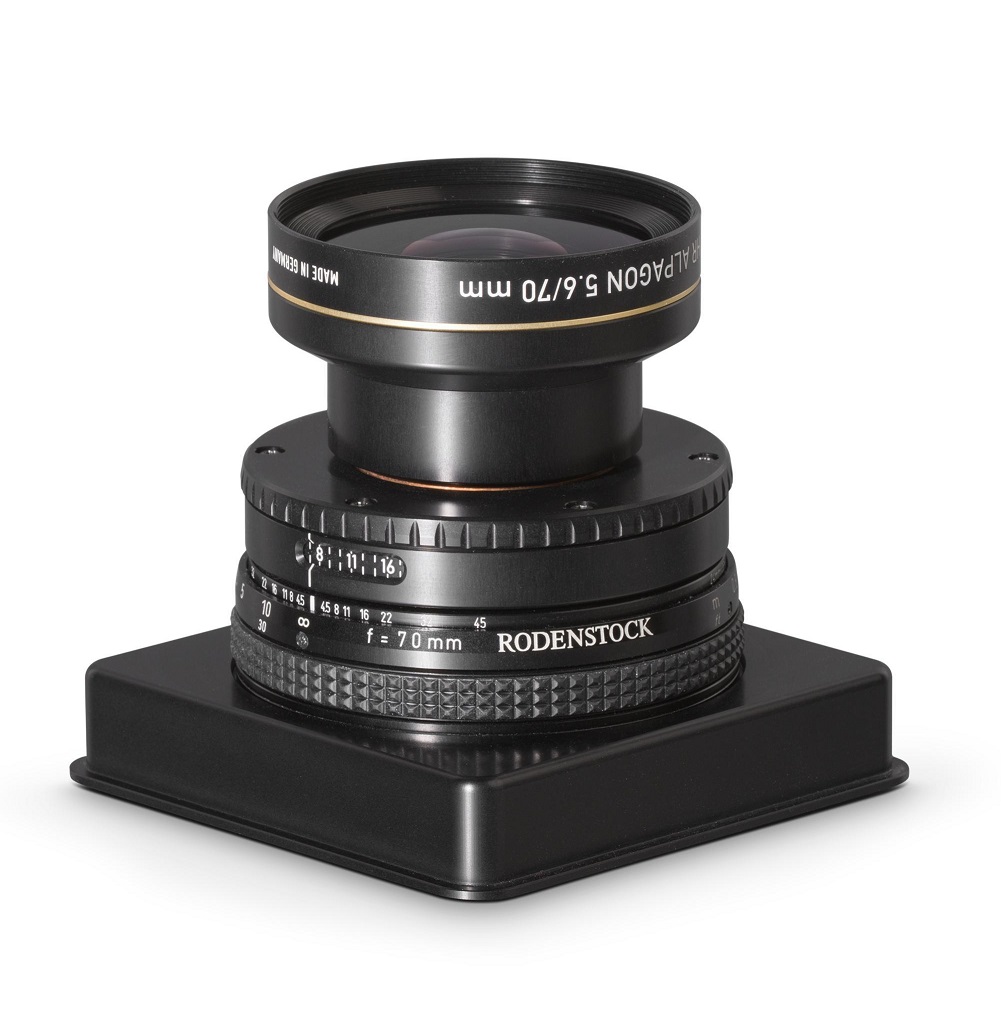

ALPA HR Alpagon 5.6/70 mm, SB17 | Aperture Stop Unit (AU)
Added to basket!
Description:
HR ALPAGON 70mm, has a vast 100mm image circle and offers extreme reserves for the perspective and sharpness compensation (tilt and shift) and also the optical performance is entirely convincing.
Product Code:
A16011871
ALPA HR Alpagon 5.6/70 mm, SB17 | Aperture Stop Unit (AU)
SPECIFICATION
Focal Length: 70 mm
Effective: 70.00 mm
Rodenstock / ALPA HR Alpagon 5.6/70 mm, LB, in Aperture Unit

Equivalent @ 33x44 = 55 mm Equivalent @ 40x54 = 45 mm
v/h @ 40 x 54: 22 mm / 19 mm
v/h @ 33 x 44: 28 mm / 25 mm
Image Circle: 100 mm
Image Angle: 70°
Optimal f-Stop Range: f5.6 - f8.0
Focusing Range: ∞ – 0.80 m/ 2.6 ft
Lens Shades Type: C0 / C1
Filter Size: M 58 x 0.75

More Information:
Given its compactness, one could easily underestimate the HR ALPAGON 70mm, but this impression is entirely deceptive. Since its focal length almost matches the image diagonal of the large medium format (40x54mm sensor), it corresponds to the usual definition of a standard lens and is characterized by an image that corresponds particularly well to human perception. Thus, the ALPAGON 70mm HR is ideally suited as an introduction to the ALPA system, especially since it makes an excellent figure on analogue film: It also covers 6x9 film format and then corresponds approximately to a classic 35mm in 35mm format.

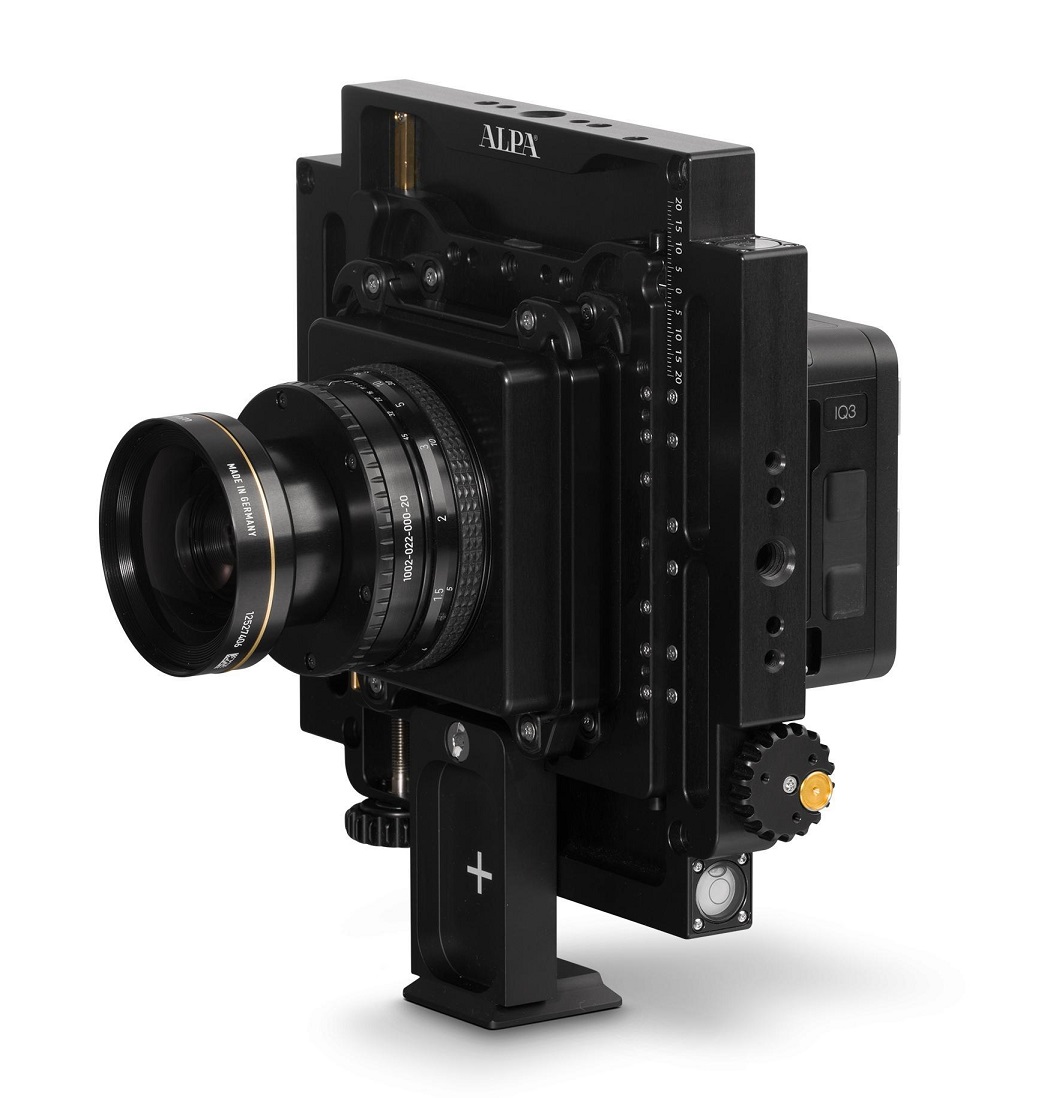

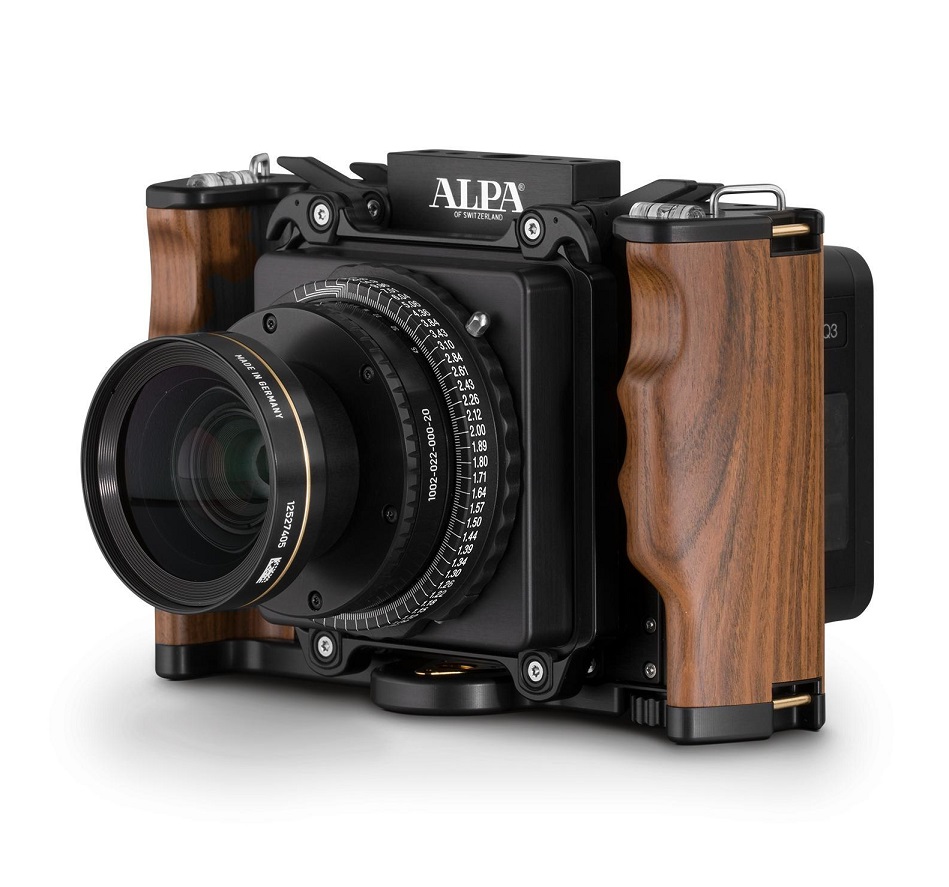

Please Note: The product images are sample images and often show the lens with an ALPA HPF ring (High Precision Focusing). This HPF ring is not included in the scope of delivery of the lens. However, ALPA recommends the use of an HPF ring for optimum handling.

Lens tube: This is the standard version in Short Barrel. Versions in Long Barrel or Short Barrel FPS available on special order
.
