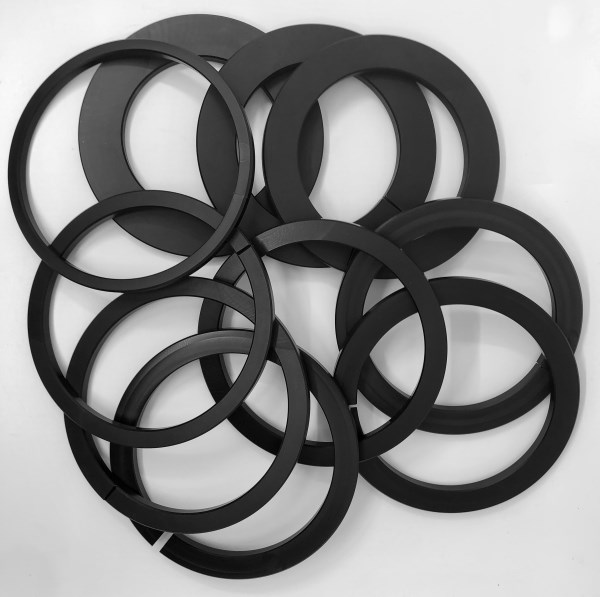

Donut Adapter Rings outer diameters | LSL XXL
Added to basket!
Description:

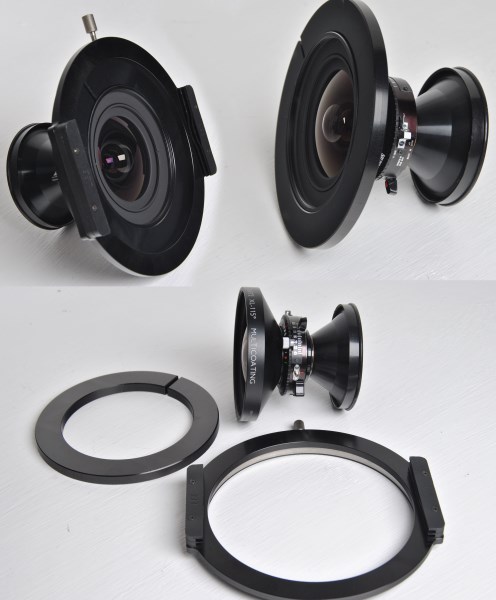

The Linhof Studio XXL holder accepts these donuts that tighten around the outer diameters of the front lens or filter barrel.
Please see the drop down menu for sizes available.
Product Code:
LXXLARD
Donut Adapter Rings outer diameters | LSL XXL
Options:


Lens compatibility examples. Please note that not all lenses are listed and care should be taken when measuring the outer diameter of your lens.

-Rodenstock
HR 32mm Digaron.................... Filter thread 86mm Push on Donut 90mm
Grandagon 155mm................... Filter thread 105mm Push on Donut 110mm
300mm f5.6 Sironar N.............. Filter thread 86mm.Push on Donut 90mm
300mm Apo Sironar S f5.6.........Filter Thread 100mm Push on Donut 105mm
360mm f6.8 Sironar N............... Filter thread 105mm Push on Donut 110mm
360mm Apo Sironar S............... Filter thread 112mm Push on Donut 117mm
480mm Sironar N f9 & f 8.4.......Push on Donut 115mm

-Schneider
Super Angulon XL 72 & 90mm............ Filter thread 95mm Push on Donut 100mm
Super Angulon 90mm f6.8.................. Filter thread 82mm Push on Donut 90mm
Super Symmar XL 150mm................. Filter thread 95mm Push on Donut 100mm
Super Angulon 165mm f8.................. Filter thread 105mm Push on Donut 110mm
Super Angulon 165mm f8.................. Filter thread 110 Push on Donut 115mm
Symmar S 300mm & 480mm............ Filter thread 105mm Push on Donut 110mm
Symmar S 360mm...........................Push on Donut 125mm
Apo Tele Xenar 600 & 800................ Filter thread 105mm Push on Donut 112mm

-Fine Art Lenses
Schneider 550mm XXL/f11................. Filter thread 122mm Push on Donut 125mm
Schneider 1100mm XXL/f22 & f14...... Filter thread 105mm Push on Donut 110mm


-Specials
210mm Super Symmar XL & 210mm f8 Super Angulon MC version & 200mm f6.8 Grandagon
No adapter ring or donut required. Filter holder tightens directly to outer diameter of front barrel
Schneider 28mm PC TS f4.5 HM Super Angulon 122mm thread mount. Push on Donut 125mm


-Centre Filters
Centre filter for 32mm HR Digaron...................................105mm filter thread Push on Donut 110mm
Centre filter for 23 & 28mm HR Digaron...........................100mm Push on Donut
Schneider Centre Filter IVa / IVb ( 90mm XL & 150mm S/Symmar).....115mm Push on Donut
Schneider Centre Filter IIIc/ IIIb/III....................................90mm Push on Donut
