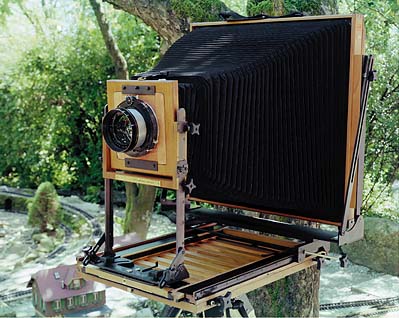

Lotus View Rapid Field Camera 14 x 17
Added to basket!
Description:
Lotus View Camera manufactures lightweight field cameras made from cherry wood, high-quality metal, and high-tech material. The movements are geared by racks and drives made of black Delrin™. All wooden parts are made from cherry wood, we dont use rain forest wood. Metal parts are made from powder coated or black anodized aluminium or from brass. All cameras are supplied with a lensboard and made in Austria
Product Code:
LOTCAM1417
Lotus View Rapid Field Camera 14 x 17

Front axis tilt

Front base tilt

Front Swing

Front rise and fall

Front lateral shift

Back base tilt

Back axis tilt

Back Swing

Back rise and fall

Back lateral shift

Limited only by the bellows

45° forward/ 90° back

56°

230mm

165mm

30°

Special order

46°

Total 120mm (Special order)

460mm (Special order)

Groundglass

Groundglass frame

Bellows changeable

Minimum Bellows draw

Maximum Bellows draw

Finish of wood

Lensboard



Tripod thread

Weight without lens



Special order with grid

Interchangeable between upright and transverse size

yes

1100mm

240mm

Oiled and waxed

Deardorff-Type (6x6" with rounded corners) or custom design.

Adapters for Technik style boards are available

3/8"

13 kg
