WRS 40mm HR Digaron W Aperture Stop Only Lens | Cambo
Added to basket!
Description:
This Cambo WRS Rodenstock 4.0/40 HR Digaron-W lens is in aperture only mount.
It is designed to be used with Digital Backs with sensor activated electronic shutter.

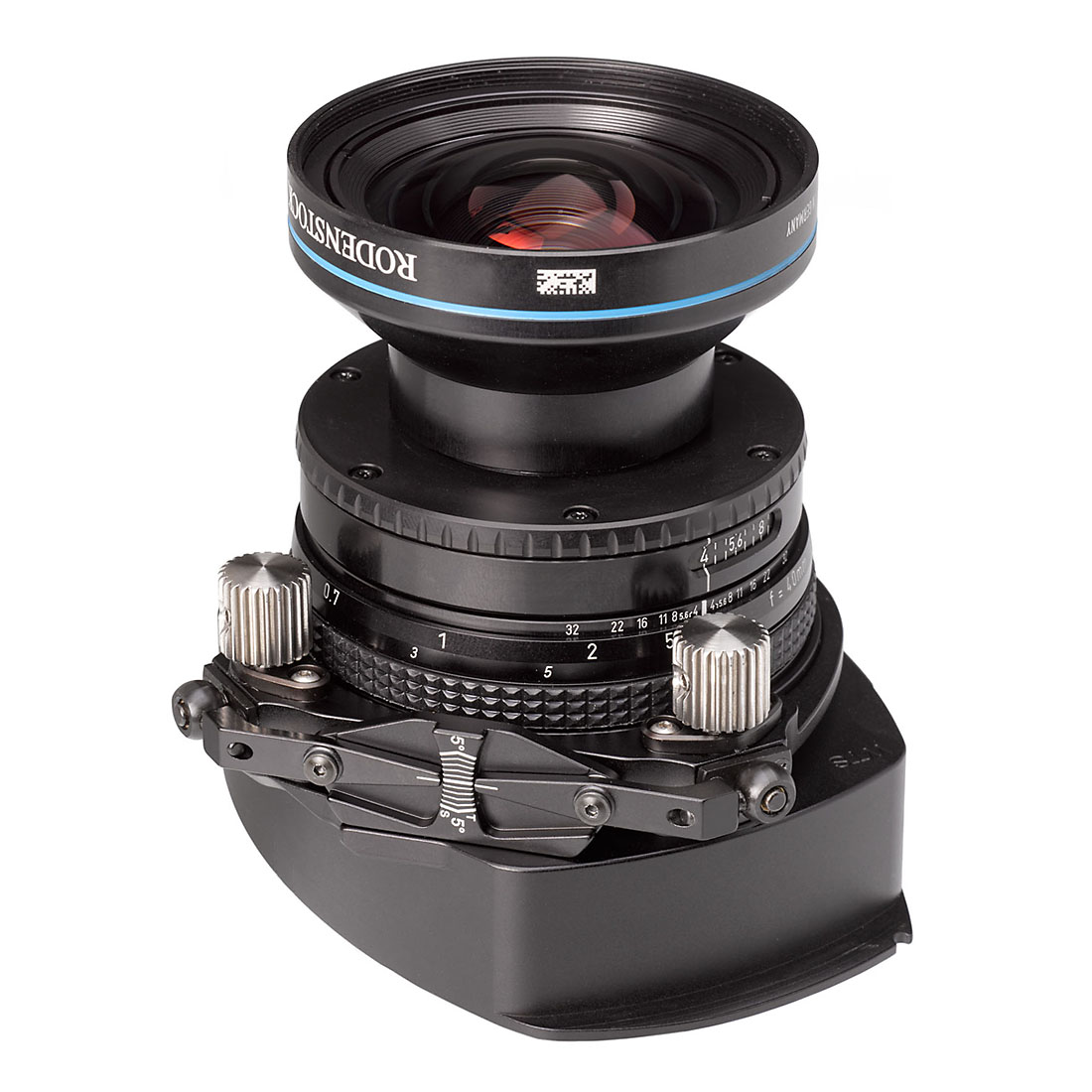

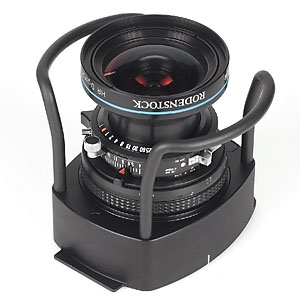

Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
More information below
Product Code:
WRS 40mm HR Digaron W Aperture Stop Only Lens | Cambo
Options:

This WRS mounted lens is compatible also with Phase One XT camera if the X shutter is not required. (No data transferred)

Shortest focal distance to object: 0,35 mtr



Image circle of lens at f/8: 90mm



Movement range Vertical/Horizontal (landscape format):

CCD size 37x37mm: 23/23mm

CCD size 33x44mm: 23/20mm

CCD size 36x48mm: 20/17mm

CCD size 37x49mm: 19/17mm

CCD size 40x54mm: 15/13mm

CCD size 36x56mm: 17/13mm



Camera Body Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

This product is compatible with the PhaseOne XT system / No data transfer
