WRS 90mm HR Digaron SW Aperture Stop Only Lens | Cambo
Added to basket!
Description:

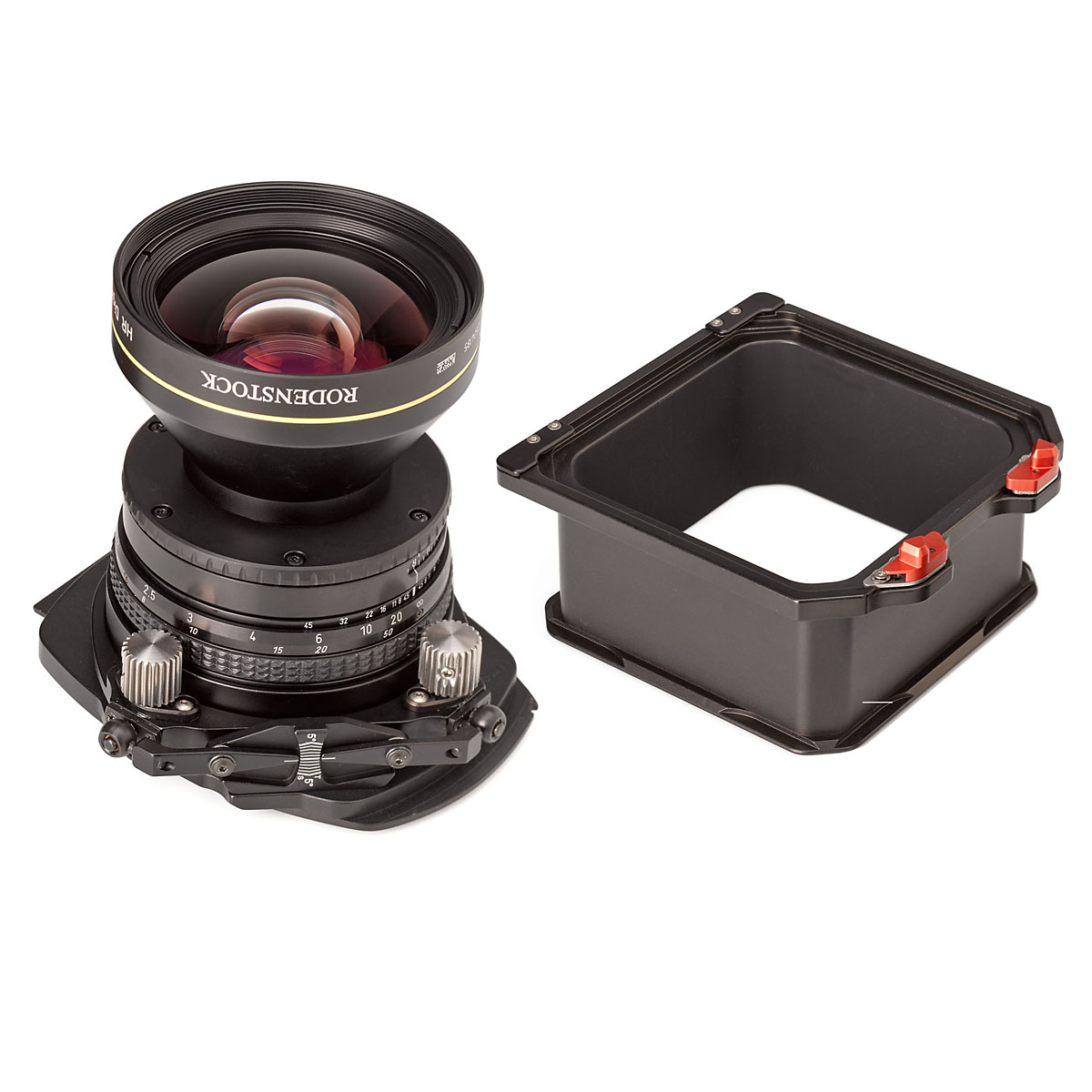

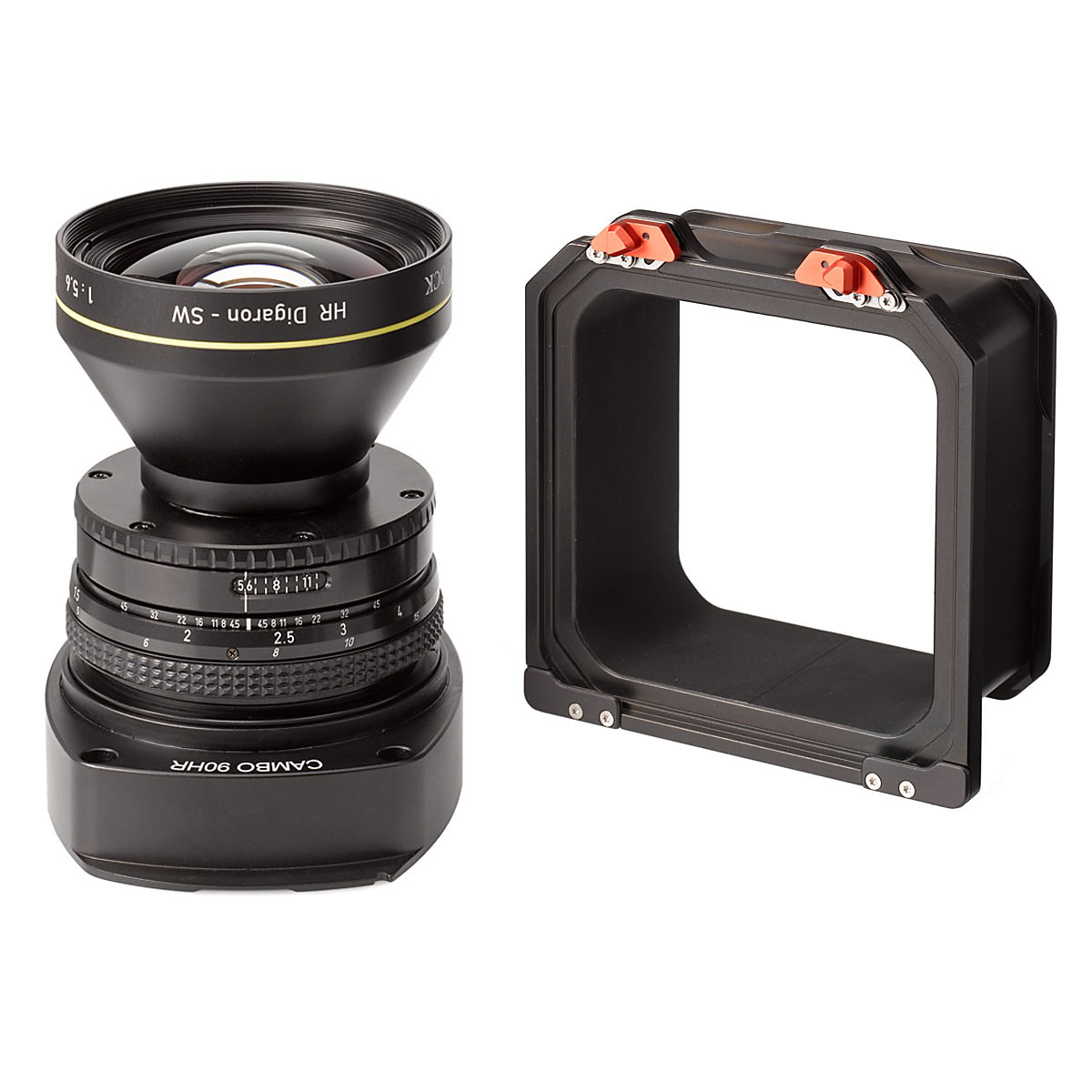

This Cambo WRS Rodenstock 5.6/90 HR Digaron-SW lens is in aperture only mount.
It is designed to be used with Digital Backs with sensor activated electronic shutter. The lens is mounted short barrel to ensure optimal shift without vignetting and supplied with an extra spacer to focus to infinity
Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
Product Code:
WRS 90mm HR Digaron SW Aperture Stop Only Lens | Cambo
Options:

  • Resolution up to 100 line pairs/mm, pixel size up to 5 µm.
  • Open aperture is free of vignetting and can be used as a working aperture
  • Excellent imaging performance at working apertures from 5.6 to 8
  • To avoid blurring and color fringing caused by the sensor protection glass, the calculation of the optical design includes a 2 mm thick sensor glass
  • Perfect symmetric reproduction due to the special adjustment of the optical elements

This WRS mounted lens is compatible also with Phase One XT camera if the X shutter is not required.

( No data transferred)

Dimensions and Weights
Push-on diameter 75 mm
Filter thread E 72
Rear mount diameter 56.0 mm
Flange focal length at scale 8  (Copal version) 109.4 mm
Flange to lens end (Copal version) 42.7 mm
Overall length 107.0 mm
Weight (version Copal) 680 g
