WRS 70mm HR Digaron W Aperture Stop Only Lens | Cambo
Added to basket!
Description:
This Cambo WRS Rodenstock 5.6/70 HR Digaron-W lens is in aperture only mount.
It is designed to be used with Digital Backs with sensor activated electronic shutter.

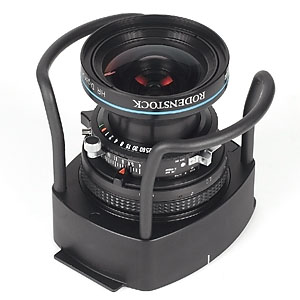

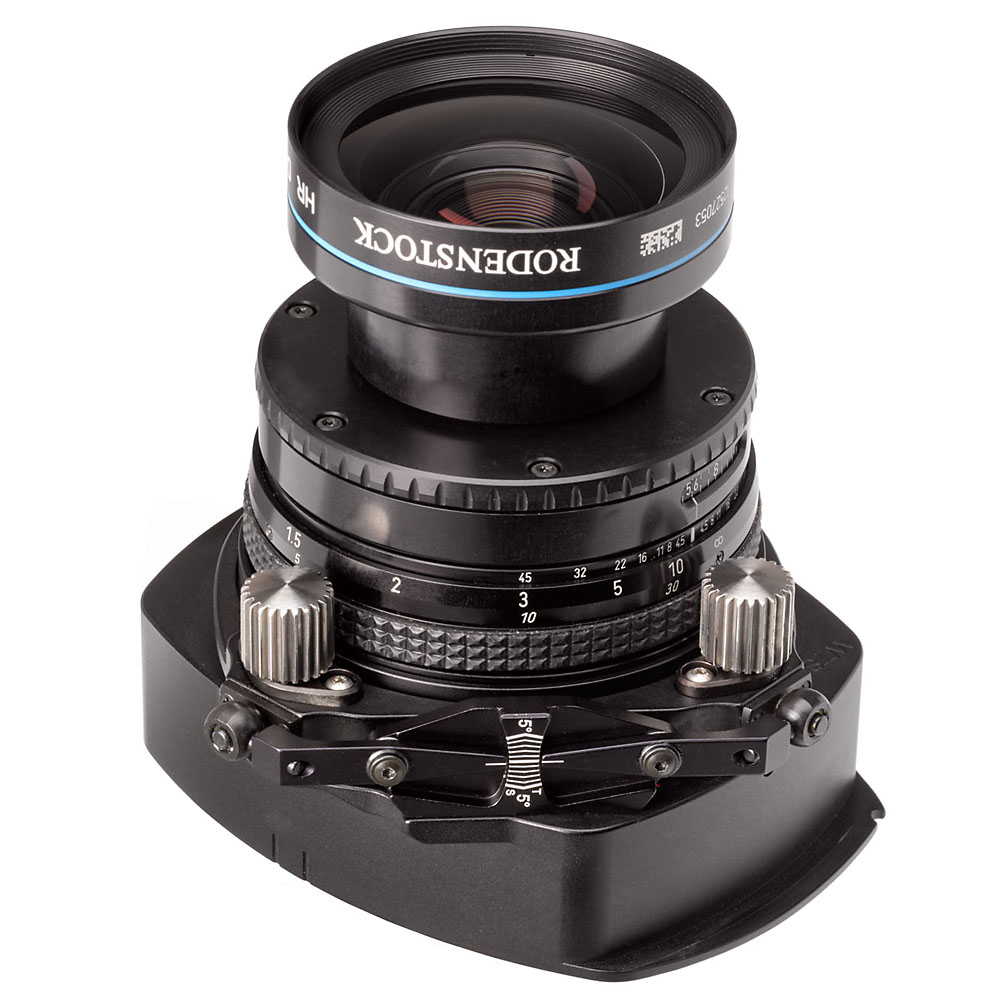

Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
More information below
Product Code:
WRS 70mm HR Digaron W Aperture Stop Only Lens | Cambo
Options:

Shortest focal distance to object: 0,9 mtr



Image circle of lens at f/11: 100mm



Movement range Vertical/Horizontal (landscape format):

CCD size 37x37mm: 28/28mm

CCD size 33x44mm: 28/25mm

CCD size 36x48mm: 25/22mm

CCD size 37x49mm: 24/22mm

CCD size 40x54mm: 20/18mm

CCD size 36x56mm: 22/18mm

Please note that some optical movements are larger than achievable due to mechanical limitation.



Camera Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

This product is compatible with the PhaseOne XT system / No data transfer
