WRS 35mm HR Digaron S Aperture Stop Only Lens | Cambo | DISCONTINUED
Added to basket!
Description:

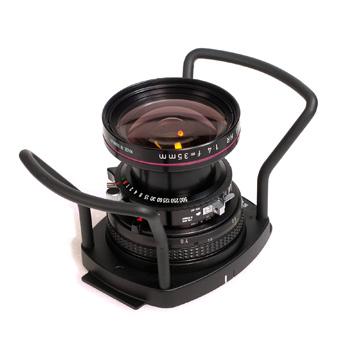

This Cambo WRS Rodenstock 4.0/35 HR Digaron-S lens in aperture only mount.
It is designed to be used with Digital Backs with sensor activated electronic shutter.
Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
More information below
Product Code:
WRS 35mm HR Digaron S Aperture Stop Only Lens | Cambo | DISCONTINUED
Options:

This WRS mounted lens is compatible also with Phase One XT camera if the X shutter is not required. (No data transferred)

Shortest focal distance to object: 0,3 mtr



Image circle of lens at f/8: 70mm



Optical Movements:

CCD size 37x37mm: 11/11mm

CCD size 33x44mm:  8/11mm

CCD size 36x48mm:  6/ 6mm

CCD size 37x49mm:  6/ 5mm

CCD size 40x54mm:  2/ 1 mm

CCD size 36x56mm:  3/ 2 mm



Camera Body Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

This product is compatible with the PhaseOne XT system / No data transfer
