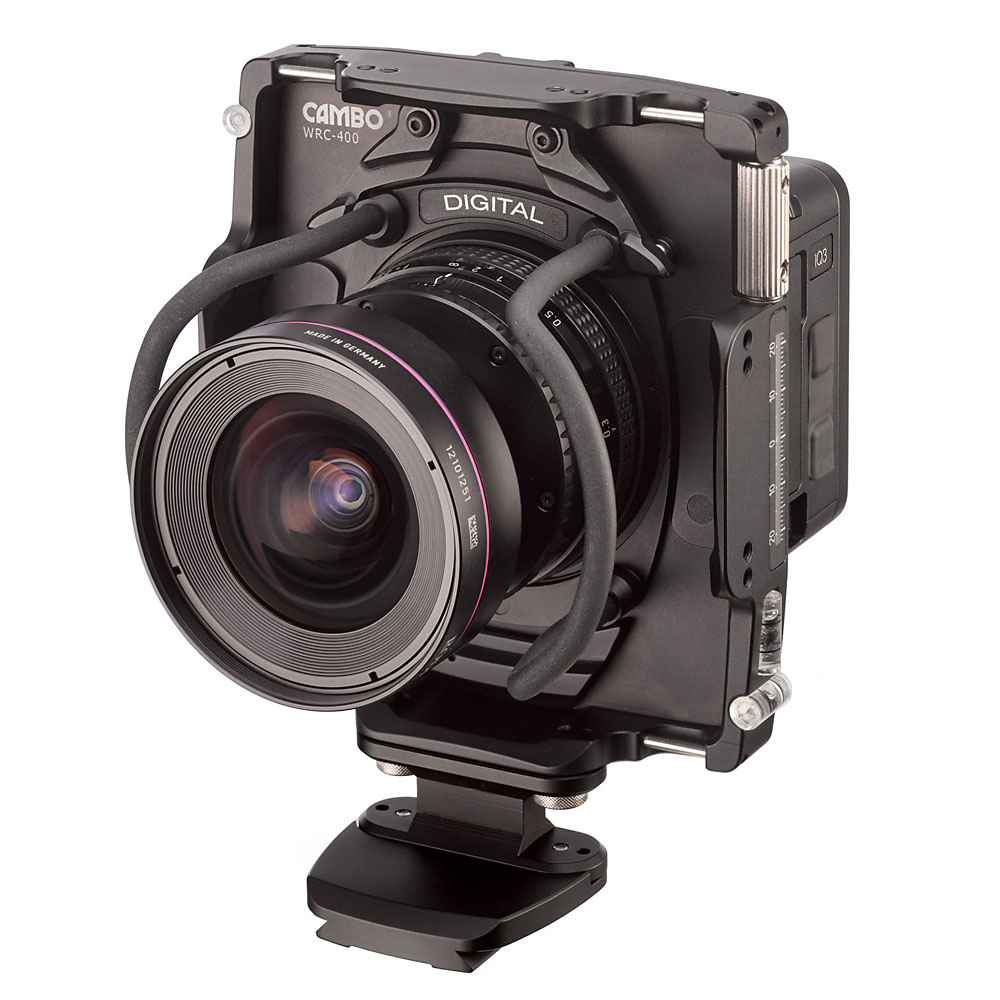

WRS 23mm HR Digaron S Aperture Stop Only Lens | Cambo
Added to basket!
Description:

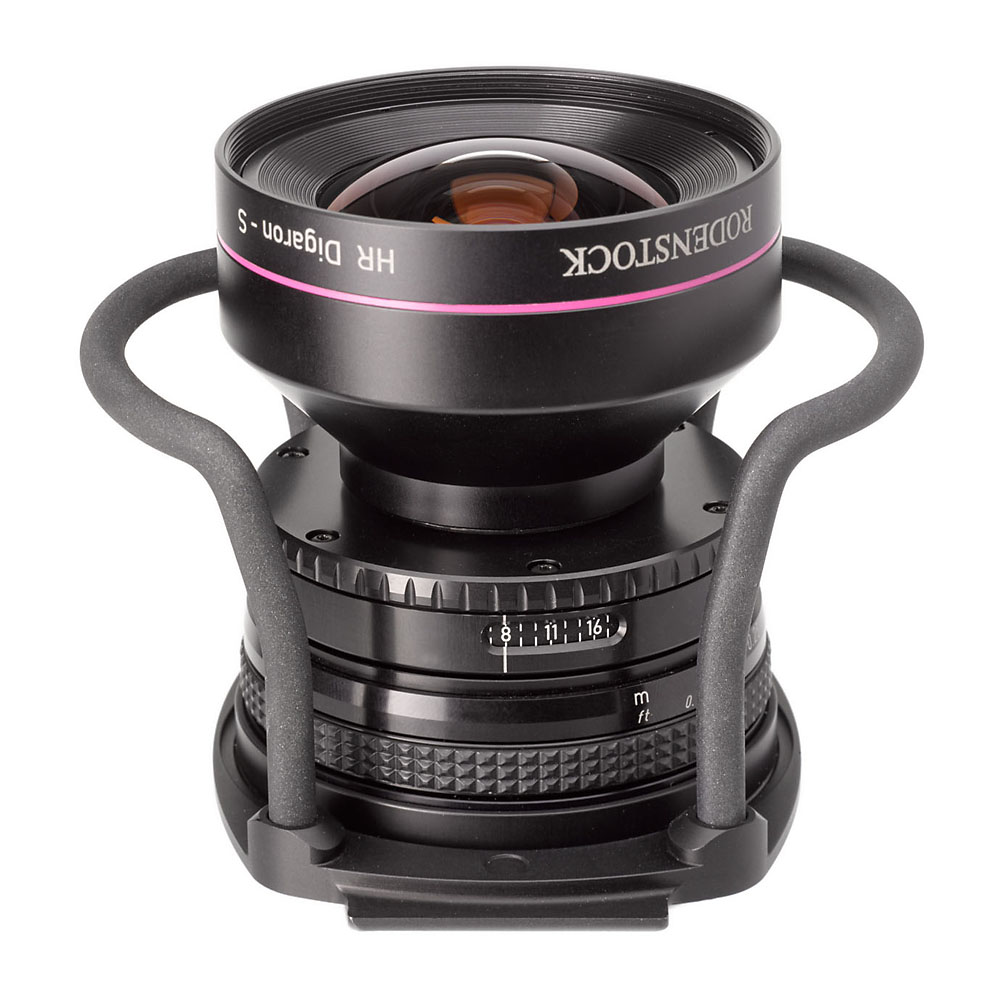

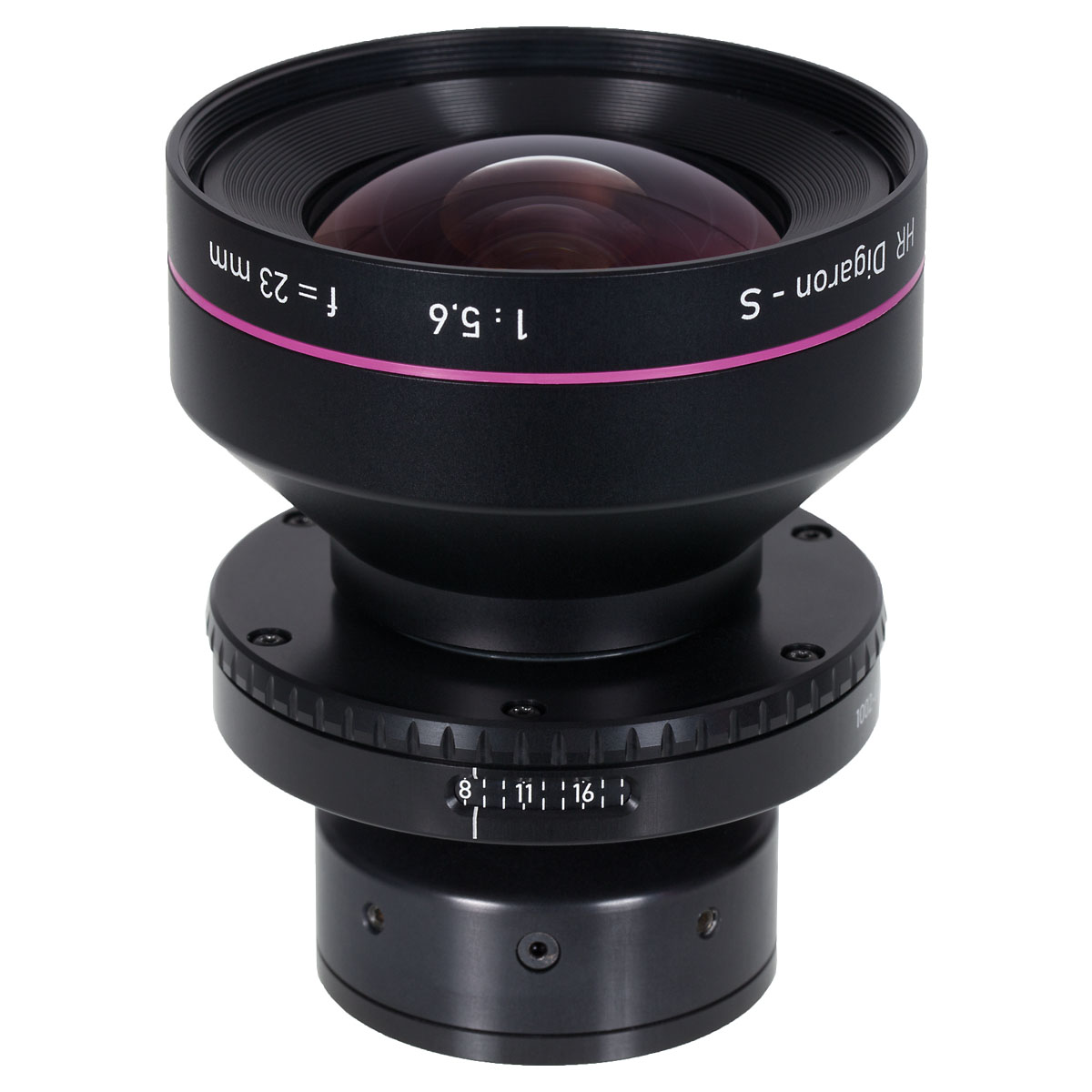

This Cambo WRS Rodenstock 5,6/23 HR Digaron-S lens in aperture only mount.
It is designed to be used with Digital Backs with sensor activated electronic shutter.
This lens is compatible with the PhaseOne XT system / No data transfer
Product Code:
CAMWRA2023
WRS 23mm HR Digaron S Aperture Stop Only Lens | Cambo



Shortest focal distance to object: 0,2 mtr



Image circle of lens at f/11: 70mm



Movement range Vertical/Horizontal (landscape format)

CCD size 37x37mm:  10/10 mm

CCD size 33x44mm:  10/ 9 mm

CCD size 36x48mm:    7/ 6 mm

CCD size 37x49mm:    6/ 5 mm

CCD size 40x54mm:    0/ 0 mm

CCD size 56x36mm:    3/ 2 mm



Camera Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

This product is compatible with the PhaseOne XT system / No data transfer
