WRS 180mm HR Digaron S Aperture Stop Only Lens | Cambo
Added to basket!
Description:

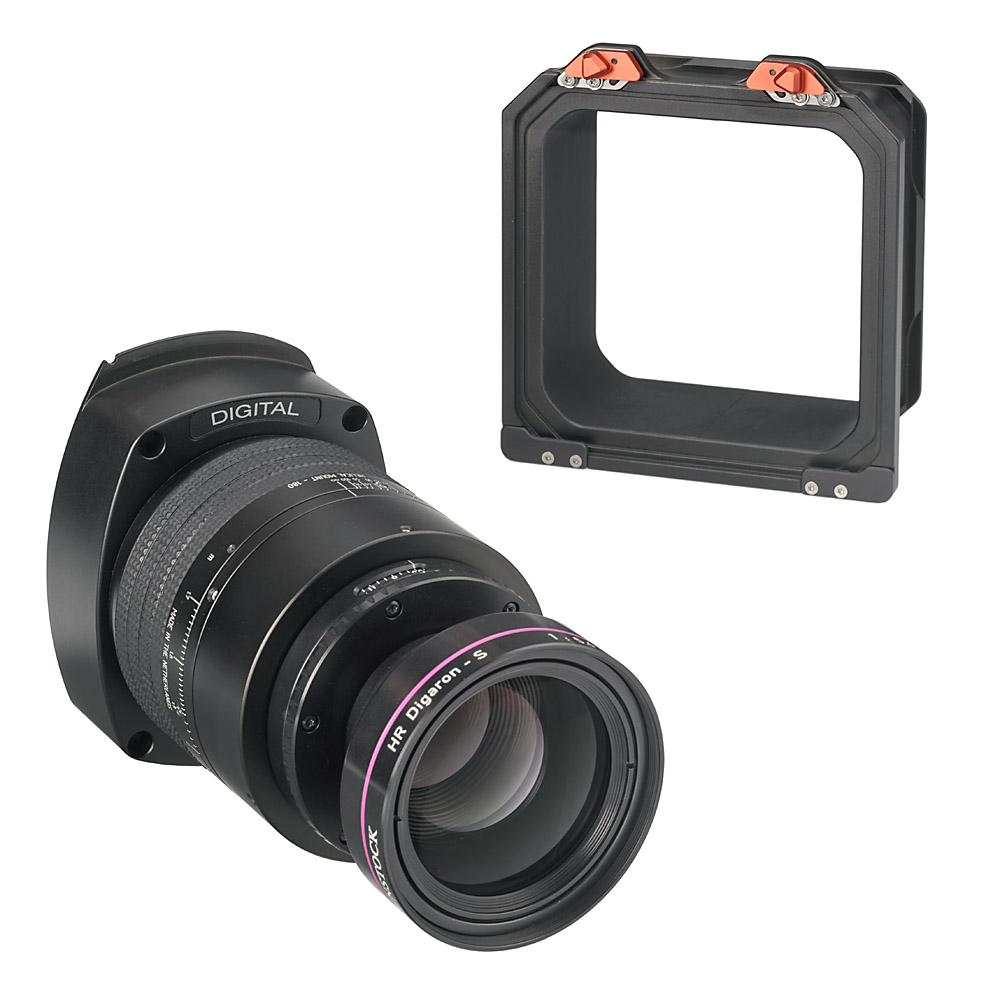

This Cambo WRS Rodenstock 5.6/180 HR Digaron-S lens is in aperture only mount with 25mm travel.Details on PDF of AU Mount.
The lens is mounted short barrel to ensure optimal shift without vignetting and supplied with an extra spacer to focus to infinity.
Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
Product Code:
WRS 180mm HR Digaron S Aperture Stop Only Lens | Cambo
Options:
The WTSA-180L Lenspanel is dedicated to the use with Digital Backs with sensor activated
electronic shutter and has a Rodenstock 5,6/180 HR-S Digaron lens with Aperture Only
mounted in a helical focussing mount, with 25mm travel. This lenspanel features an
integrated
tilt and swing mechanism which can be operated with two precise gear-driven knobs up
to 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt
can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the
focal plane is guaranteed.

This version has a split back focal length, existing of a shorter lensplate and a rear
extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WTSA-180L fits to all Cambo Wide cameras with SLW-adapters.
Shortest focal distance to object: approx. 1.7 mtr

Image circle of lens at f/11: 80 mm

Optical Movements:
CCD size 37x37mm: 17/17mm
CCD size 33x44mm: 17/14 mm
CCD size 36x48mm: 14/12 mm
CCD size 37x49mm: 13/11 mm
CCD size 40x54mm:  9 / 8 mm
CCD size 36x56mm:  13/ 7 mm

Camera Body Movements
Camera Movements:

WRS-1200:
Up / Down / Left / Right: 25 / 15 / 20 / 20mm
WRS-1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
