WRS 180mm HR Digaron SW Aperture Stop Only Lens | Cambo
Added to basket!
Description:

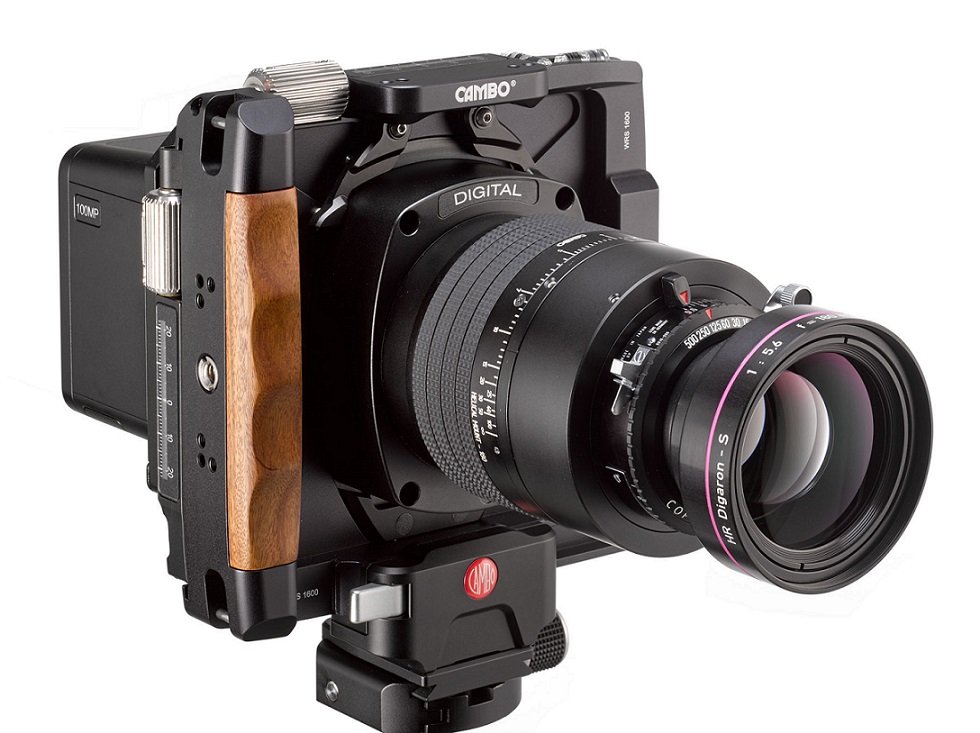

This Cambo WRS Rodenstock 5.6/180 HR Digaron-S lens is in aperture only mount with 25mm travel.
It is designed to be used with Digital Backs with sensor activated electronic shutter.
The lens is mounted short barrel to ensure optimal shift without vignetting and supplied with an extra spacer to focus to infinity.

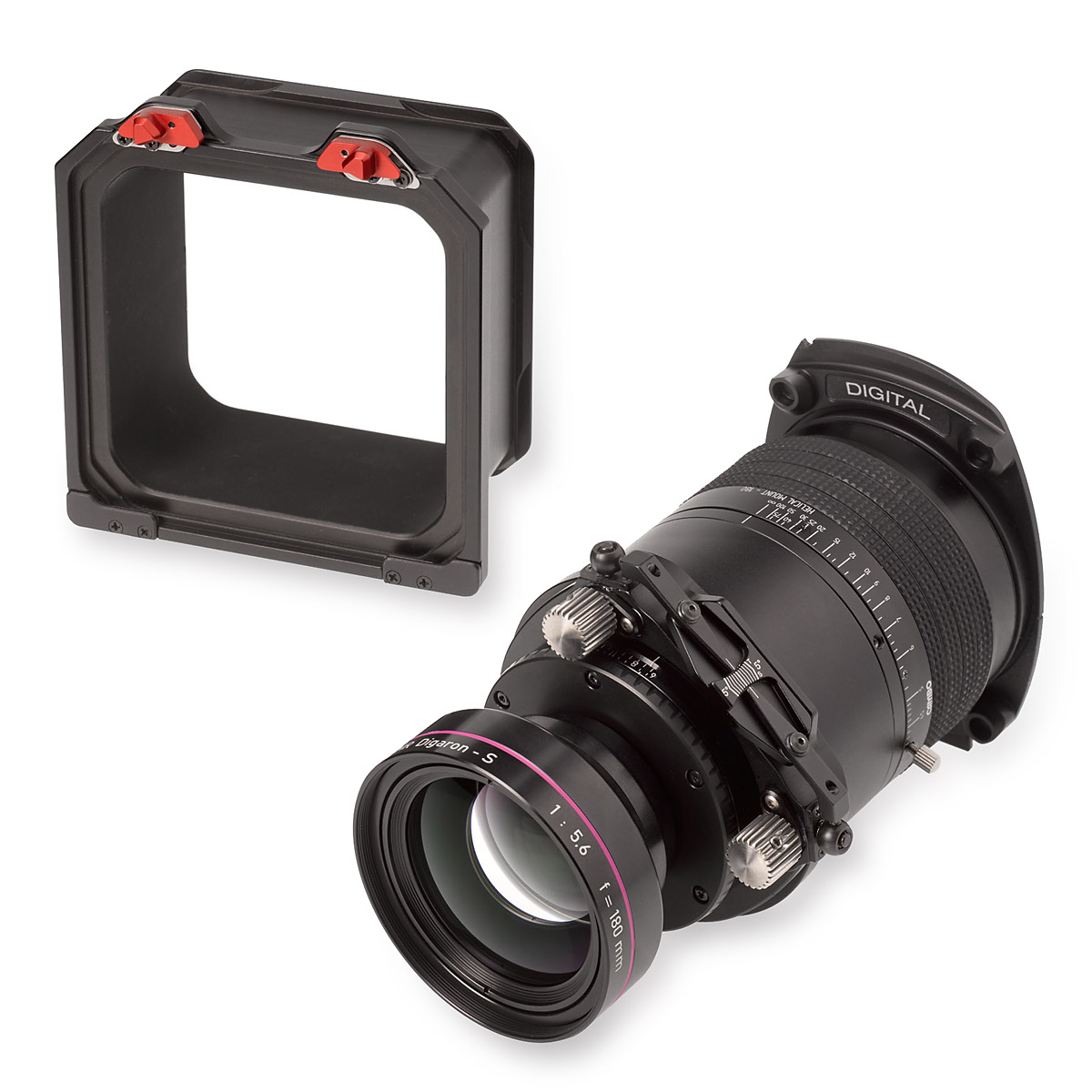

Available on a Cambo standard panel or a Cambo Tilt-Swing Panel.
More information below
Product Code:
WRS 180mm HR Digaron SW Aperture Stop Only Lens | Cambo
Options:

Shortest focal distance to object: approx. 1.7 mtr



Image circle of lens at f/11: 80 mm



Movement range Vertical/Horizontal (landscape format):

CCD size 37x37mm: 17/17mm

CCD size 33x44mm: 17/14 mm

CCD size 36x48mm: 14/12 mm

CCD size 37x49mm: 13/11 mm

CCD size 40x54mm:  9 / 8 mm

CCD size 36x56mm:  13/ 7 mm



Please note that the optical movements are larger than achievable due to mechanical limitation.



Camera Movements:

WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm

WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
