Cambo RPS-500 Film Stage
Added to basket!
Description:

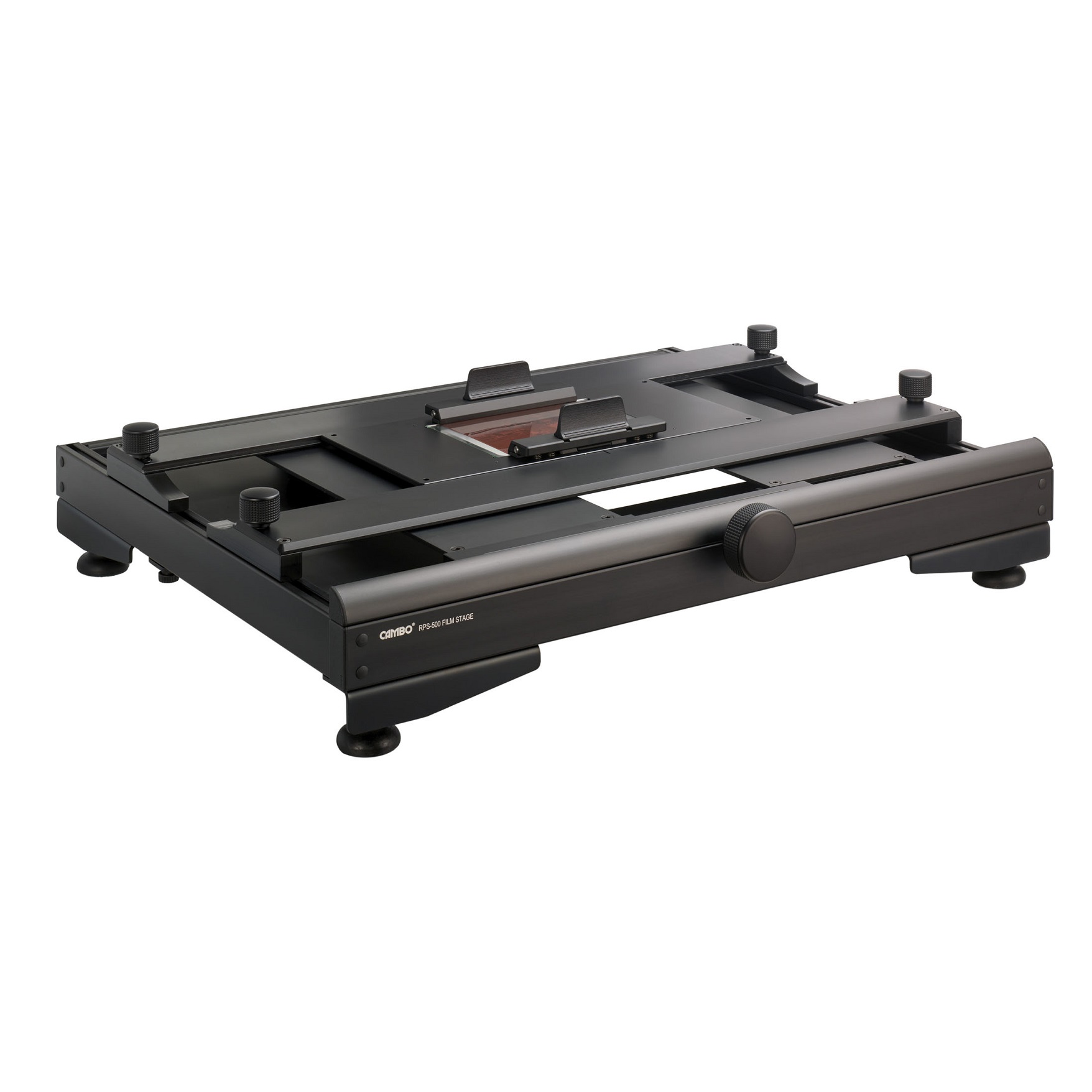

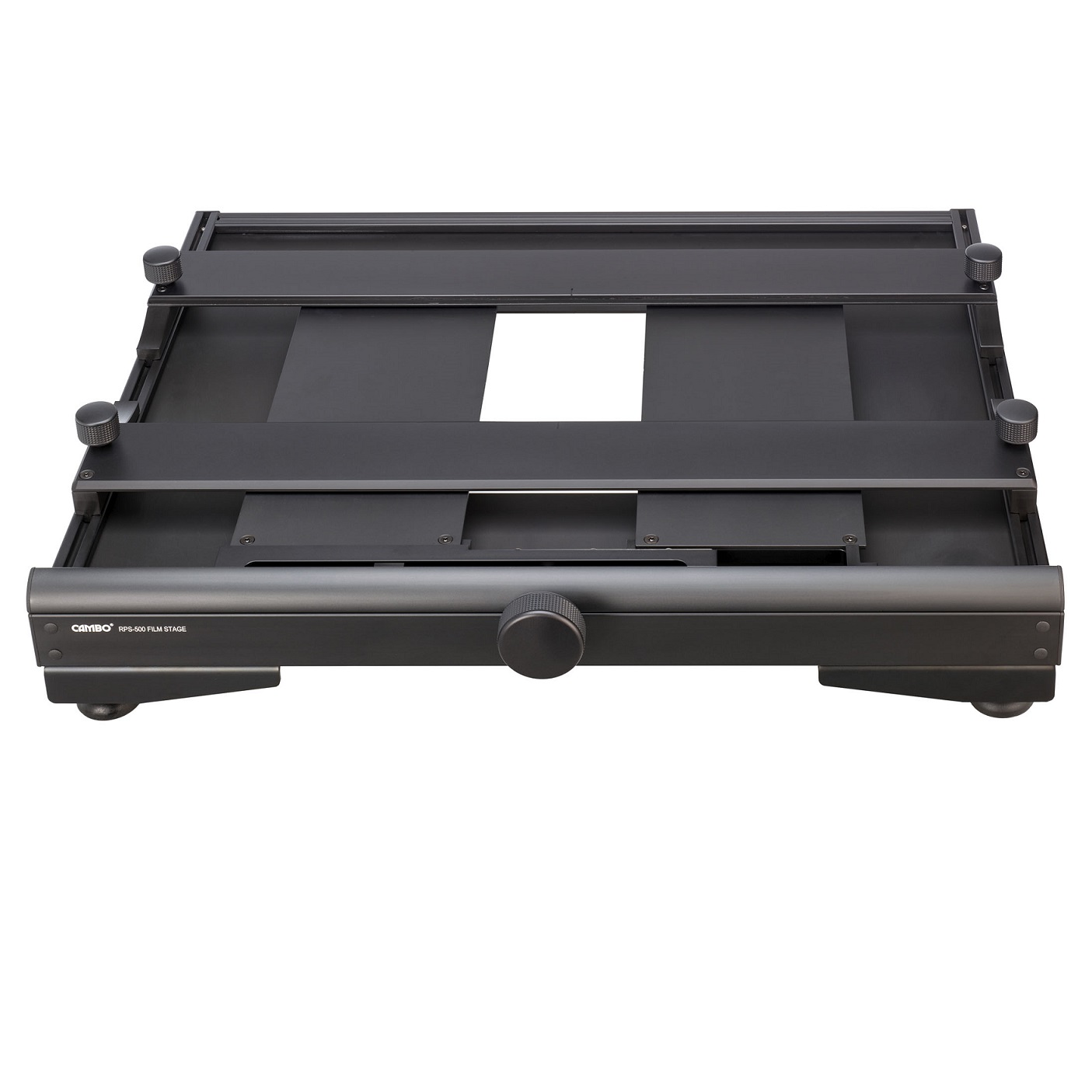

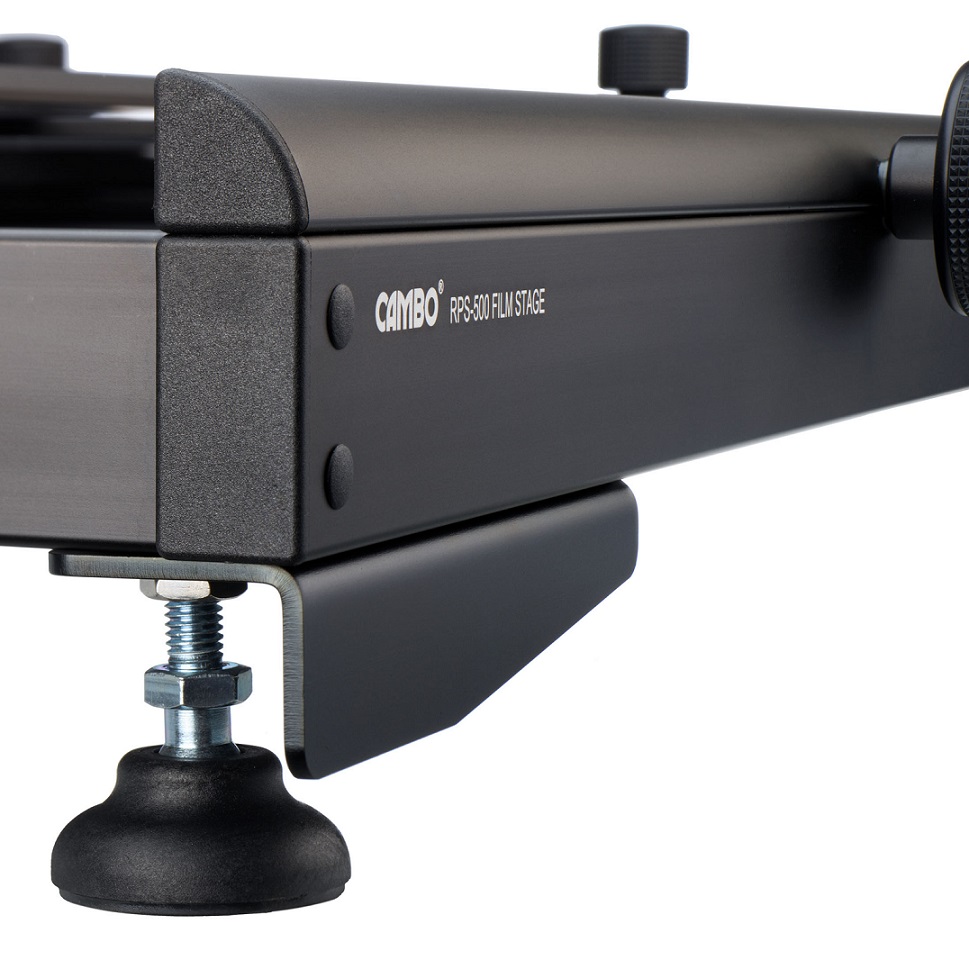

The Cambo RPS-500 Film Stage enables fast and reliable film positioning. Its stable frame is made out of aluminium and comes with four levelling feet.

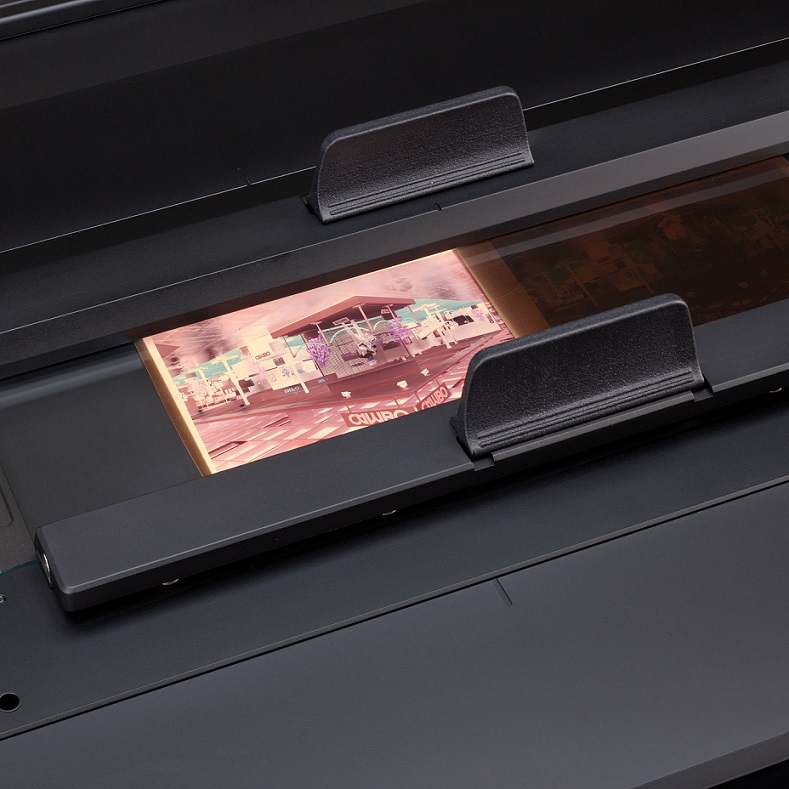

The integrated, adjustable, geared masks minimize flare and are effortlessly positioned by turning the large knob facing the operator. This ensures compatibility with Cambo own and a broad range of 3rd party Film Holders.

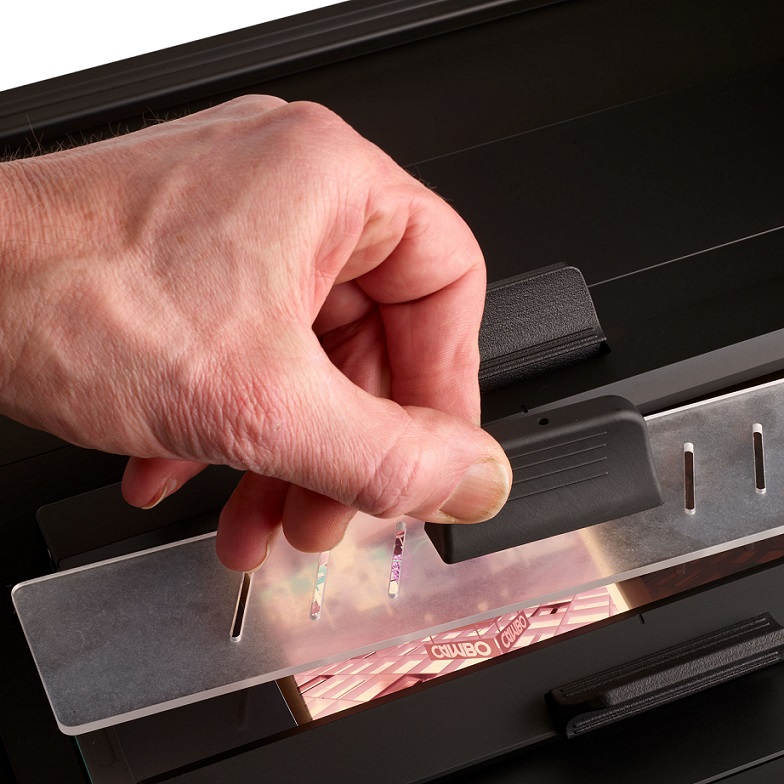

The Cambo Film Holders - ordered separately - feature an a glass bottom plate. Film strips or sheets are kept flat by tensioners on both sides. This procedure enables maximum sharpness without putting too much pressure onto the film.
Product Code:
CAMRPS500
Cambo RPS-500 Film Stage


Scanning film with a good quality camera and suitable lens ensures a much faster workflow than any flatbed, drum or virtual drum scanner can offer. Provided that the sensor and lens offer the required resolution, a camera-based solution nowadays can meet the highest FADGI and Metamorfoze standards. Positioning, masking and alignment of film strips and sheets are crucial steps of the procedure.

Enter the Cambo RPS-500 Film Stage enabling fast and reliable film positioning. Its stable frame is made out of aluminium and comes with four levelling feet. The integrated, adjustable geared masks minimize flare and are effortlessly positioned by turning the large knob facing the operator. It can be placed on top of any suitable light source. Alternatively a flat  LED panel may be attached to the dedicated brackets at the bottom of the Film Stage. Suitable for use with Cambo and 3rd party Film Holders.

Specs:

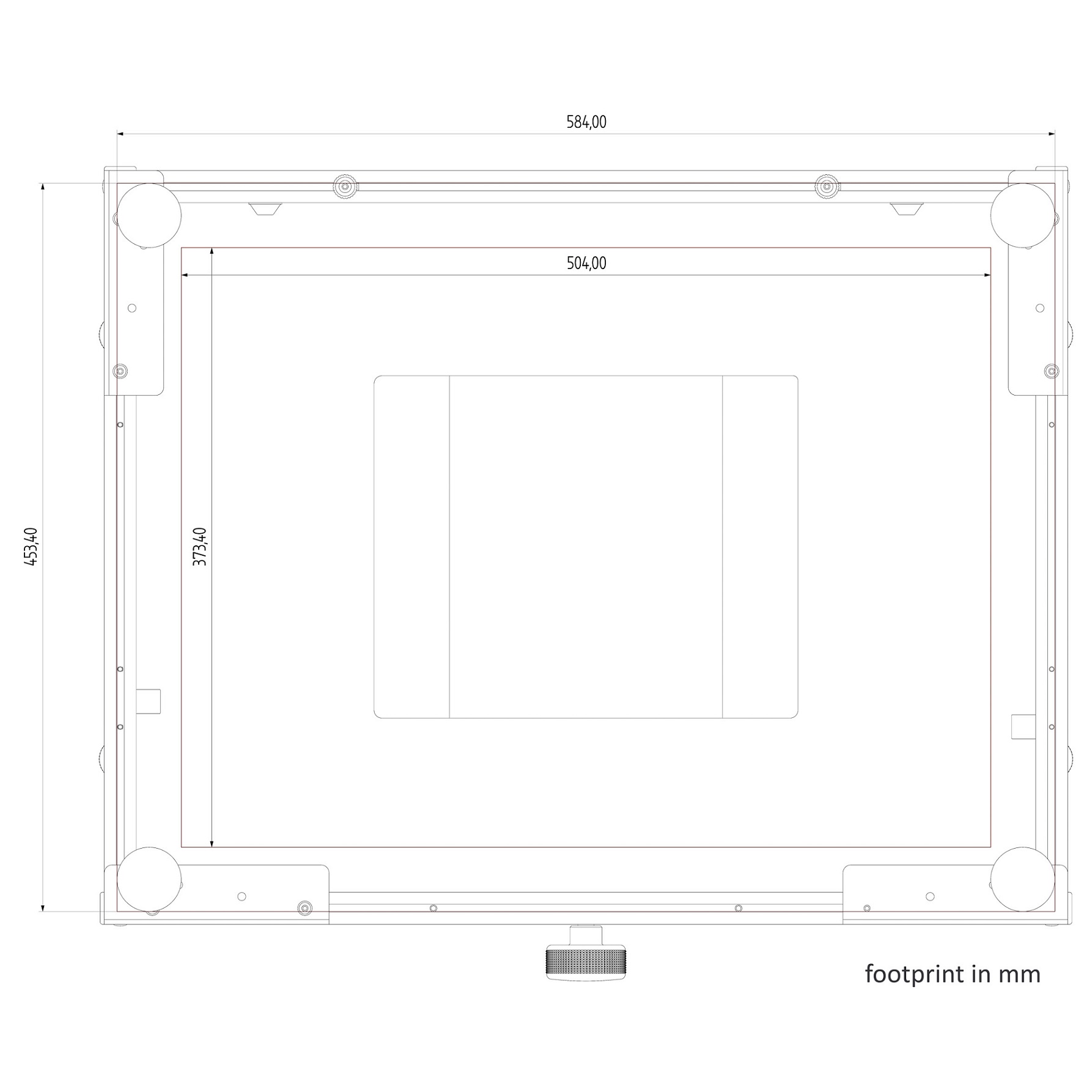

Dimensions: 60.5 x 47 x 11cm (l x w x h)

Maximum size transparency 26 x 21.5cm

Weight: 6Kg
