Fine Ratio Gear for Actus Focus AC-380 | Cambo
Added to basket!
Description:
The Cambo AC-380 and AC-381 are replacement fine geared focus assemblies for the Actus camera bodies, with the unique ability to drive the focus movement in normal ratio as well as with a fine ratio of 1:5, allowing very precise focusing in all situations. The extra focus layer knob has a larger diameter for optimal fine focus.

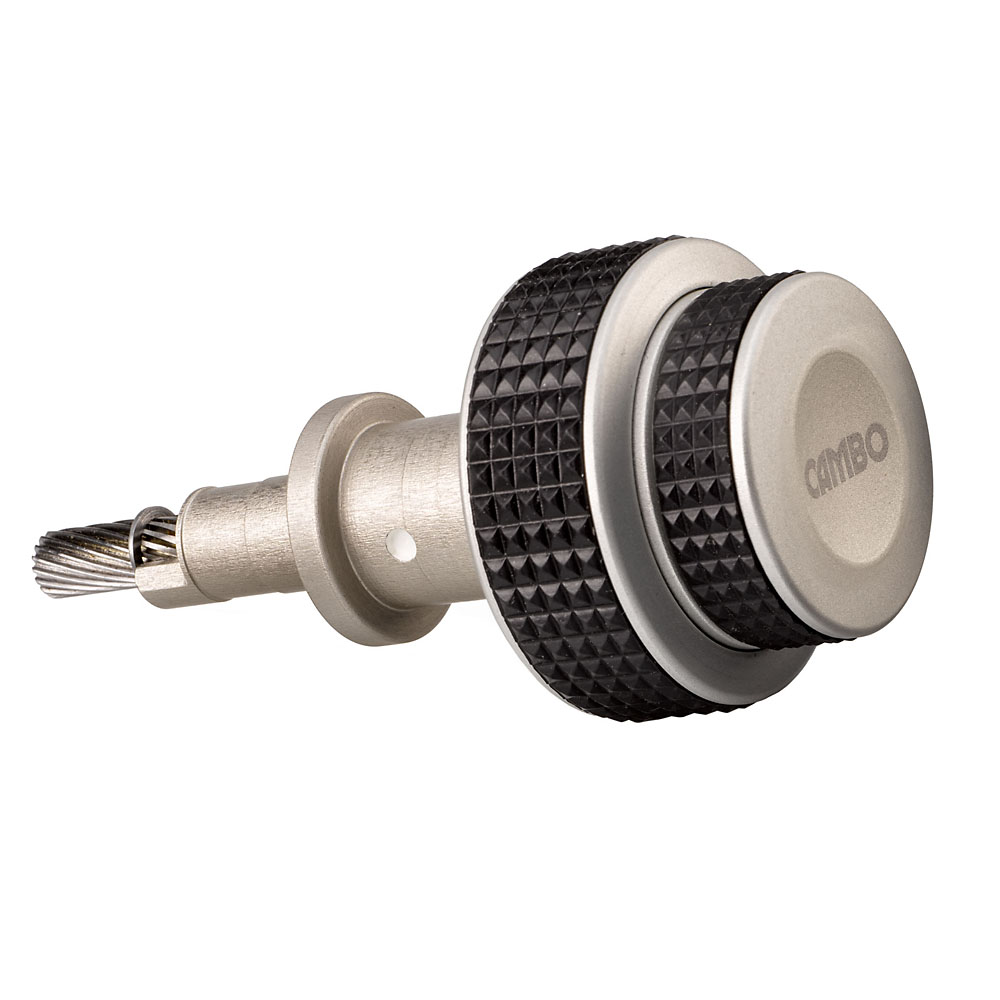

The AC-380 fine ration gear can be added to every Actus-B, Actus-G and all Actus-DB versions

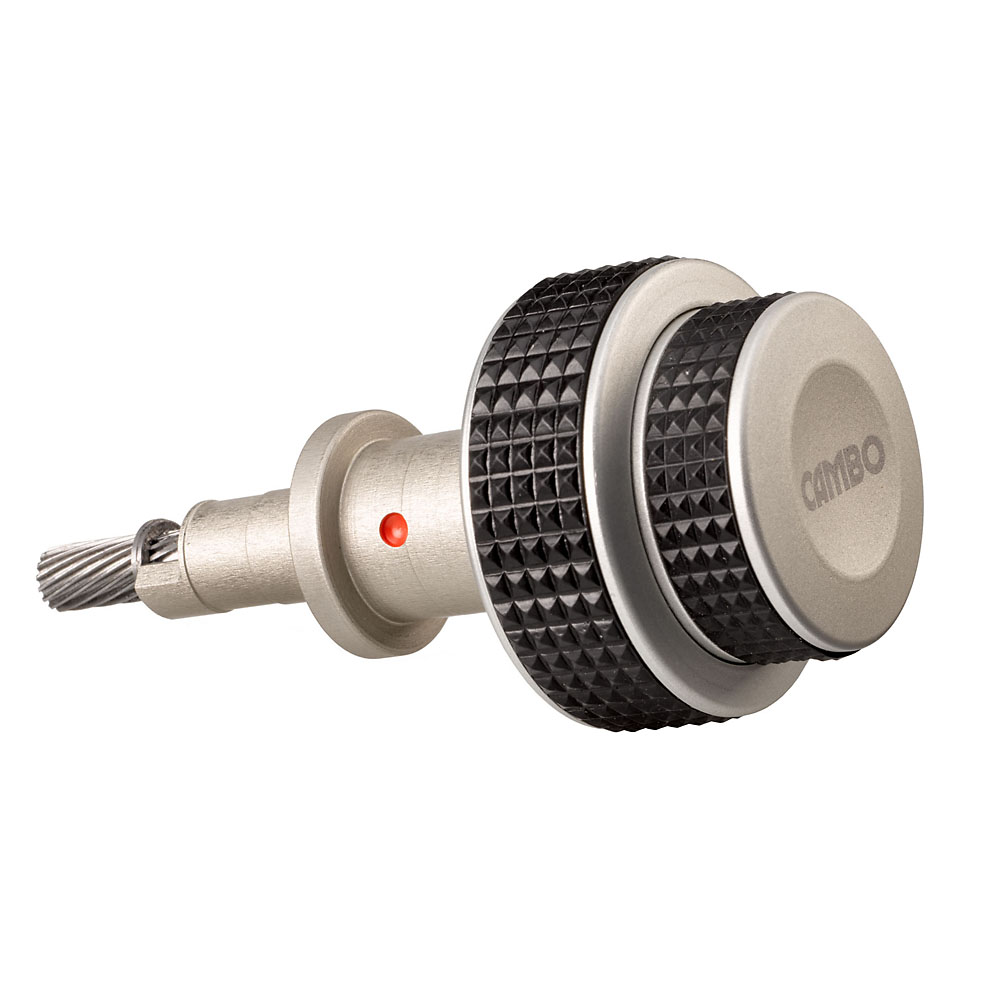

The AC-381 fine ratio tilt gear is only for the Actus G and DB
Product Code:
Fine Ratio Gear for Actus Focus AC-380 | Cambo
Options:

Further Information:

 Consists of an assembly of the drive gear, direct drive knob and a fine ratio knob.

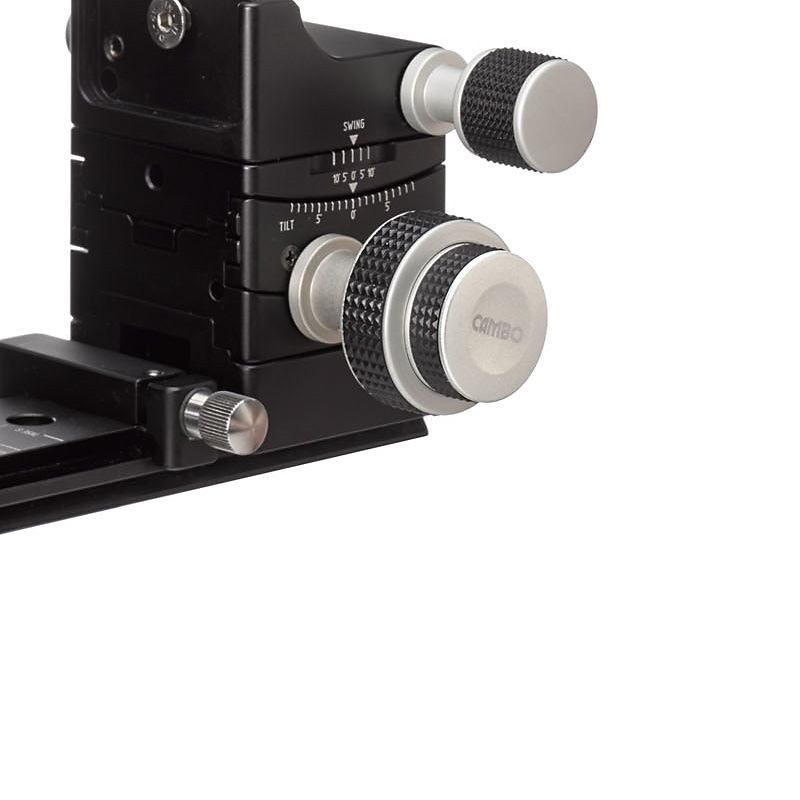

 It can also be used in the same way for replacement of the Tilt knob assembly on the front standard of the Actus-B and early Actus-DB, adding a fine ratio tilt functionality.

Specs:

  • Additional weight: 26 gram after exchange
  • Additional width:  10 mm after exchange
  • Direct drive knob diameter: 32 mm
  • Fine ratio gear knob diameter: 25 mm
  • Package includes drive assembly AC-380 or AC-381, 1 hex key, 1 instruction manual.

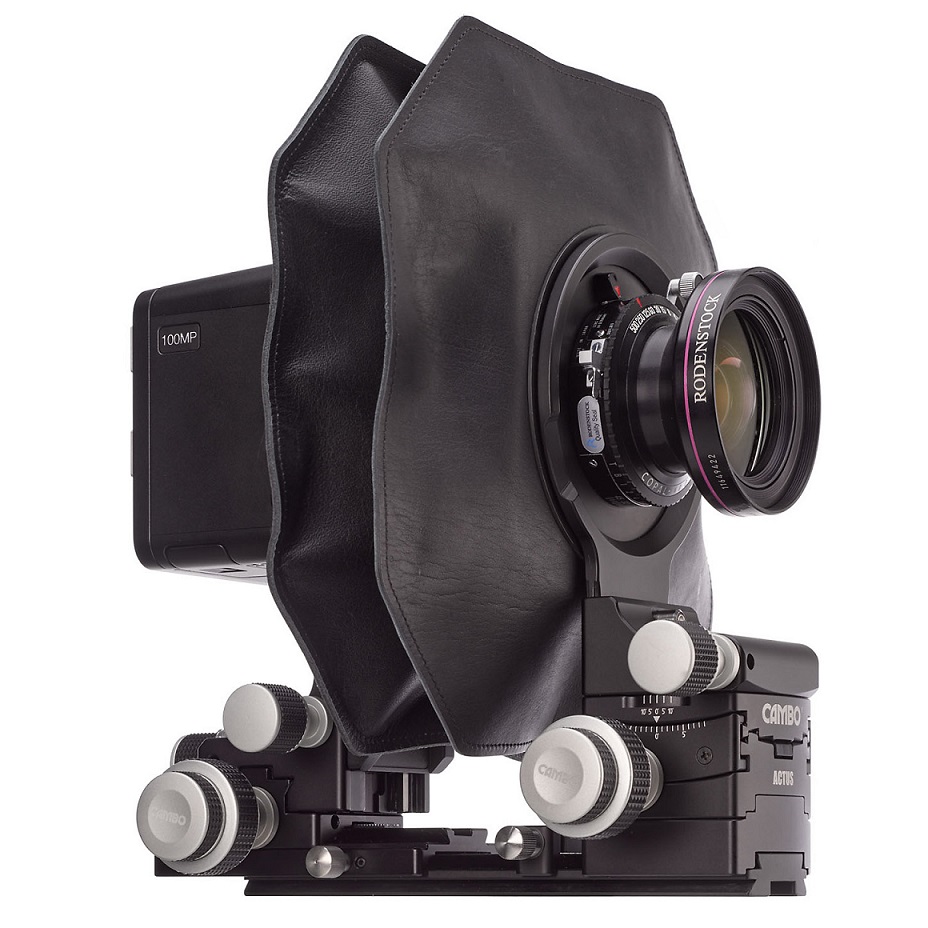

Compatibility on REAR standard:

Actus-B (including B2, B4, B6, B8)

Actus-DB and Actus-DB2

Actus-G (including Actus-GFX, XCD)



Compatibility on FRONT standard:

Actus-B (including B2, B4, B6, B8)

Actus-DB early versions

AC-381 is required for Actus-G and Actus-DB2
