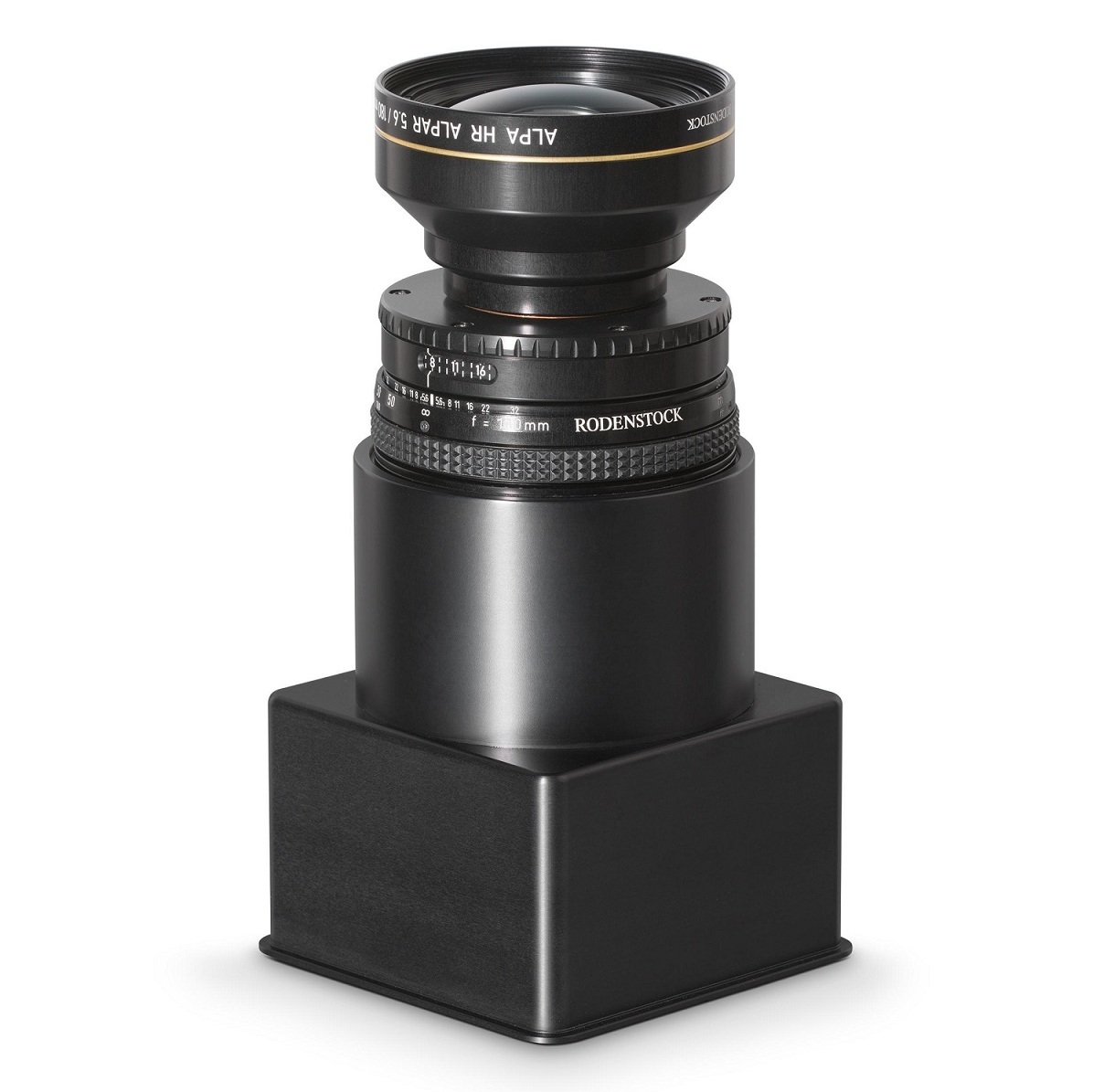

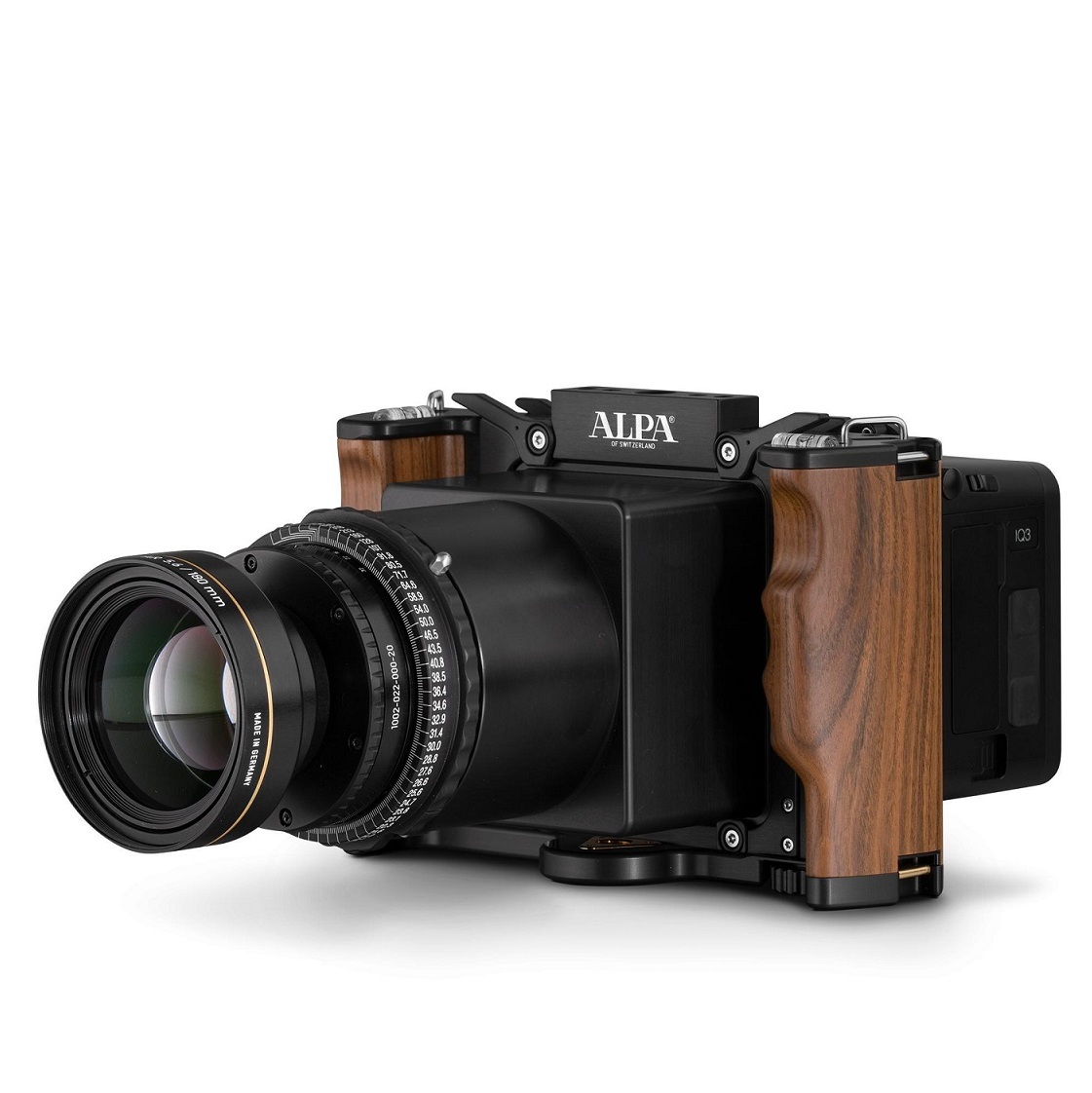

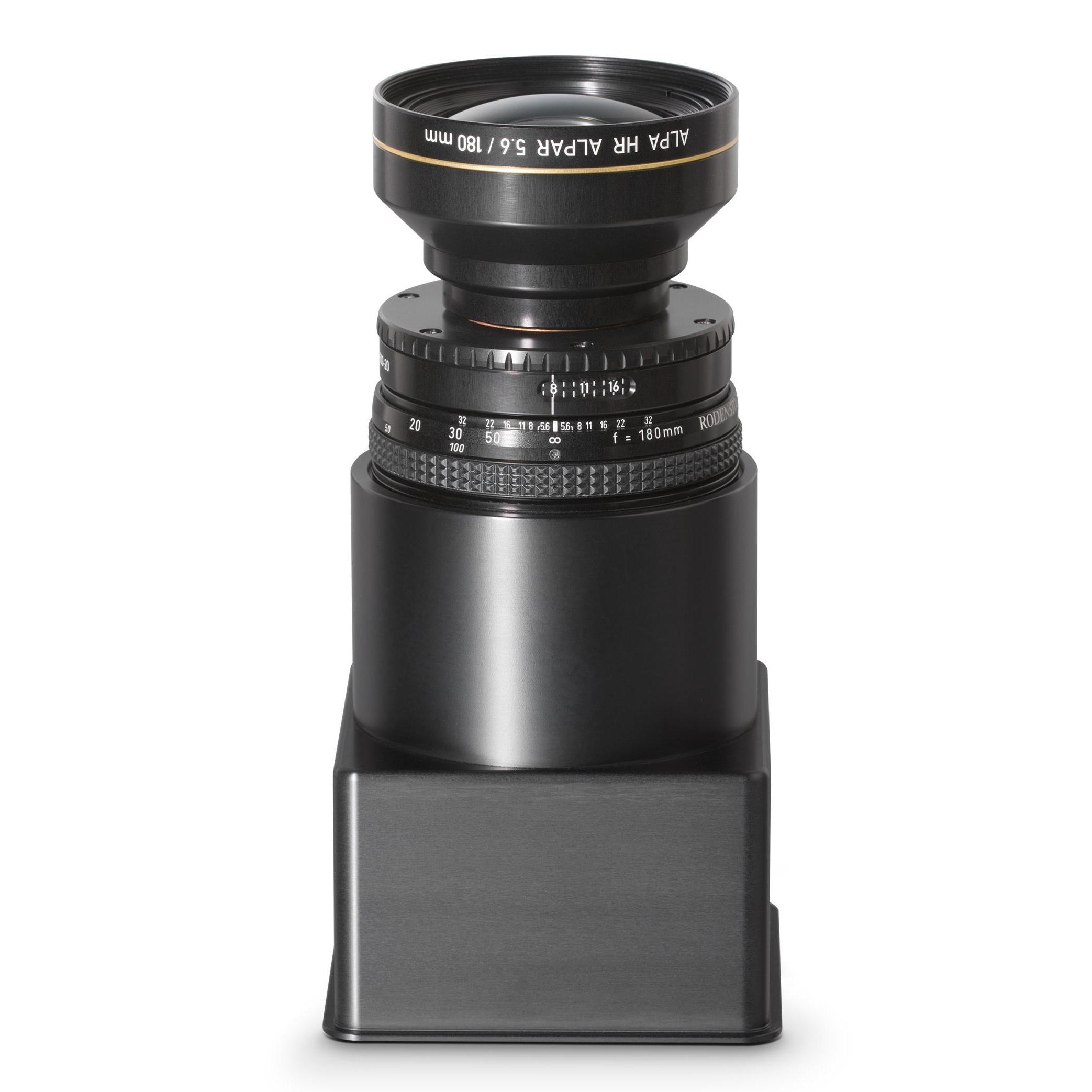

ALPA HR Alpar 5.6/180 mm | Aperture Stop Unit (AU)
Added to basket!
Description:
The HR ALPAR 180mm rounds off the ALPA lens portfolio. Since the use of long focal lengths usually leads to very low camera inclinations, its image circle of 80mm in practice is easy enough, especially as the resolution remains almost constant over the entire image field.
Product Code:
A160118181
ALPA HR Alpar 5.6/180 mm | Aperture Stop Unit (AU)
Options:

Focal Length: 180 mm
Effective: 179.55 mm

Equivalent @ 33x44 = 140 mm Aequivalent @ 40x54 = 115 mm
v/h @ 40 x 54: 9 mm / 8 mm
v/h @ 33 x 44: 17 mm / 14 mm
Image Circle: 80 mm
Image Angle: 25°
Optimal f-Stop Range: f5.6 - f8.0
Focusing Range: ∞ – 4.00 m/ 13.0 ft

Filter Size: M 67 x 0.75

With a weight of less than one kilogram , the HR ALPAR 180mm

remains easy to transport and, with an aperture of 5.6,

delivers perfect performance even with an open aperture.

Available Short Barrel 34 or 51 and will require the 34mm or 51mm spacer to reach infinity.
