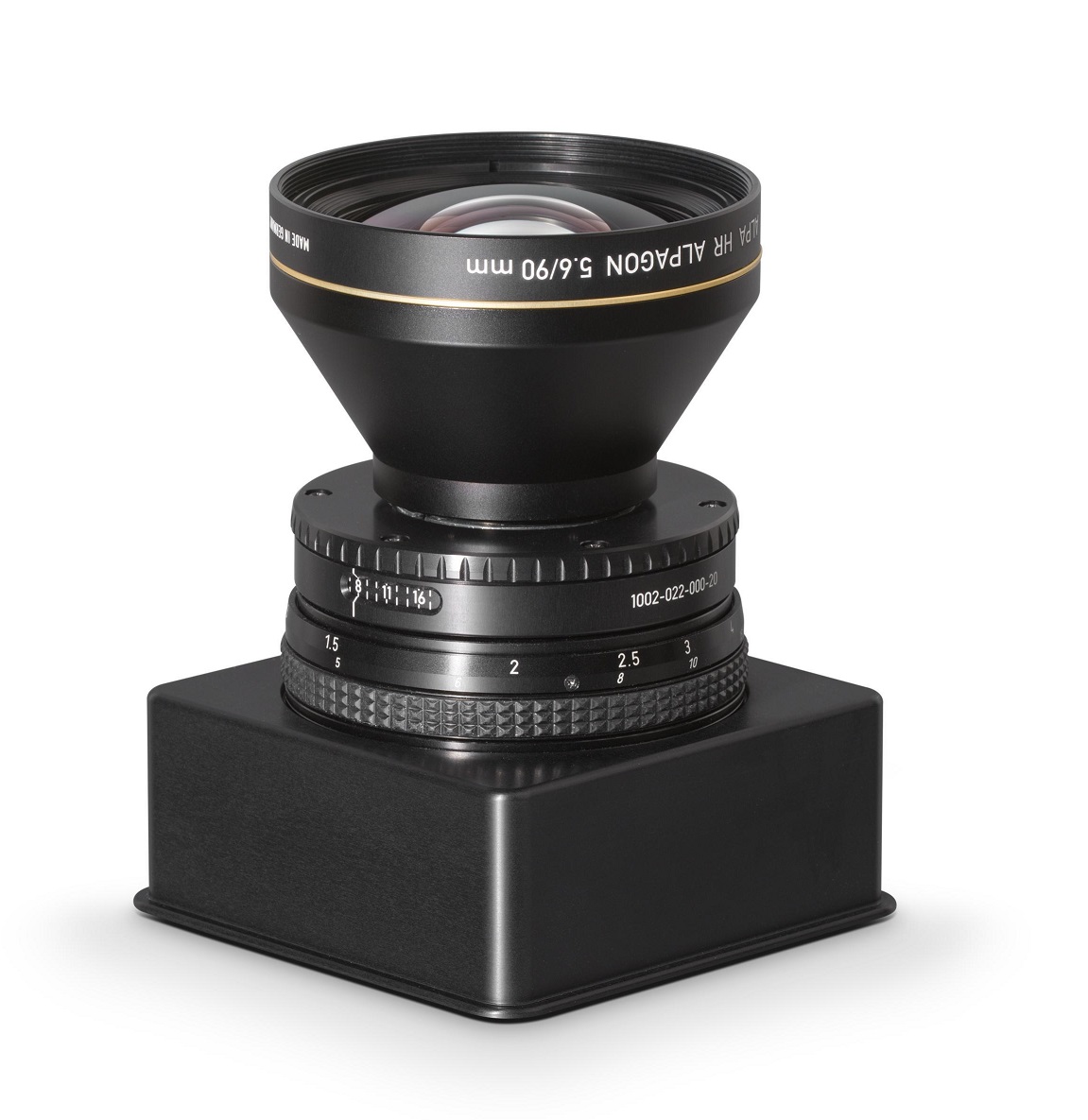

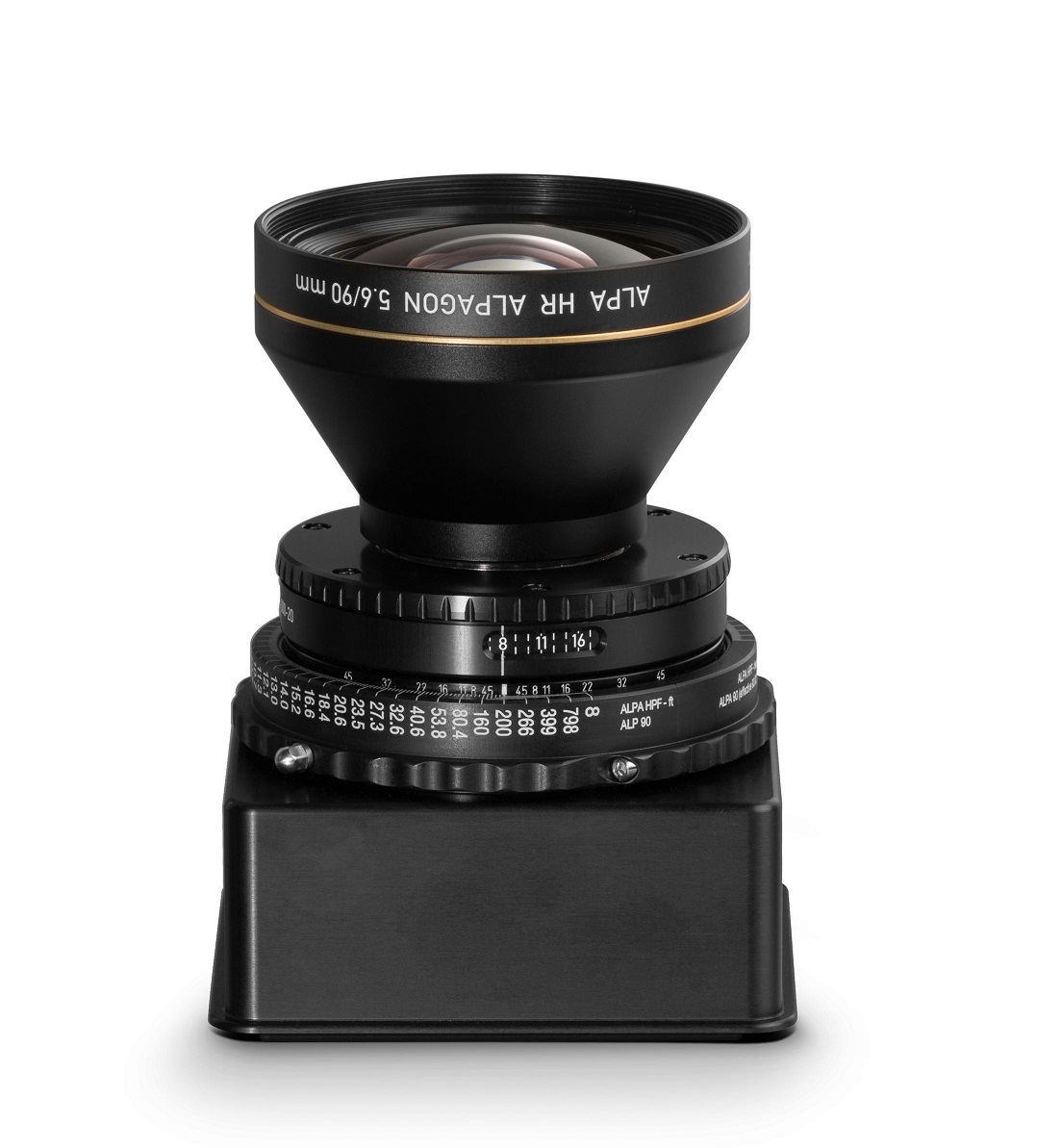

ALPA HR Alpagon 5.6/90 mm, SB34 | Aperture Stop Unit (AU)
Added to basket!
Description:
ALPA HR ALPAGON 90mm with its large 120mm image circle allows for enormous flexibility, especially in the perspective correction. The perfect sharpness of the 90s makes it the perfect choice for all photographers, whose pictures have to function perfectly, as different sizes on exhibitions or billboards.
Product Code:
A160118090
ALPA HR Alpagon 5.6/90 mm, SB34 | Aperture Stop Unit (AU)
SPECIFICATION

Focal Length 90mm : Effective 90mm
Rodenstock / ALPA HR Alpagon 5.6/90 mm, SB34, in Aperture Unit
Equivalent @ 33x44 = 70 mm Equivalent @ 40x54 = 58 mm
v/h @ 40 x 54: 33 mm / 29 mm
v/h @ 33 x 44: 39 mm / 35 mm
Image Circle: 120 mm
Image Angle: 67°
Optimal f-Stop Range: f5.6 - f11.0
Focusing Range: ∞ – 1.30 m/ 5.0 ft
Lens Shades : F0 / F1
Filter Size: M 72 x 1.00

More Information

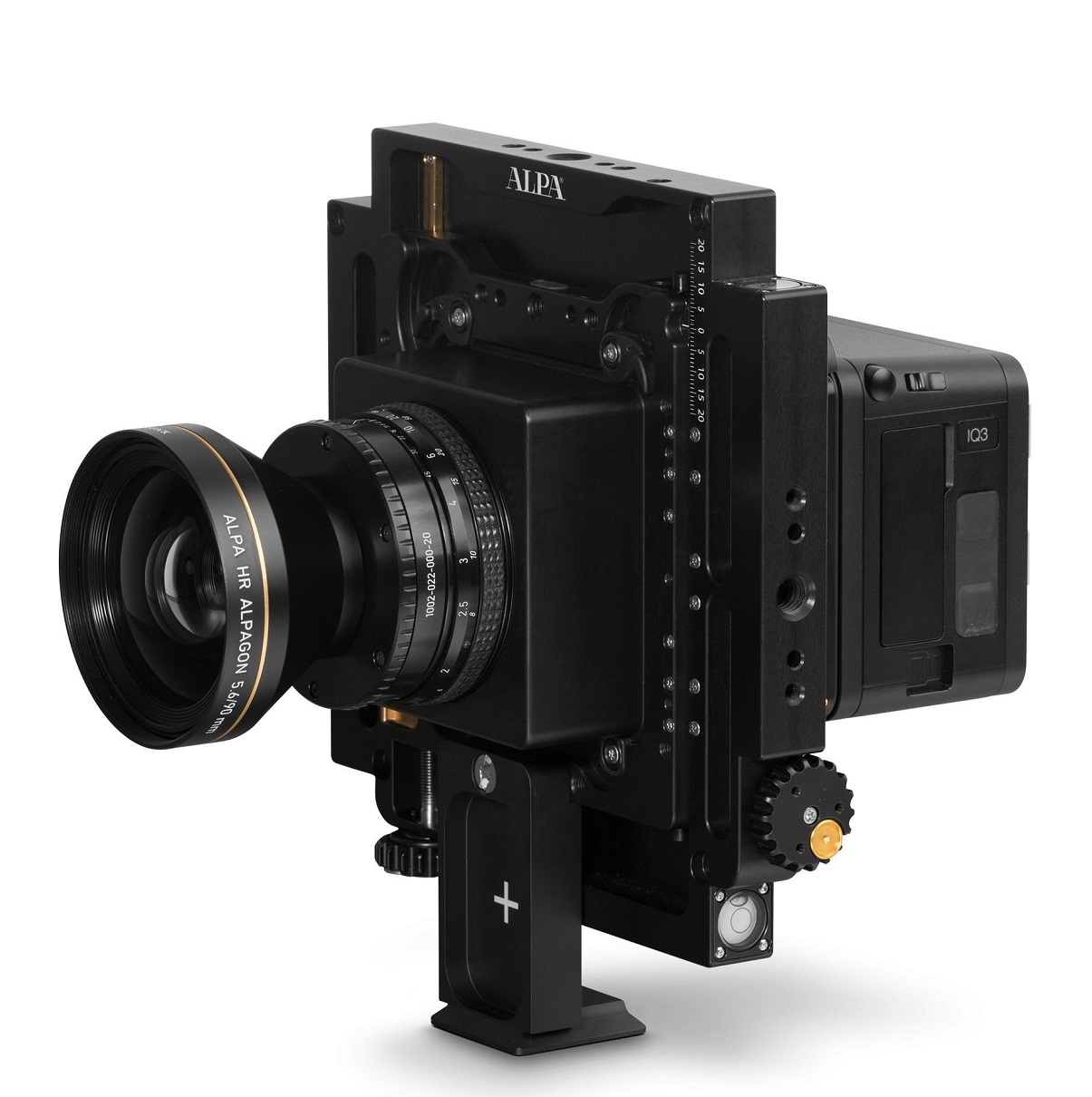

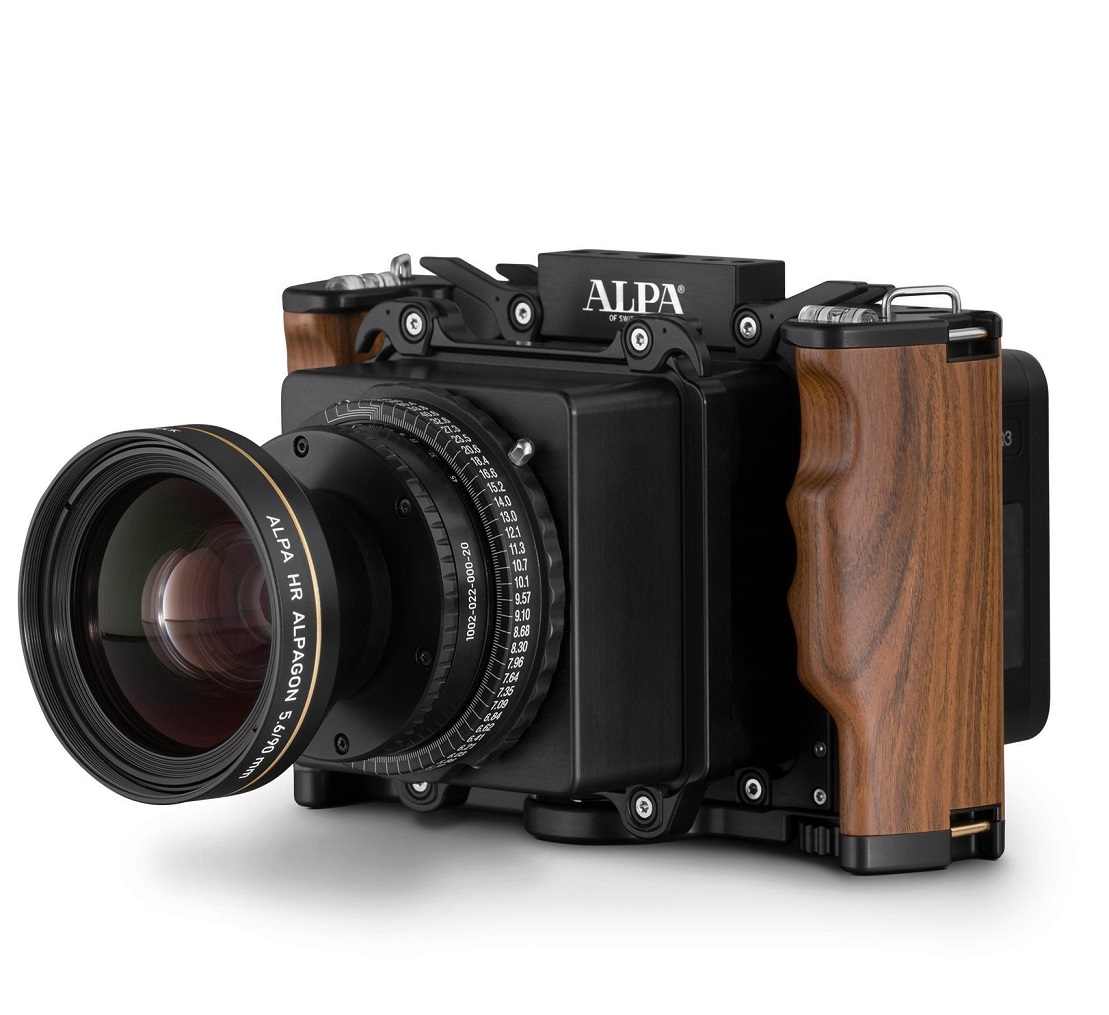

Please Note: The product images are sample images and often show the lens

with an ALPA HPF ring (High Precision Focusing). This HPF ring is not included in the scope of delivery of the lens. However, ALPA recommends the use of an HPF ring for optimum handling

.
