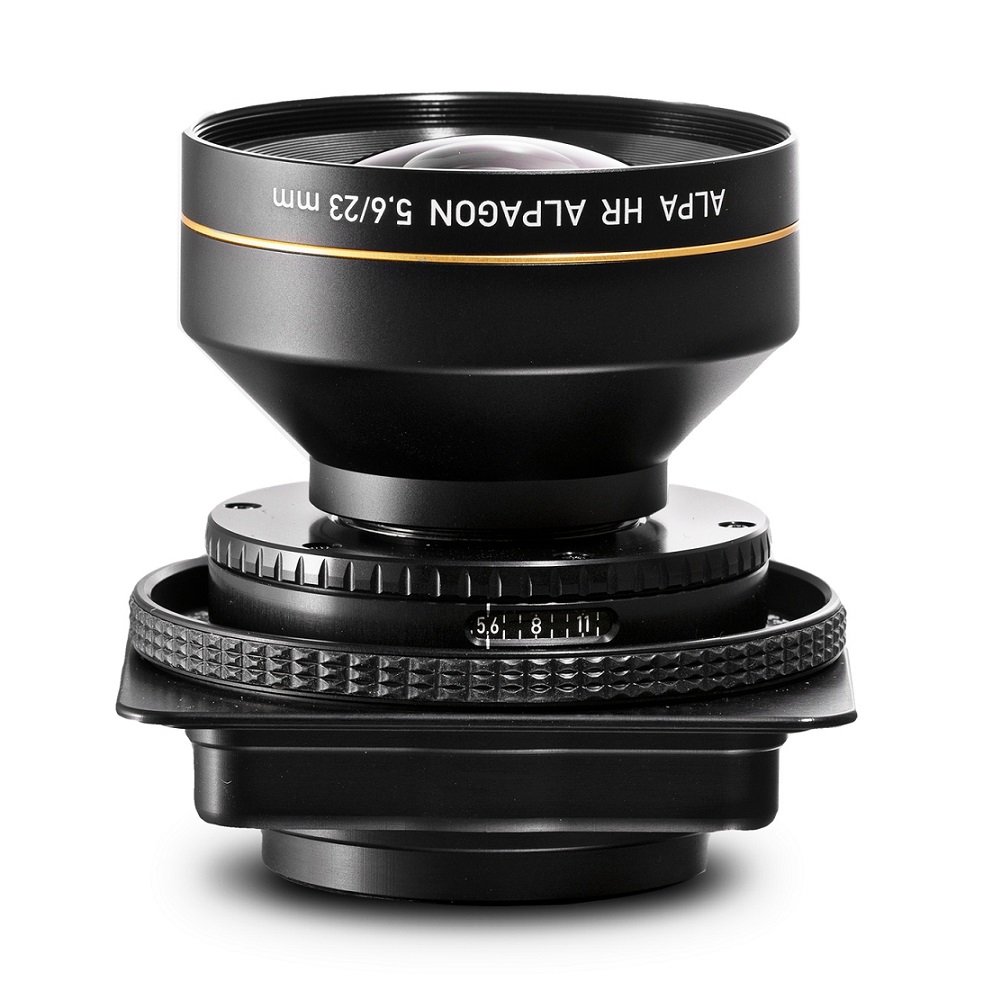

ALPA HR Alpagon 5.6/23mm, SB17 | Aperture Stop (AU)
Added to basket!
Description:
The HR ALPAGON 23mm is the ideal lens, especially for spectacular landscapes and narrow interior spaces. The ALPA ALPAGON 5.6/23 mm is now officially available as a Short Barrel 17 lens with an aperture mount and on a recessed panel.
With ALPA HPF ring with scales in meter and feet.
The lens cannot be used with the ALPA 12 FPS.
Product Code:
A160118024
ALPA HR Alpagon 5.6/23mm, SB17 | Aperture Stop (AU)



Please note: This version includes a special HPF ring with markings in meters and feet. If a short barrel lens is attached to an ALPA body without an appropriate adapter, mechanical damage to the rear lens element and the camera is possible. The lens cannot be used with the ALPA 12 FPS.



Specifications:

  • Focal Length: 23mm
  • Image Circle: 70mm
  • Image Angle: 112˚
  • Focusing Range: ∞ -0.25m/0.8 ft
  • Optimal f-Stop Range: f5.6 - f8.0
  • Equivalent @ 33x44= 18mm
  • Equivalent @ 40x54= 15mm
  • Movements: v/h @ 40x54: 2mm / 2mm
  • Movements: v/h @ 33x44: 11mm / 9mm
  • Filter Thread: 72mm
  • Lens shade: Type B0/B1
  • ALPA code number: 160.118.024
