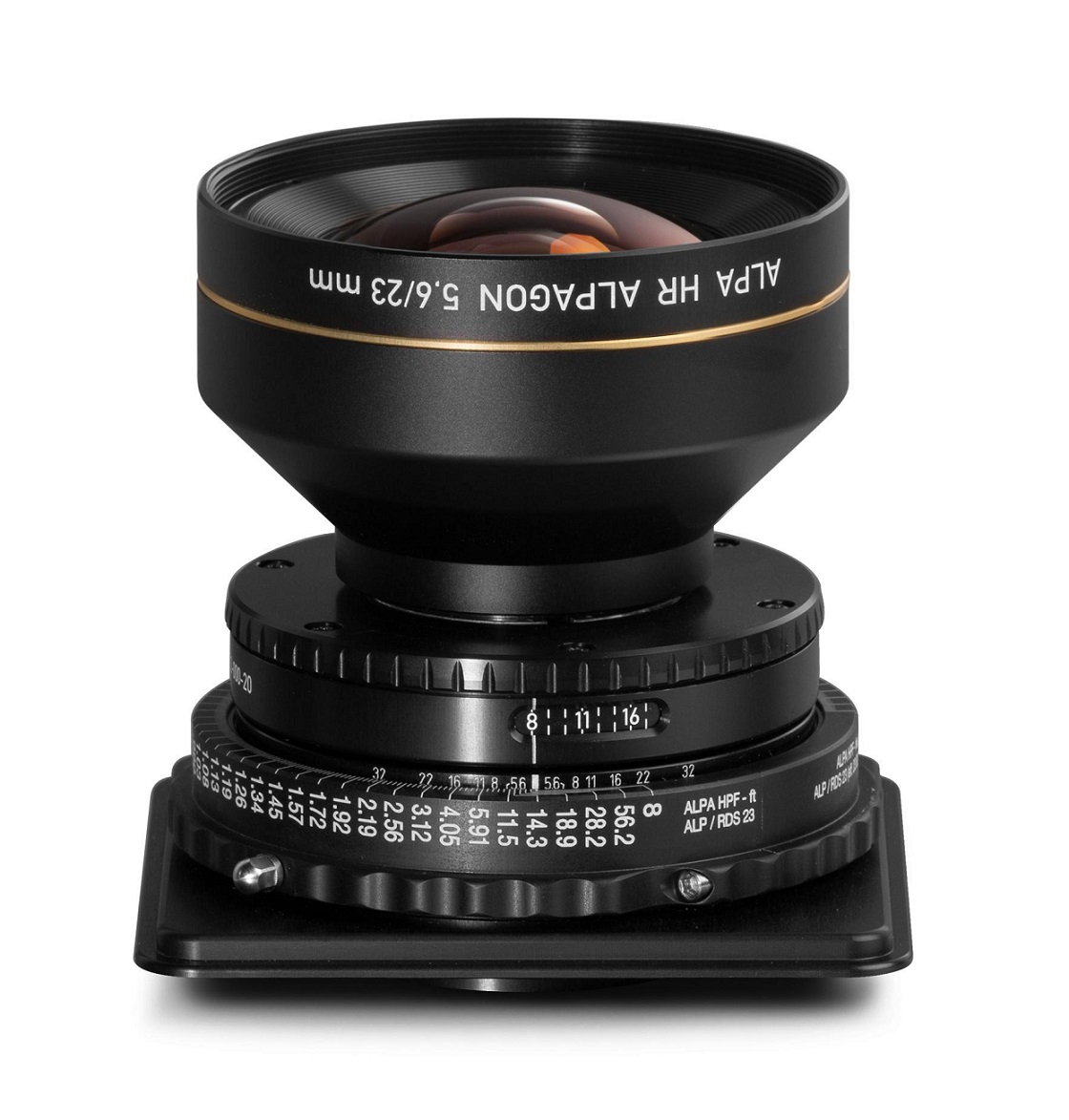

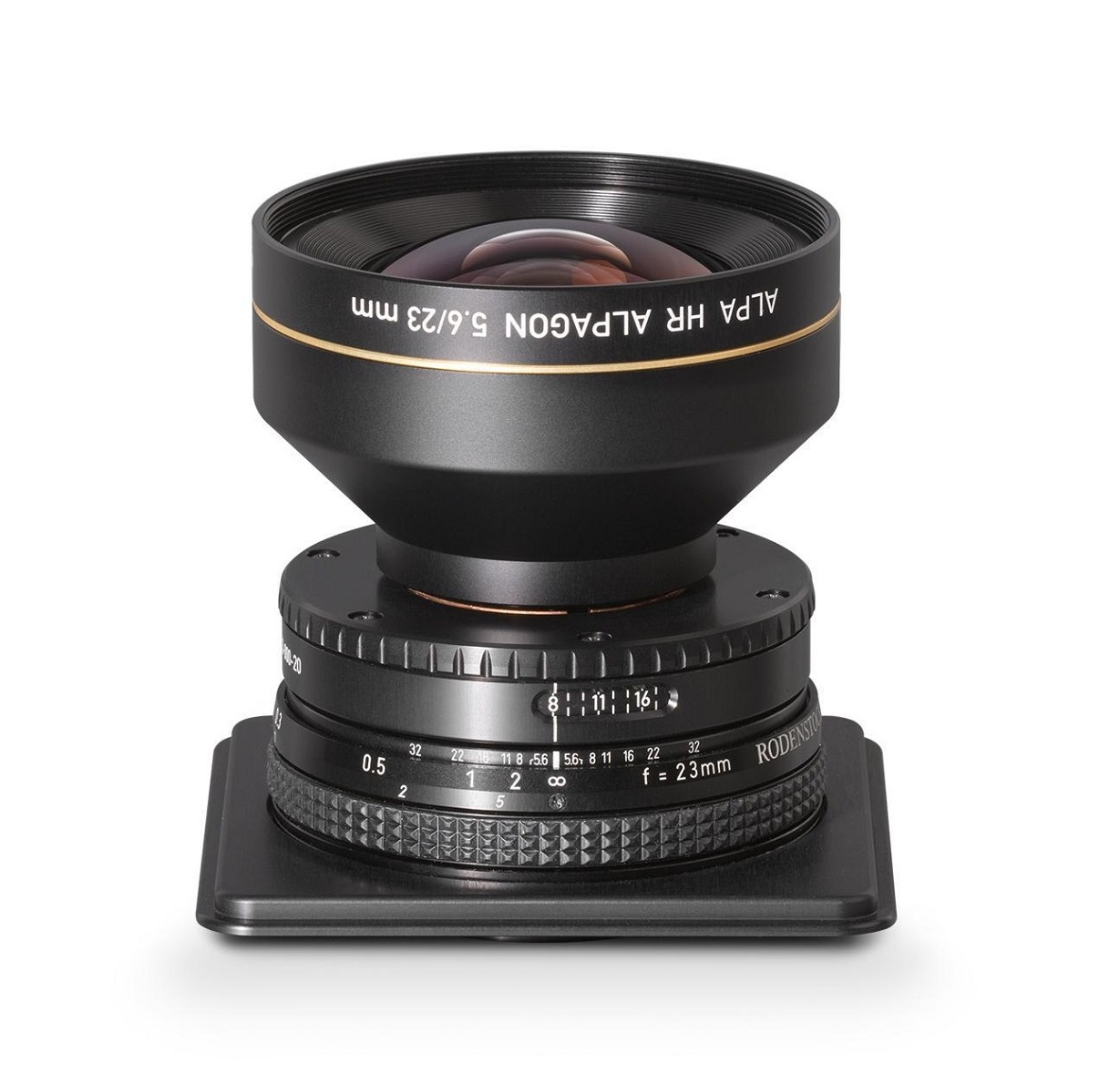

ALPA HR Alpagon 5.6/23 mm, LB | Aperture Stop Unit (AU)
Added to basket!
Description:
The ALPA HR ALPAGON 23mm is the ideal lens, especially for spectacular landscapes and narrow interior spaces. The HR ALPAGON 23mm is the first choice for those photographers who need to cover as wide an angle as possible with a single "single shot": On a 40x54mm sensor (like the IQ4150 from Phase One or the H6d-100c from Hasselblad), the diagonal field of view is approximately equivalent to a 15mm "full-frame" lens (35mm full frame).
Product Code:
A160118023
ALPA HR Alpagon 5.6/23 mm, LB | Aperture Stop Unit (AU)

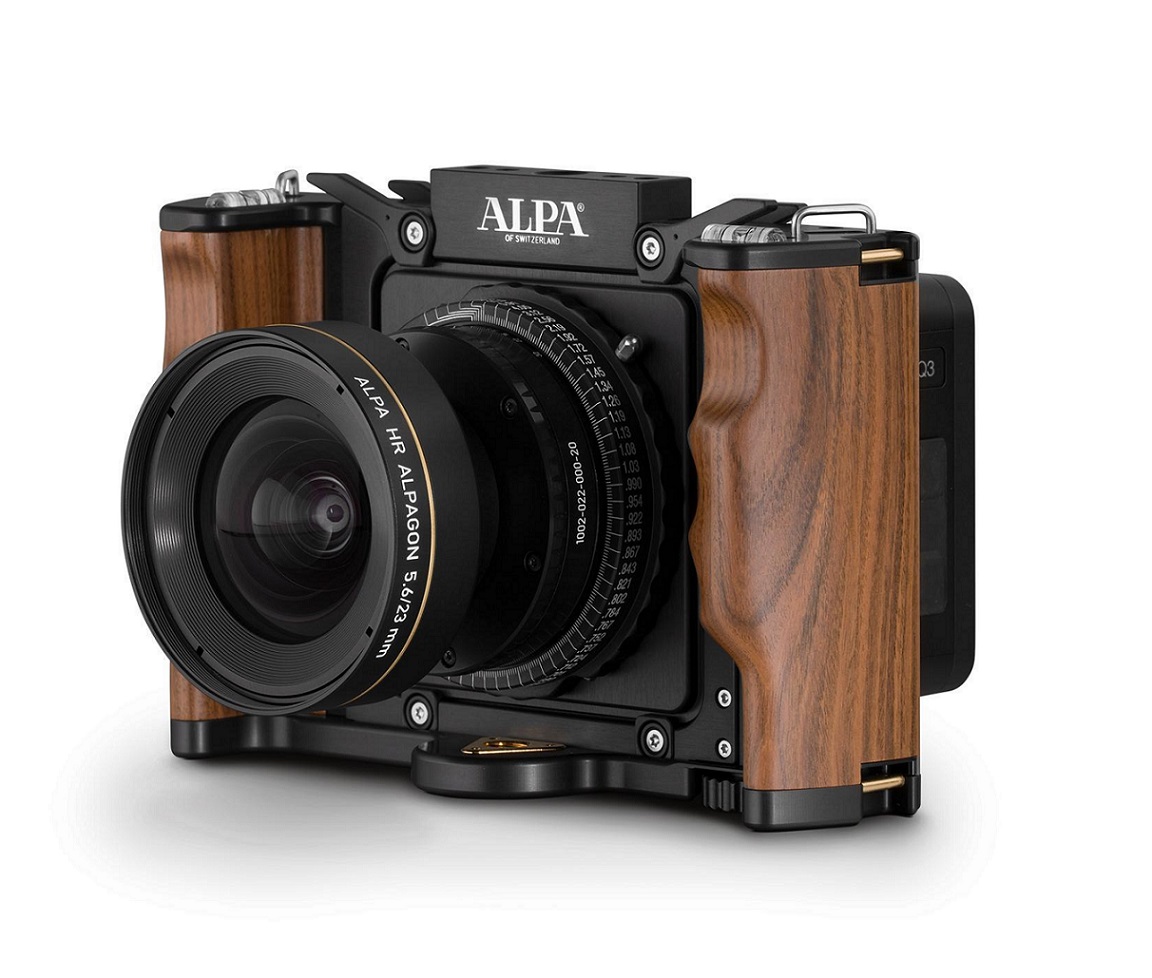

Please Note: The product images are sample images and often show the lens with an ALPA HPF ring (High Precision Focusing). This HPF ring is not included in the scope of delivery of the lens. However, ALPA recommends the use of an HPF ring for optimum handling.

Specifications:

  • Focal Length: 23mm
  • Maximum Aperture: f5.6
  • Minimum Aperture: f22
  • Image Angle: 112°
  • Image circle: 70mm
  • Filters Thread: 72mm
  • Diametre: 74.9mm
  • Length: 98.7mm
  • Weight: 580g
  • Distance settings: 0.25m-infinity
