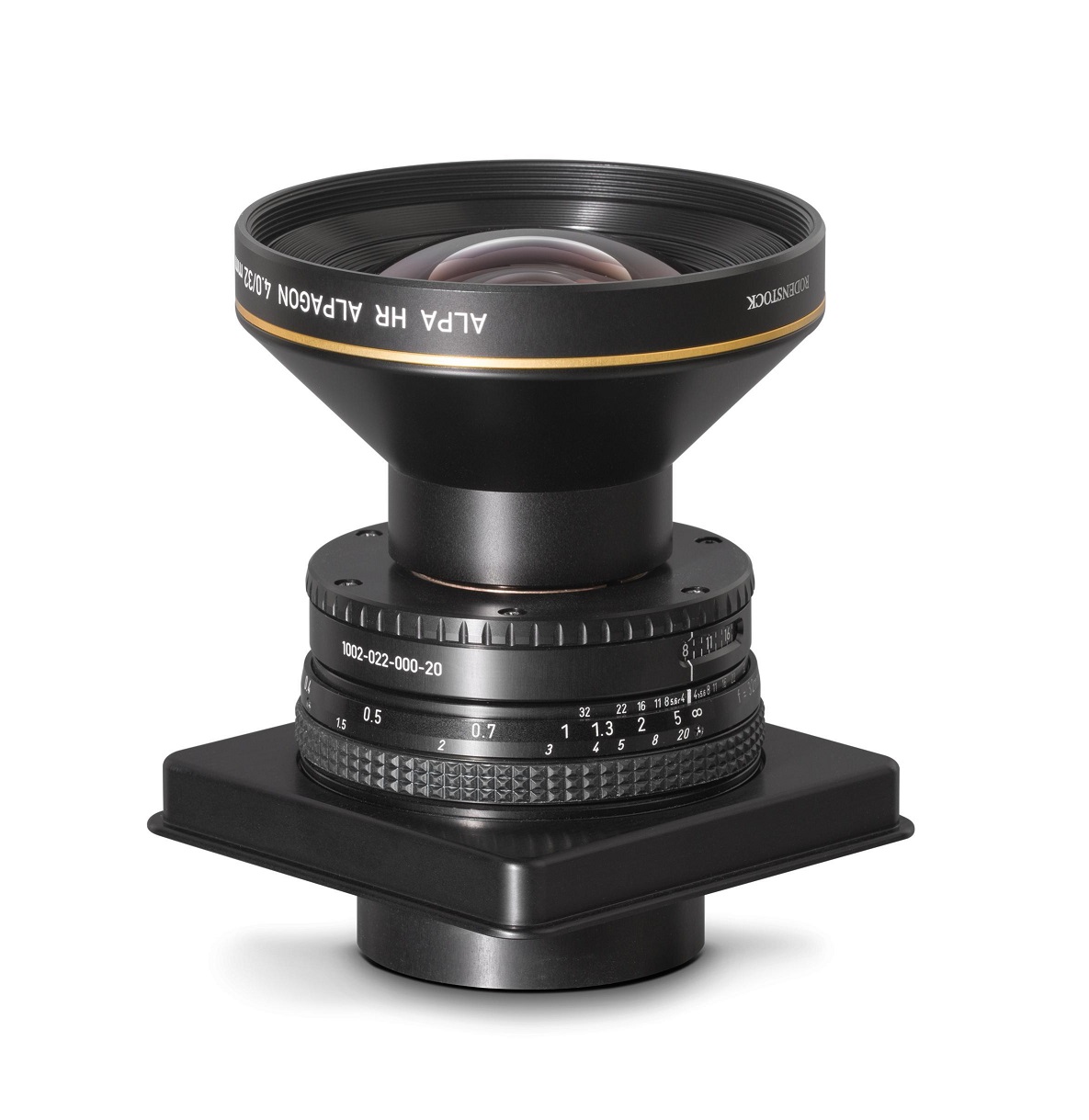

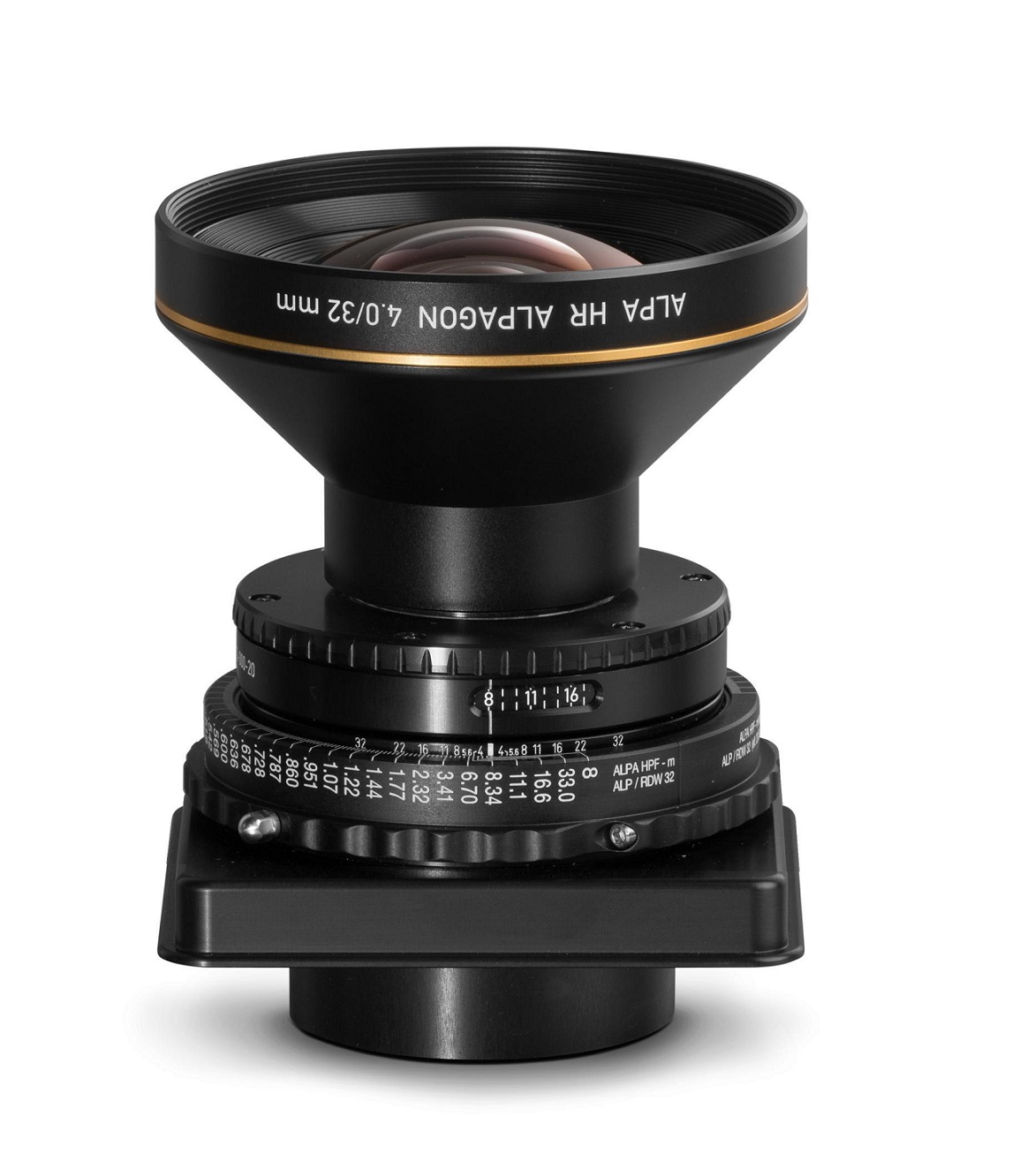

ALPA HR Alpagon 4.0/32 mm, SB17 | Aperture Stop Unit (AU)
Added to basket!
Description:
The ALPA HR ALPAGON 32mm is the reference for architectural photography. It is the widest of the Rodenstock lenses offering a full 90mm image circle.
Product Code:
A160118033
ALPA HR Alpagon 4.0/32 mm, SB17 | Aperture Stop Unit (AU)

More Information:

For many reasons, the ALPAGON 32mm HR comes with a real exceptional position in the ALPA lens portfolio.

Together with the HR ALPAGON 50mm and HR ALPAGON 90mm, it forms the "Holy Trinity" of the ALPA photographers. Its large 90mm image circle allows not only full adjustment ranges for perspective correction but also offer enormous potential for the stitching of single images: Our HR ALPAGON 32mm almost reaches the angle of view of the 23mm. Besides, the short barrel versions allow either the use of tilt/swing on a traditional ALPA or use on an ALPA 12 FPS.

Worldwide, the HR ALPAGON 32mm is the reference for architectural photographers, who appreciate it’s down to the edge of outstanding resolution. Optimized for resolution and freedom from chromatic aberration, it beautifully preserves the surface texture of facades and reproduces even the most exquisite architectural details. The radially symmetric distortion can be corrected well in post-processing (for example with the ALPA Lens Corrector).

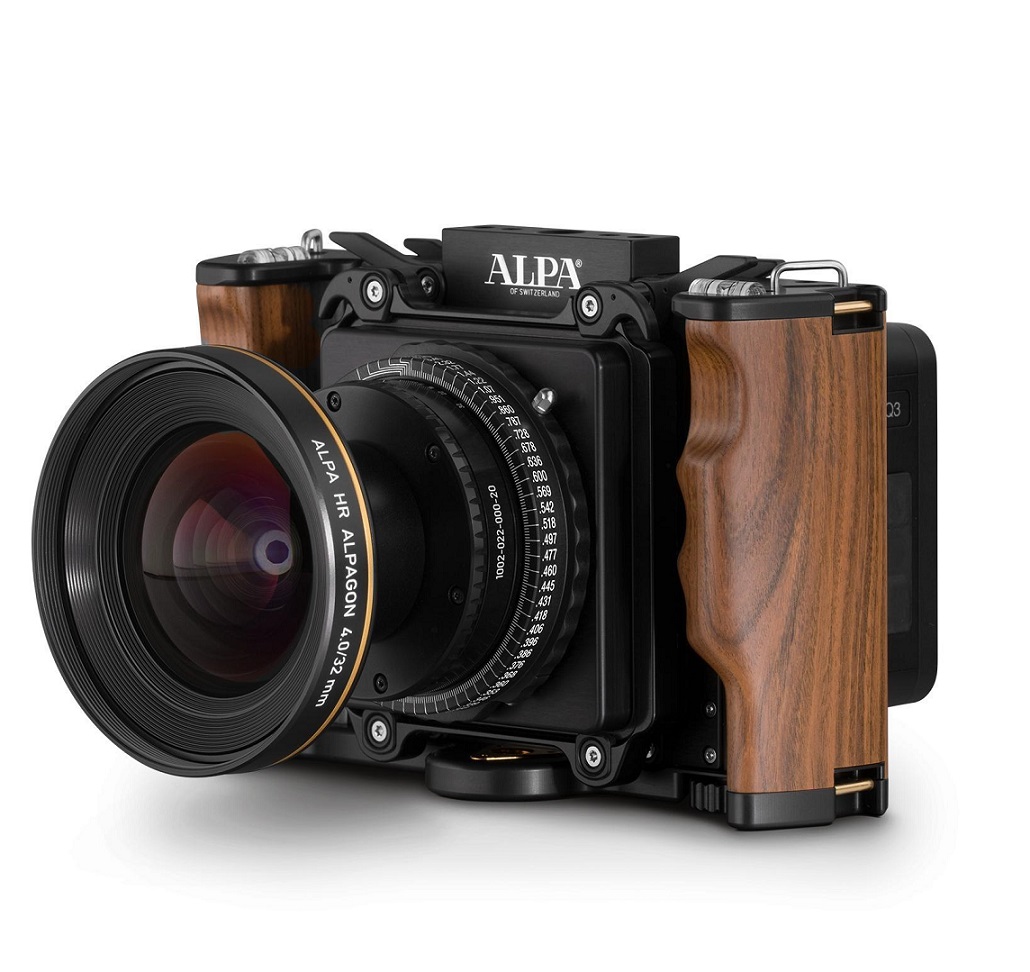

Please Note: The product images are sample images and often show the lens with an ALPA HPF ring (High Precision Focusing). This HPF ring is not included in the scope of delivery of the lens. However, ALPA recommends the use of an HPF ring for optimum handling.

This is the standard version in Short Barrel. Versions in Long Barrel or Short Barrel FPS available on special order.


SPECIFICATION


Focal Length: 32 mm
Effective: 33.09 mm
Rodenstock / ALPA HR Alpagon 4.0/32 mm, SB17, in Aperture Unit
Equivalent @ 33x44 = 26 mm Equivalent @ 40x54 = 21 mm
v/h @ 40 x 54: 16 mm / 13 mm
v/h @ 33 x 44: 23 mm / 20 mm
Image Circle: 90 mm
Image Angle: 107°
Optimal f-Stop Range: f5.6 - f8.0
Focusing Range: ∞ – 0.40 m/ 1.2 ft
Lens Shades Type: B0 / B1
Center Filter: Rodenstock specific
Filter Size: M 86 x 1.00
